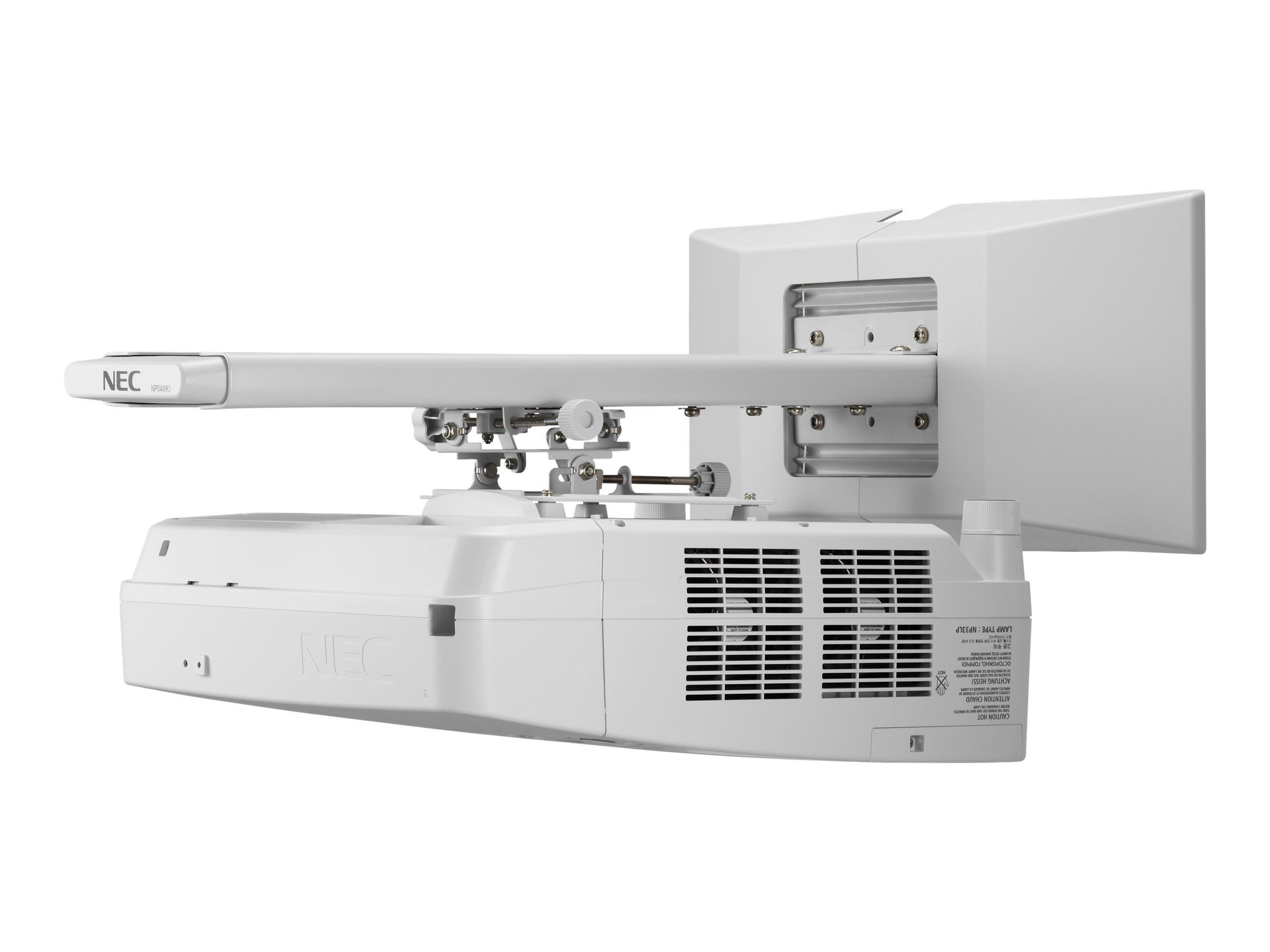

NEC UM301X - LCD projector - ultra short-throw - LAN - with NEC NP04WK wall mounting kit
- Product code:
- P219017P | 60003841
- Product Data Sheet
- User Manual
- NEC UM301X
- LCD projector
- 3000 ANSI lumens
- XGA (1024 x 768)
NEC UM301X - LCD projector - ultra short-throw - LAN - with NEC NP04WK wall mounting kit
Sorry, this item is currently out of stock.
Sorry, this item is currently out of stock.
Don't worry, we've got loads of great alternatives! Explore our full range of available Projectors.
Business Price Promise
Buy from us safe in the knowledge you’ve paid a great price.
If you find Argos, John Lewis, AO.com or eBuyer.com has the same product at a cheaper price, including voucher offers, we’ll match it – even up to 14 days after purchase.
Learn more
Product information
NEC UM301X - LCD projector - 3000 ANSI lumens - XGA (1024 x 768) - 4:3 - ultra short-throw fixed lens - LAN - with NEC NP04WK wall mounting kit
Specifications
Basic Specifications
- Manufacturer's Part Number
- 60003841
- EAN
- 5028695611429
- Power Consumption Operational
- 297 watt
- Video Input
- RGB, composite video, component video (NTSC, SECAM, PAL, PAL-N, PAL-M, NTSC 4.43, PAL 60, NTSC 3.58), LAN
- Brightness
- 3000 ANSI lumens
- Power
- AC 120/230 V (50/60 Hz)
- Contrast Ratio
- 4000:1
- Model
- NEC UM301X
- Built-in Devices
- Speaker
- Environmental Standards
- TCO Certified
- Video Modes
- 480p, 720p, 480i, 576i, 576p, 1080/60i, 1080/50i
- Native Aspect Ratio
- 4:3
- Device Type
- LCD projector
- Lens
- Ultra short-throw fixed lens
- Dimensions (WxDxH)
- 37.8 cm x 42.8 cm x 11.2 cm
- Manufacturer Warranty
- 3-year warranty
- Resolution
- XGA (1024 x 768)
- Speakers
- Speaker(s) - internal
- Bulb life cycle
- Up to 4000 hour(s) - normal mode ¦ Up to 8000 hour(s) - economic mode
- Weight
- 5.5 kg
- Product Description
- NEC UM301X - LCD projector - ultra short-throw - LAN - with NEC NP04WK wall mounting kit
- Bundled with
- NEC NP04WK wall mounting kit
- Bulb type
- 235 watt
Expansion / Connectivity
- Interfaces
- 1 x VGA output - 15 pin HD D-Sub (HD-15) ¦ 1 x VGA / component video input - 15 pin HD D-Sub (HD-15) ¦ 1 x composite video input - RCA ¦ 1 x HDMI input - 19 pin HDMI Type A ¦ 1 x microphone - mini-phone stereo 3.5 mm ¦ 1 x audio line-in - mini-phone stereo 3.5 mm ¦ 1 x audio line-out - mini-phone stereo 3.5 mm ¦ 1 x serial RS-232 - 9 pin D-Sub (DB-9) ¦ 2 x USB 2.0 - 4 pin USB Type A ¦ 1 x USB - 4 pin USB Type B ¦ 1 x audio line-in - RCA x 2 ¦ 1 x network - RJ-45 ¦ 1 x Mobile High-Definition Link (MHL) / HDMI - 19 pin HDMI Type A
Video Input
- TV System
- NTSC, SECAM, PAL, PAL-N, PAL-M, NTSC 4.43, PAL 60, NTSC 3.58
- Analogue video Signal
- RGB, composite video, component video
- Video Interfaces
- VGA, HDMI, composite video
- Video Modes
- 480p, 720p, 480i, 576i, 576p, 1080/60i, 1080/50i
- LAN and Wireless Image Transferring Protocols
- Wired LAN
Power
- Power Source
- AC
- Voltage Required
- AC 120/230 V (50/60 Hz)
- Power Consumption Operational
- 297 watt
- Power Consumption Stand by
- 0.4 watt
Environmental Parameters
- Min Operating Temperature
- 5 °C
- Max Operating Temperature
- 40 °C
- Humidity Range Operating
- 20 - 80% (non-condensing)
- Sound Emission
- 35 dB
- Sound Emission (Economic Mode)
- 27 dB
Lens
- Type
- Ultra short-throw fixed lens
- Focus Type
- Manual
- Lens Aperture
- F/1.8
- Keystone Correction Direction
- Vertical
- Vertical Keystone Correction
- -10 / +10
Projector
- Brightness
- 3000 ANSI lumens
- Contrast Ratio
- 4000:1
- Image Size
- 156.2 cm - 296.2 cm
- Projection Distance
- 0.11 m - 0.51 m
- Throw Ratio
- 0.36:1
- Digital Zoom Factor
- 1.4x
- Resolution
- XGA - XGA (1024 x 768) (native) / 1920 x 1200 (resized)
- Native Aspect Ratio
- 4:3
- Max Sync Rate (V x H)
- 120 Hz x 100 kHz
- Bulb type
- 235 watt
- Bulb life cycle
- Up to 4000 hour(s) - normal mode ¦ Up to 8000 hour(s) - economic mode
- Controls & Adjustments
- Keystone correction
- Features
- Color Management System, Micro Lens Array (MLA) Technology, JPEG photo playback, wall colour correction, PJlink, Crestron RoomView, DICOM Simulation Mode, Direct Power Off, Auto Power Off, built-in test pattern, auto power on, USB Viewer, Carbon Savings Meter, USB Display, Auto Eco Mode, High Altitude Mode
Speakers
- Type
- Internal
- Sound Output Mode
- Mono
- Output Power / Channel
- 20 watt
- Speakers
- 1 x mixed channel
General
- Device Type
- LCD projector
- Built-in Devices
- Speaker
- Bundled with
- NEC NP04WK wall mounting kit
Manufacturer Warranty
- Service & Support
- EMEA warranty - 3 years ¦ EMEA warranty - lamp - 6 months / 1000 hours
Dimensions & Weight
- Width
- 37.8 cm
- Depth
- 42.8 cm
- Height
- 11.2 cm
- Weight
- 5.5 kg
Miscellaneous
- Included Accessories
- Wireless remote control
- Cables Included
- 1 x VGA cable
- Security Features
- Security lock slot (cable lock sold separately), password protection, security bar, security label, keypad lock
- Compliant Standards
- TUV GS, RoHS, GOST-R, ERP
