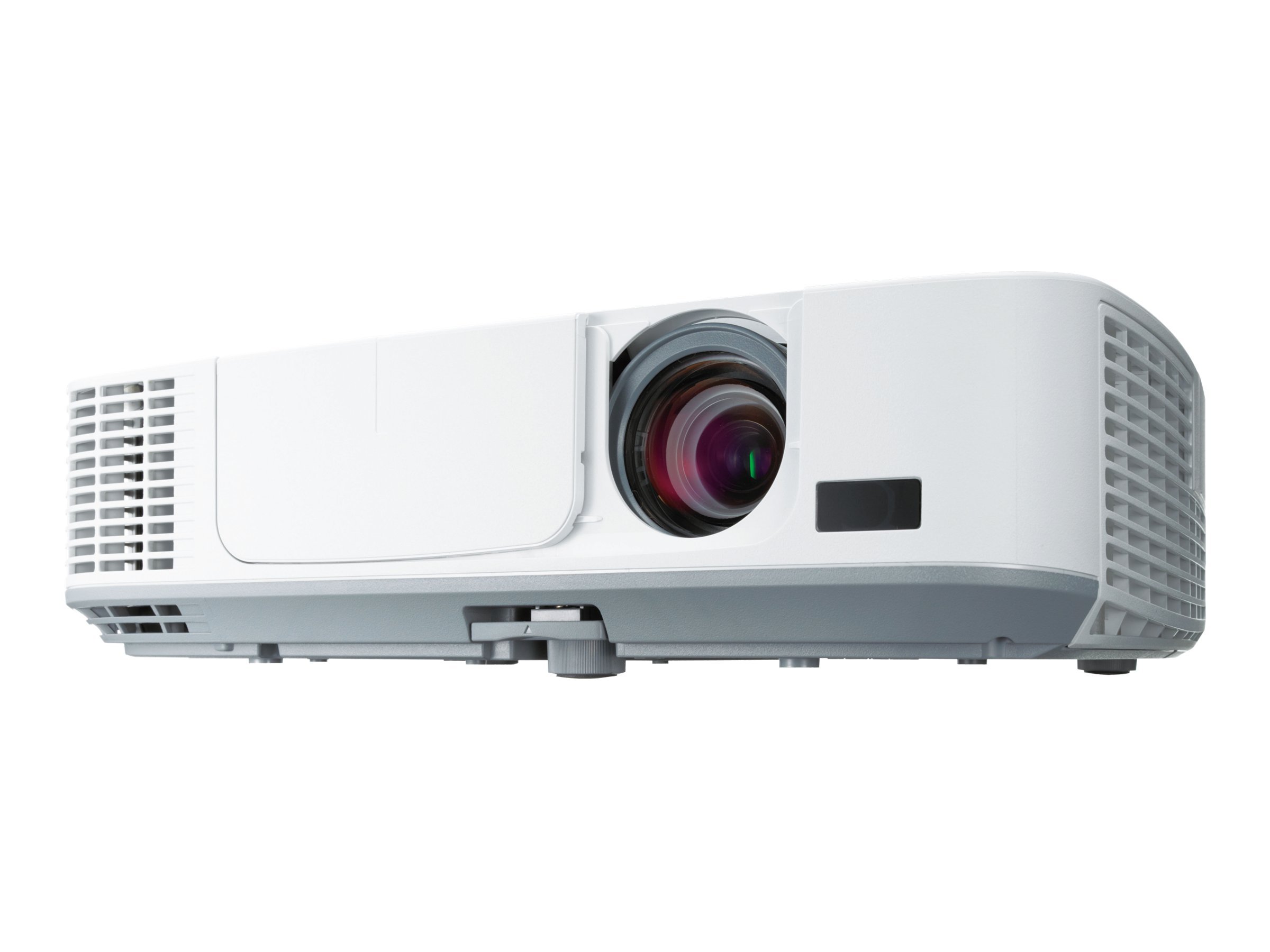

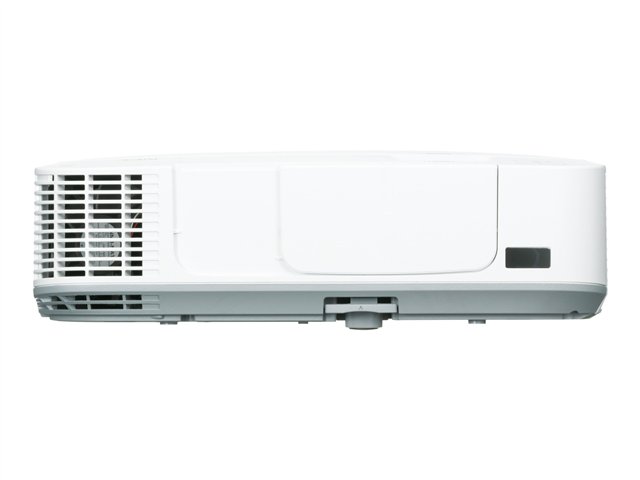

NEC M230X - LCD projector - portable
- Product code:
- P102246P | 60002958
- Product Data Sheet
- Device Type - LCD projector
- Resolution - XGA (1024 x 768)
- Dimensions (WxDxH) - 33.9 cm x 25.7 cm x 9.9 cm
- Bulb life cycle - 5000 hour(s) / 6000 hour(s) (economic mode)
- Speakers - Speaker(s) - integrated
NEC M230X - LCD projector - portable
Sorry, this item is currently out of stock.
Sorry, this item is currently out of stock.
Don't worry, we've got loads of great alternatives! Explore our full range of available Projectors.
Business Price Promise
Buy from us safe in the knowledge you’ve paid a great price.
If you find Argos, John Lewis, AO.com or eBuyer.com has the same product at a cheaper price, including voucher offers, we’ll match it – even up to 14 days after purchase.
Learn more
Product information
Get great performance while saving the environment. Advanced Eco features help to substantially lower your operating cost without compromising on quality and flexibility. The M230X is particularly suited for classrooms and small meeting rooms.
NEC M230X - LCD projector - portable - 2300 lumens - XGA (1024 x 768) - 4:3
Specifications
Basic Specifications
- Manufacturer's Part Number
- 60002958
- EAN
- 5028695608290
- Power Consumption Operational
- 239 Watt
- Video Input
- RGB, S-Video, composite video, component video (NTSC, SECAM, PAL, PAL-N, PAL-M, NTSC 4.43, PAL 60)
- Video Output
- RGB
- Brightness
- 2300 lumens
- Power
- AC 120/230 V (50 - 60 Hz)
- Image Contrast Ratio
- 2000:1
- Contrast Ratio
- 2000:1
- Model
- NEC M230X
- Built-in Devices
- Speaker
- Image Brightness
- 2300 lumens
- Digital Video Standard
- High-Definition Multimedia Interface (HDMI)
- Video Modes
- 480p, 720p, 480i, 576i, 576p, 1080/60i, 1080/50i
- Sound Output Mode
- Mono 10 Watt
- Native Aspect Ratio
- 4:3
- Device Type
- LCD projector
- Dimensions (WxDxH)
- 33.9 cm x 25.7 cm x 9.9 cm
- Manufacturer Warranty
- 3-year warranty
- Resolution
- XGA (1024 x 768)
- Speakers
- Speaker(s) - integrated
- Input Device
- Remote control
- Bulb life cycle
- Up to 5000 hour(s) - normal mode ¦ Up to 6000 hour(s) - economic mode
- Weight
- 2.9 kg
- Audio Output
- Speaker(s) - integrated
- Product Description
- NEC M230X - LCD projector - portable
- Bulb type
- 180 Watt
Video Output
- Analogue Video Signal
- RGB
Projector Lens System
- Focus Type
- Manual
- Lens Aperture
- F/1.7-2.2
- Zoom Type
- Manual
- Zoom Factor
- 1.7x
- Keystone Correction Type
- Digital
- Keystone Correction Direction
- Vertical
- Vertical Keystone Correction
- -30 / +30
Expansion / Connectivity

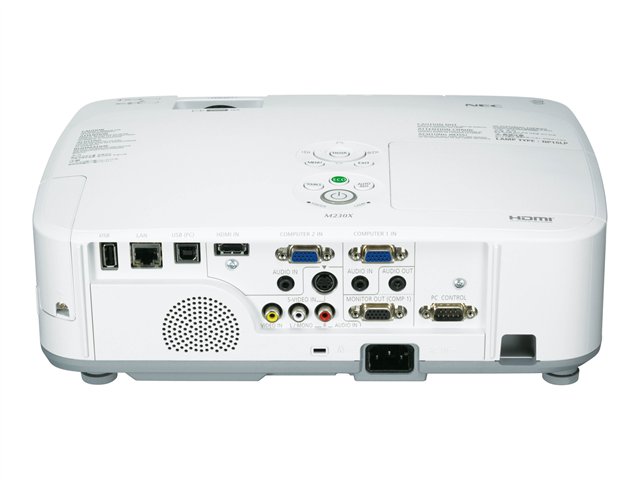

- Interfaces
- 2 x VGA / component video input - 15 pin HD D-Sub (HD-15) ¦ 1 x VGA output - 15 pin HD D-Sub (HD-15) ¦ 1 x composite video input - RCA ¦ 1 x HDMI input - 19 pin HDMI Type A ¦ 1 x S-video input - 4 pin mini-DIN ¦ 2 x audio line-in - mini-phone stereo 3.5 mm ¦ 1 x audio line-in - RCA ¦ 1 x audio line-out - mini-phone stereo 3.5 mm ¦ 1 x serial RS-232 - 9 pin D-Sub (DB-9) ¦ 1 x management - RJ-45 ¦ 2 x USB 2.0 downstream - 4 pin USB Type A ¦ 1 x USB upstream - 4 pin USB Type B
Video Input
- TV System
- NTSC, SECAM, PAL, PAL-N, PAL-M, NTSC 4.43, PAL 60
- Analogue video Signal
- RGB, S-Video, composite video, component video
- Digital Video Standard
- High-Definition Multimedia Interface (HDMI)
- Video Interfaces
- VGA, HDMI, composite video, S-Video
- Video Modes
- 480p, 720p, 480i, 576i, 576p, 1080/60i, 1080/50i
Power
- Voltage Required
- AC 120/230 V (50 - 60 Hz)
- Power Consumption Operational
- 239 Watt
- Power Consumption Stand by
- 0.4 Watt
Environmental Parameters
- Min Operating Temperature
- 5 °C
- Max Operating Temperature
- 40 °C
- Humidity Range Operating
- 20 - 80%
- Sound Emission
- 34 dBA
- Sound Emission (Economic Mode)
- 27 dBA
Projector / Panel
- Image Brightness
- 2300 ANSI lumens
- Image Contrast Ratio
- 2000:1
- Image Size
- 63.5 cm - 762 cm
- Projection Distance
- 0.7 m - 14.5 m
- Throw Ratio
- 1.3 - 2.2 :1
- Resolution
- XGA - XGA (1024 x 768) (native) / 1920 x 1080 (resized)
- Native Aspect Ratio
- 4:3
- Bulb type
- 180 Watt
- Bulb life cycle
- 5000 hour(s) / 6000 hour(s) (economic mode)
- Features
- Eco-Mode technology, JPEG photo playback, wall colour correction, Auto Vertical Keystone
Lens
- Focus Type
- Manual
- Lens Aperture
- F/1.7-2.2
- Zoom Type
- Manual
- Zoom Factor
- 1.7x
- Keystone Correction Type
- Digital
- Keystone Correction Direction
- Vertical
- Vertical Keystone Correction
- -30 / +30
Projector
- Brightness
- 2300 lumens
- Contrast Ratio
- 2000:1
- Image Size
- 63.5 cm - 762 cm
- Projection Distance
- 0.6 m - 13.8 m
- Throw Ratio
- 1.3 - 2.2:1
- Resolution
- XGA - XGA (1024 x 768) (native) / 1920 x 1080 (resized)
- Native Aspect Ratio
- 4:3
- Max Sync Rate (V x H)
- 120 Hz x 100 kHz
- Bulb type
- 180 Watt
- Bulb life cycle
- Up to 5000 hour(s) - normal mode ¦ Up to 6000 hour(s) - economic mode
- Features
- Eco-Mode technology, JPEG photo playback, wall colour correction, Auto Vertical Keystone
Speakers
- Type
- Integrated
- Sound Output Mode
- Mono
- Output Power / Channel
- 10 Watt
General
- Device Type
- LCD projector
- Built-in Devices
- Speaker
Manufacturer Warranty
- Service & Support
- Limited warranty - 3 years
Dimensions & Weight
- Width
- 33.9 cm
- Depth
- 25.7 cm
- Height
- 9.9 cm
- Weight
- 2.9 kg
Audio Output
- Type
- Speaker(s) - integrated
- Sound Output Mode
- Mono
- Output Power / Channel
- 10 Watt
Miscellaneous
- Included Accessories
- Carrying case, wireless remote control
- Cables Included
- 1 x VGA cable - 1.8 m
- Security Features
- Security lock slot (cable lock sold separately), password protection, control panel lock
- Compliant Standards
- TUV GS, RoHS, GOST-R
Software / System Requirements
- Software Included
- Drivers & Utilities
Input Device
- Type
- Remote control - wireless
