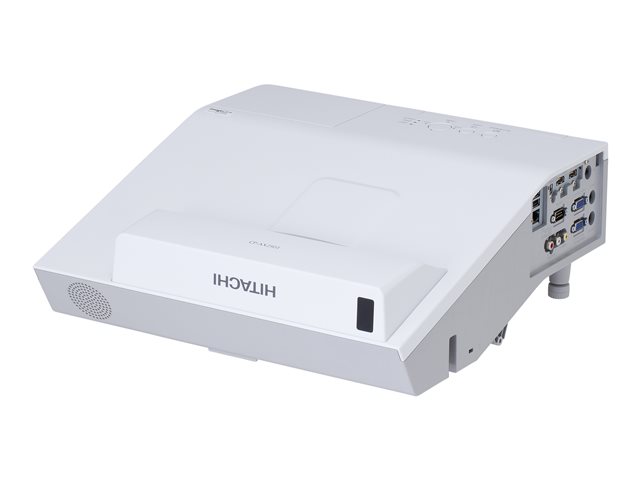

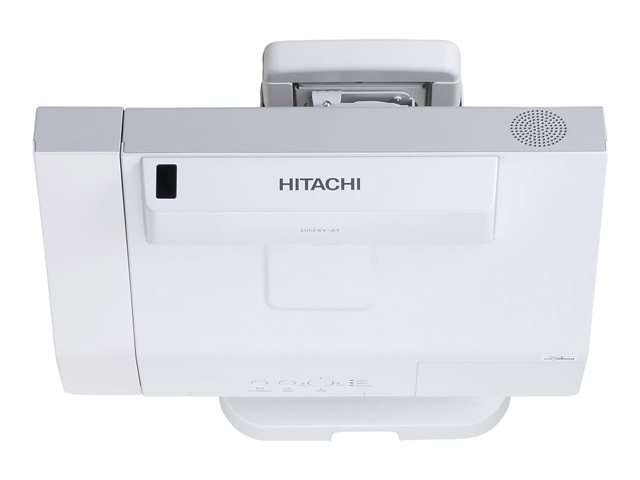

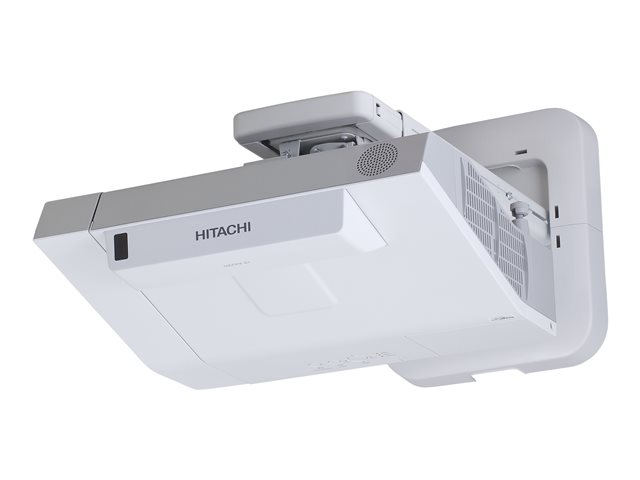

Hitachi CP-AX2505 - 3LCD projector - LAN
- Product code:
- P235009P | CPAX2505
- Product Data Sheet
- Hitachi CP-AX2505
- 3LCD projector
- 2700 lumens
- XGA (1024 x 768)
- 4:3
Hitachi CP-AX2505 - 3LCD projector - LAN
Sorry, this item is currently out of stock.
Sorry, this item is currently out of stock.
Don't worry, we've got loads of great alternatives! Explore our full range of available Projectors.
Business Price Promise
Buy from us safe in the knowledge you’ve paid a great price.
If you find Argos, John Lewis, AO.com or eBuyer.com has the same product at a cheaper price, including voucher offers, we’ll match it – even up to 14 days after purchase.
Learn more
Product information
Hitachi CP-AX2505 - 3LCD projector - 2700 lumens - XGA (1024 x 768) - 4:3 - LAN
Specifications
Basic Specifications
- Manufacturer's Part Number
- CPAX2505
- EAN
- 4902530095944
- Power Consumption Operational
- 330 Watt
- Video Input
- RGB, composite video, component video (NTSC, SECAM, PAL, PAL-N, PAL-M, NTSC 4.43), LAN
- Brightness
- 2700 lumens
- Power
- AC 120/230 V (50/60 Hz)
- Contrast Ratio
- 10000:1
- Model
- Hitachi CP AX2505
- Built-in Devices
- Speaker
- Video Modes
- 480p, 720p, 1080i, 1080p, 480i, 576i
- Native Aspect Ratio
- 4:3
- Device Type
- 3LCD projector
- Colour Support
- 16.7 million colours
- Dimensions (WxDxH)
- 37.6 cm x 36.1 cm x 13.7 cm
- Manufacturer Warranty
- 3-year warranty
- Resolution
- XGA (1024 x 768)
- Speakers
- Speaker(s) - integrated
- Bulb life cycle
- Up to 5000 hour(s) - normal mode ¦ Up to 10000 hour(s) - economic mode
- Weight
- 4.26 kg
- Product Description
- Hitachi CP-AX2505 - 3LCD projector - LAN
- Bulb type
- 225 Watt
Expansion / Connectivity
- Interfaces

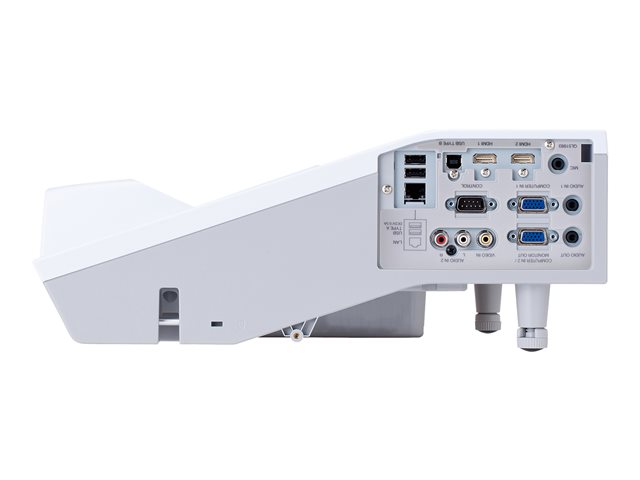

- 2 x HDMI - 19 pin HDMI Type A ¦ 2 x VGA / component video input - 15 pin HD D-Sub (HD-15) ¦ 1 x VGA output - 15 pin HD D-Sub (HD-15) ¦ 1 x composite video input - RCA ¦ 1 x audio line-in - RCA x 2 ¦ 1 x audio line-in - mini-phone stereo 3.5 mm ¦ 1 x microphone input - mini-phone mono 3.5 mm ¦ 1 x audio line-out - mini-phone stereo 3.5 mm ¦ 1 x network - RJ-45 ¦ 2 x USB - 4 pin USB Type A ¦ 1 x USB - 4 pin USB Type B ¦ 1 x serial RS-232 - 9 pin D-Sub (DB-9) (management)
Video Input
- TV System
- NTSC, SECAM, PAL, PAL-N, PAL-M, NTSC 4.43
- Analogue video Signal
- RGB, composite video, component video
- Video Interfaces
- VGA, HDMI, composite video
- Video Modes
- 480p, 720p, 1080i, 1080p, 480i, 576i
- LAN and Wireless Image Transferring Protocols
- Wired LAN
Power
- Power Source
- AC
- Voltage Required
- AC 120/230 V (50/60 Hz)
- Power Consumption Operational
- 330 Watt
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 40 °C
Lens
- Lens Aperture
- F/1.8
- Keystone Correction Direction
- Horizontal, vertical
- Vertical Keystone Correction
- -5/ +5
- Horizontal Keystone Correction
- -5/ +5
Projector
- Brightness
- 2700 lumens
- Contrast Ratio
- 10000:1
- Image Size
- 152 cm - 254 cm
- Projection Distance
- 0.38 m - 0.66 m
- Throw Ratio
- 0.2 - 0.3:1
- Resolution
- XGA - XGA (1024 x 768)
- Native Aspect Ratio
- 4:3
- Colour Support
- 16.7 million colours
- Max Sync Rate (V x H)
- 120 Hz x 106 kHz
- Bulb type
- 225 Watt
- Bulb life cycle
- Up to 5000 hour(s) - normal mode ¦ Up to 10000 hour(s) - economic mode
- Controls & Adjustments
- Keystone correction
- Features
- Closed Caption, 3LCD Technology, 16:9 aspect ratio support, input source naming, 16:10 aspect ratio support, AMX Device Discovery, Perfect Fit 2, Template Function, PJMessenger, ImageCare Technology, Cloning Function, Intelligent Eco, High Dynamic Contrast Range (HDCR), Tabletop Presentation, Projector Quick Connection
Speakers
- Type
- Integrated
- Sound Output Mode
- Mono
- Output Power / Channel
- 16 Watt
- Speakers
- 1 x mixed channel
General
- Device Type
- 3LCD projector
- Built-in Devices
- Speaker
- Networking
- Ethernet
Manufacturer Warranty
- Service & Support
- Limited warranty - parts and labour - 3 years
Dimensions & Weight
- Width
- 37.6 cm
- Depth
- 36.1 cm
- Height
- 13.7 cm
- Weight
- 4.26 kg
Miscellaneous
- Included Accessories
- Cable cover, 2 x AA batteries, wireless remote control, adapter cover
- Cables Included
- 1 x VGA cable
- Security Features
- PIN code
- Compliant Standards
- FCC Class B certified, cUL, FCC Part 15 B, UL 60950-1
Software / System Requirements
- Software Included
- Drivers & Utilities
