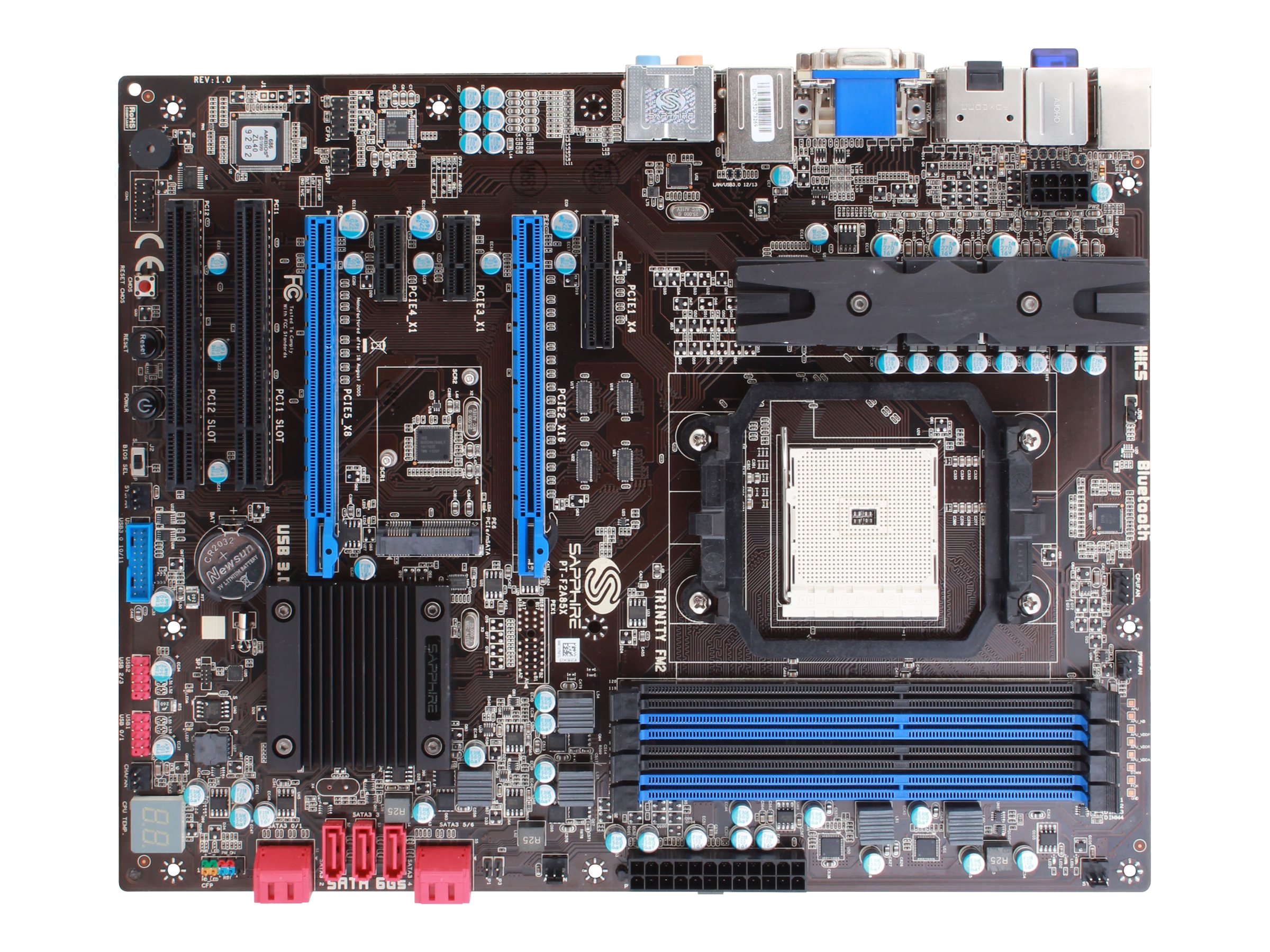

Sapphire PURE Platinum A85XT PT-F2A85X - motherboard - ATX - Socket FM2 - AMD A85X

Product code:
P160899P | 52046-01-40G
  • Product Type - Motherboard - ATX
  • Compatible Processors - Athlon II X4, A8 series, A6 series, A4 series, A10 series
  • Max RAM Size - 32 GB
  • Processor Socket - 1 x Socket FM2
  • Storage Ports - 7 x SATA-600 (RAID)
  • Chipset Type - AMD A85X
  • Manufacturer's Logo

Sapphire PURE Platinum A85XT PT-F2A85X - motherboard - ATX - Socket FM2 - AMD A85X

Product unavailable

Sorry, this item is currently out of stock.

View all Motherboards
Product unavailable

Sorry, this item is currently out of stock.

Don't worry, we've got loads of great alternatives! Explore our full range of available Motherboards.

View all Motherboards
Business Price Promise

Buy from us safe in the knowledge you’ve paid a great price.

If you find Argos, John Lewis, AO.com or eBuyer.com has the same product at a cheaper price, including voucher offers, we’ll match it – even up to 14 days after purchase.

Learn more
Product information

Compatability The SAPPHIRE Pure Platinum A85XT is a full ATX sized board that supports the AMD APU A10/A8/A6/A4 series Trinity processors using socket FM2. It includes full implementation of the A85X chipset features, including USB 3.0, SATA 6G, PCI-Express expansion and extensive I/O support.

AMD's Trinity APU family supports up to four independent high resolutions DirectX 11 displays with its integrated southern islands graphics. Outputs provided on the SAPPHIRE Pure Platinum A85XT back panel are DisplayPort, dual link DVI-D, HDMI and VGA. Triple view is supported with VGA, DVI and either HDMI or DisplayPort.

Sapphire PURE Platinum A85XT PT-F2A85X - Motherboard - ATX - Socket FM2 - AMD A85X Chipset - USB 3.0 - Bluetooth, Gigabit LAN - onboard graphics (CPU required) - HD Audio (8-channel)

View more
Specifications

Basic Specifications

Manufacturer's Part Number
52046-01-40G
EAN
4895106262393
Product Type
Motherboard - ATX
Audio
HD Audio (8-channel)
Processor Socket
1 x Socket FM2
Chipset Type
AMD A85X
USB / FireWire Ports
2 x USB 3.0 + 4 x USB 2.0 + (2 x USB 3.0 + 4 x USB 2.0 via headers)
Compatible Processors
Athlon II X4, A8 series, A6 series, A4 series, A10 series
LAN
Bluetooth, Gigabit Ethernet
Product Description
Sapphire PURE Platinum A85XT PT-F2A85X - motherboard - ATX - Socket FM2 - AMD A85X
Model
Sapphire PURE Platinum A85XT PT-F2A85X
RAM Supported
4 DIMM slots - DDR3, non-ECC, unbuffered
Max RAM Size
32 GB
Storage Ports
7 x SATA-600 (RAID)

LAN

Network Controller
Realtek RTL8111F / Atheros AR3011
Network Interfaces
Bluetooth, Gigabit Ethernet

Expansion / Connectivity

Expansion Slots
1 x CPU ¦ 4 x DIMM 240-pin (1.5 V) ¦ 1 x PCIe 2.0 x16 ¦ 1 x PCIe Mini Card ¦ 2 x PCI ¦ 1 x PCIe 2.0 x4 ¦ 2 x PCIe 2.0 x1
Storage Interfaces
SATA-600 -connectors: 7 x 7pin SATA - 7 devices - RAID 0 / RAID 1 / RAID 10 / RAID 5
Interfaces
4 x USB 2.0 ¦ 2 x USB 3.0 ¦ 1 x HDMI ¦ 1 x DVI-D (dual link) ¦ 1 x PS/2 keyboard / mouse ¦ 1 x VGA ¦ 1 x DisplayPort ¦ 1 x LAN (Gigabit Ethernet) ¦ 1 x audio line-in - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x audio line-out (side surround) - mini-jack ¦ 1 x audio line-out (rear) - mini-jack ¦ 1 x audio line-out (center/subwoofer) - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x TOSLINK
Internal Interfaces
4 x USB 2.0 ¦ 2 x USB 3.0 ¦ 1 x serial - header ¦ 1 x audio - header
Power Connectors
24-pin main power connector, 8-pin ATX12V connector

Audio

Type
HD Audio (8-channel)
Audio Codec
Realtek ALC892
Compliant Standards
High Definition Audio

General

Product Type
Motherboard - ATX
Chipset Type
AMD A85X
Processor Socket
Socket FM2
Max Processors Qty
1
Compatible Processors
Athlon II X4, A8 series, A6 series, A4 series, A10 series

Supported RAM

Max Size
32 GB
Technology
DDR3
Bus Clock
1600 MHz, 1333 MHz, 1066 MHz, 800 MHz
Supported RAM Integrity Check
Non-ECC
Registered or Buffered
Unbuffered
Features
Dual channel memory architecture

Features

BIOS Type
AMI
BIOS Features
UEFI BIOS
Hardware Monitoring
CPU core temperature, chassis temperature, CPU fan tachometer, chassis fan tachometer
Hardware Features
AMD Cool 'n' Quiet Technology, jack retasking, audio jack detect technology, AMD Radeon Dual Graphics, AMD CrossFireX technology support, ESD Protection

Miscellaneous

Included Accessories
I/O back plate
Cables Included
6 x Serial ATA cable
Software Included
Drivers & Utilities
Width
30.5 cm
Depth
24.4 cm
