Basic Specifications

Manufacturer's Part Number

MFCJ6520DWZU1

EAN

4977766722452

Standard Media Capacity

250 sheets

Document Feeder Capacity

35 sheets

Fax Resolutions

203 x 98 dpi, 203 x 196 dpi, 203 x 392 dpi

Wireless Connectivity

Wifi Printing

Max Copying Resolution

Up to 1200 x 2400 dpi (mono) / up to 1200 x 2400 dpi (colour)

Inkjet Technology

4-ink

Microsoft Certification

Compatible with Windows 7

Max Printing Speed

Up to 22 ppm (mono) / up to 20 ppm (colour)

Power

AC 230 V (50/60Hz)

Fax capability

Yes

Model

Brother MFC-J6520DW

Interface

USB 2.0, LAN, Wi-Fi(n), USB host

Media Type

Transparencies, envelopes, plain paper, photo paper, coated paper, glossy paper

Environmental Standards

ENERGY STAR Qualified

PC Connection Availability

Yes

Fax Type

Super G3 - plain paper

Printing Technology

Ink-jet (colour)

Output Trays Capacity

50 sheets

Media Size

89 x 127 mm (min) - A3 (297 x 420 mm), ANSI B (Ledger) (279 x 432 mm) (max)

Original Size

297 x 431.8 mm (max)

Bypass Feeder Capacity

1 sheet

Device Type

Multifunction printer

Print sizes

Transparencies

Dimensions (WxDxH)

55.3 cm x 43.3 cm x 24.7 cm

PC Connection

USB 2.0, LAN, Wi-Fi(n), USB host

Automatic Duplexing

Yes (printing)

Scanning

2400 x 2400 dpi

Max Fax Transmission Speed

33.6 Kbps

Display

2.7"

Office Machine Features

Print from memory card, save to memory card, print from USB flash drive, save to USB flash drive, scan to e-mail, scan to network, AOSS, scan to Cloud

Weight

14.5 kg

AirPrint Enabled

Yes

Product Description

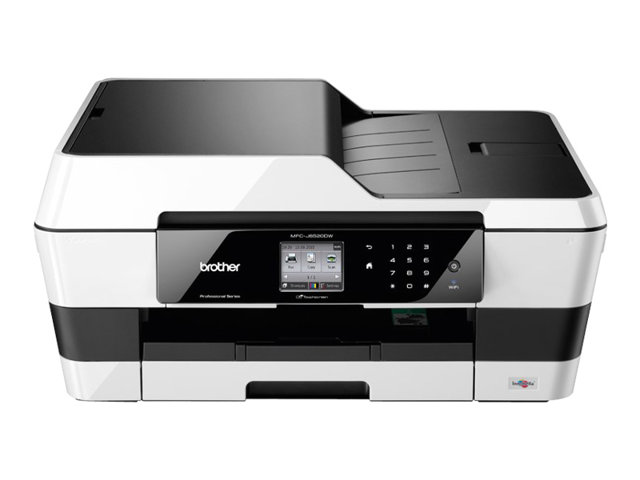

Brother MFC-J6520DW - multifunction printer - colour

Connection Availability

Yes

Max Printing Resolution

Up to 6000 x 1200 dpi (mono) / up to 6000 x 1200 dpi (colour)

Original Type

Sheets

Max Copying Speed

Up to 12 ppm (mono) / up to 9 ppm (colour)

Environmental Standards

ENERGY STAR Certified

Yes

Copying

Max Copying Speed

Up to 12 ppm (mono) / up to 9 ppm (colour)

Max Copying Resolution

Up to 1200 x 2400 dpi (mono) / up to 1200 x 2400 dpi (colour)

Max Document Enlargement

400%

Max Document Reduction

25%

Maximum Copies

99

Fax Machine

Compatibility

Super G3

Max Transmission Speed

33.6 Kbps

Fax Resolutions

203 x 98 dpi, 203 x 196 dpi, 203 x 392 dpi

Reception Memory Capacity

Up to 200 pages

Transmission Memory Capacity

Up to 200 pages

PC Faxing

Yes

Dimensions & Weight (Shipping)

Shipping Width

65.7 cm

Shipping Depth

52.1 cm

Shipping Height

35 cm

Shipping Weight

18.3 kg

Memory

Standard Memory

128 MB

Supported Flash Memory

SD Memory Card, MultiMediaCard, Memory Stick Duo, USB flash drive, MultiMediaCardplus, Memory Stick PRO Duo, SDHC Memory Card, SDXC Memory Card

Connections

Interfaces

1 x USB 2.0 - 4 pin USB Type B ¦ 1 x USB host - 4 pin USB Type A ¦ 1 x LAN - RJ-45

Security Protocols & Features

WEP, WPA-PSK, WPA2-PSK, TKIP, AES, WPS, ARP, Wi-Fi Direct

Operating System Support

MS Windows Server 2003, MS Windows Server 2008 x64 Edition, MS Windows XP Professional x64 Edition, MS Windows 7, MS Windows 7 64-bit Edition, MS Windows Vista, MS Windows XP Home Edition, MS Windows XP Professional, MS Windows Server 2003 x64 Edition, MS Windows Vista (64-bit versions), MS Windows Server 2008, Apple Mac OS X 10.7.x, MS Windows Server 2008 R2 x64 Edition, MS Windows Server 2003 R2, MS Windows Server 2003 R2 x64 Edition, Apple Mac OS X 10.8.x, Windows 8, Windows 8 64-bit, MS Windows Server 2012 x64 Edition, Apple Mac OS X 10.6.8

Software Included

Brother ControlCentre2, Brother MFL-Pro Suite, Brother ControlCenter4, Presto! PageManager 9 for Mac, Nuance PaperPort 12 SE

Scanning

Optical Resolution

2400 x 2400 dpi

Interpolated Resolution

19200 x 19200 dpi

Grayscale Depth

8-bit

Colour Depth

24-bit

Colour Depth (Internal)

48-bit

Power

Voltage Required

AC 230 V (50/60Hz)

Power Consumption Operational

28 Watt

Power Consumption Standby

5.5 Watt

Power Consumption Sleep

1.5 Watt

Environmental Parameters

Sound Emission

50 dBA (operating)

Min Operating Temperature

10 °C

Max Operating Temperature

35 °C

Humidity Range Operating

20 - 80% (non-condensing)

General

Device Type

Multifunction printer

Fax Type

Plain paper

Printing Technology

Ink-jet - colour

Display Diagonal Size

2.7"

Display Features

Touch screen

Connection Availability

Yes

Interface

USB 2.0, LAN, Wi-Fi(n), USB host

AirPrint Enabled

Yes

Office Machine Features

Print from memory card, save to memory card, print from USB flash drive, save to USB flash drive, scan to e-mail, scan to network, AOSS, scan to Cloud

Printing

Nozzle Configuration

420 nozzles (black), 3 x 420 nozzles (cyan, magenta, yellow)

Max Printing Resolution

Up to 6000 x 1200 dpi (mono) / up to 6000 x 1200 dpi (colour)

Max Printing Speed

Up to 22 ppm (mono) / up to 20 ppm (colour)

Ink Cartridge Configuration

4 cartridges (1 each: cyan, magenta, yellow, black)

Ink Palette Supported (Colours)

Cyan, magenta, yellow, black

Colour

4-ink

Minimum Ink Droplet Size

1.5 pl

Ink Type

Brother Innobella ink

Automatic Duplexing

Yes

Dimensions & Weight

Width

55.3 cm

Depth

43.3 cm

Height

24.7 cm

Weight

14.5 kg

Fax Machine Features

Error Correction Mode (ECM)

Yes

Speed Dialing

200 station(s)

Caller ID

Yes

Telephone / Fax Switch

Yes

Broadcast Transmission

250 stations

Features

Fax forwarding, group dialling, Dual Access, auto reduction, Distinctive Ring Detection (DRD)

Document & Media Handling

Max Original Size

297 x 431.8 mm

Original Type

Sheets

Document Feeder Capacity

35 sheets

Min Media Size

89 x 127 mm

Max Media Size

A3/Ledger

Min Media Weight

64 g/m²

Max Media Weight

220 g/m²

Supported Media Type

Transparencies, envelopes, plain paper, photo paper, coated paper, glossy paper

Supported Media Sizes

ANSI A (Letter) (216 x 279 mm), Legal (216 x 356 mm), Executive (184 x 267 mm), A4 (210 x 297 mm), A5 (148 x 210 mm), A3 (297 x 420 mm), A6 (105 x 148 mm), ANSI B (Ledger) (279 x 432 mm), 100 x 150 mm, 130 x 180 mm, Folio (216 x 330 mm), 127 x 203 mm, 89 x 127 mm

Supported Envelope Sizes

International DL (110 x 220 mm), Com-10 (105 x 241 mm), International C5 (162 x 229 mm), Monarch (98.4 x 190.5 mm)

Standard Media Capacity

250 sheets

Bypass Feeder Capacity

1 sheet

Output Trays Capacity

50 sheets

Document & Media Handling Details

Input tray - 250 sheets size: 89 x 127 mm - A3/Ledger (297 x 432 mm) weight: 64 g/m² - 220 g/m² ¦ Bypass tray - 1 sheet size: 89 x 127 mm - A3/Ledger (297 x 432 mm) weight: 64 g/m² - 220 g/m² ¦ ADF - 35 sheets size: 148 x 148 mm - A3/Ledger (297 x 432 mm) weight: 64 g/m² - 90 g/m² ¦ Output tray - 50 sheets

Speed Details

Printing: up to 35 ppm - B/W ¦ Printing: up to 27 ppm - colour ¦ Printing: up to 22 ipm - B/W (ISO/IEC 24734) ¦ Printing: up to 20 ipm - colour (ISO/IEC 24734) ¦ Copying: up to 12 ipm - B/W (ISO/IEC 24735) ¦ Copying: up to 9 ipm - colour (ISO/IEC 24735)

Miscellaneous

Direct Printing Specifications

PictBridge

Included Accessories

Phone cable, A3 paper sample pack

Consumables Included

1 x ink cartridge (black) - up to 600 pages - Brother Innobella LC123BK ¦ 1 x ink cartridge (cyan) - up to 600 pages - Brother Innobella LC123C ¦ 1 x ink cartridge (magenta) - up to 600 pages - Brother Innobella LC123M ¦ 1 x ink cartridge (yellow) - up to 600 pages - Brother Innobella LC123Y

Compatible with Windows 7

"Compatible with Windows 7" software and devices carry Microsoft’s assurance that these products have passed tests for compatibility and reliability with 32-bit and 64-bit Windows 7.
