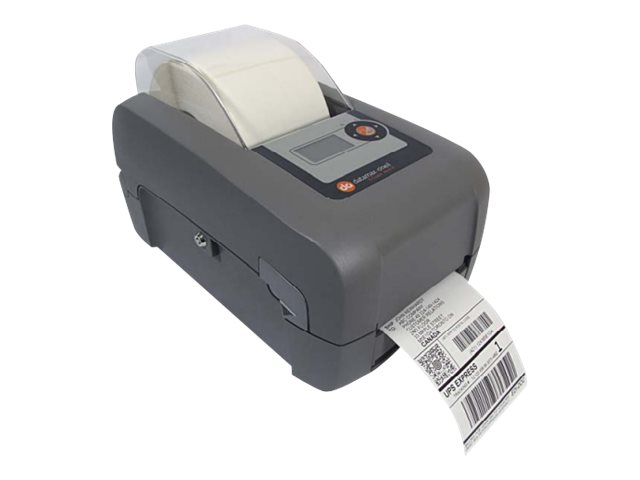

Datamax E-Class Mark III Professional+ E-4305L - label printer - B/W - direct thermal / thermal transfer
- Product code:
- P163836P | EL3-00-1E000P00
- Product Data Sheet
- User Manual
- Max Resolution ( B&W ) - 300 dpi
- Max Media Size - Roll (11.2 cm)
- Fonts - CG Triumvirate, OCR-A, OCR-B
Datamax E-Class Mark III Professional+ E-4305L - label printer - B/W - direct thermal / thermal transfer
Sorry, this item is currently out of stock.
Sorry, this item is currently out of stock.
Don't worry, we've got loads of great alternatives! Explore our full range of available Labelling.
Business Price Promise
Buy from us safe in the knowledge you’ve paid a great price.
If you find Argos, John Lewis, AO.com or eBuyer.com has the same product at a cheaper price, including voucher offers, we’ll match it – even up to 14 days after purchase.
Learn more
Product information
The E-Class Mark III is a family of compact desktop thermal printer that is designed for a wide variety of industries and applications that require a reliable and cost effective barcode printer. Datamax-O'Neil applied its industrial printer expertise to provide customers with an entry level printer that has the features and reliability normally found in more expensive printers. The E-Class Mark III is affordable to own, easy to use and economical to operate.
The E-Class Mark III is easy to use with quick loading media and an interactive LCD screen. Users will also notice a substantial reduction in their daily operational costs thanks to the E-Class Mark III's larger media and ribbon roll capacity. It is competitively priced with a proven design and reliable performance that will continue to operate long after other printers have failed.
The Professional + (plus) model is for applications that require a large internal media capacity. The Professional + has all the features of the Professional, including a large internal roll, internal fan folded media.
Datamax E-Class Mark III Professional+ E-4305L - Label printer - direct thermal / thermal transfer - Roll (11.2 cm) - 300 dpi - up to 127 mm/sec - parallel, USB, LAN, serial - tear bar - pantone warm gray
Specifications
Basic Specifications
- Manufacturer's Part Number
- EL3-00-1E000P00
- Styles & Effects
- Mirror, rotated text
- RAM Installed (Max)
- 32 MB
- Fonts
- CG Triumvirate, OCR-A, OCR-B
- Language Simulation
- DPL
- System Requirements
- Microsoft Windows NT, Microsoft Windows XP, Microsoft Windows Vista
- Networking
- Print server - Ethernet, Fast Ethernet
- Max Resolution ( B&W )
- 300 dpi
- Max Media Size (Standard)
- Roll (11.2 cm)
- Printer Type
- Label printer - direct thermal / thermal transfer - B/W
- Max Media Size (Custom)
- 112 mm
- Barcodes
- Code 93, UCC/EAN-128, GS1 DataBar, QR code, MaxiCode, Aztec code, Telepen, HIBCC, EAN/JAN-8, EAN/JAN-13, UPC-A, UPC-E, MicroPDF417, Codabar, Code 128, Code 3 of 9, Interleaved 2 of 5, Postnet, PDF417, Data Matrix, FIM, TLC39, Plessey
- Form Factor
- Stationary
- Dimensions (WxDxH)
- 20.35 cm x 35.6 cm x 24.3 cm
- Localisation
- United Kingdom, Europe
- Max Resolution (B&W)
- 300 dpi
- Printer Features
- Adjustable Media Sensor (AMS), USB host
- Manufacturer Warranty
- 1-year warranty
- Min Media Size (Custom)
- 19 mm
- Print Speed
- Up to 127 mm/sec - max speed
- Enclosure Colour
- Pantone warm gray
- Power
- AC 120/230 V
- Weight
- 3.5 kg
- Features
- Realtime clock, tear bar
- RAM Installed ( Max )
- 32 MB
- Product Description
- Datamax E-Class Mark III Professional+ E-4305L - label printer - B/W - direct thermal / thermal transfer
- Model
- Datamax E-Class Mark III Professional+ E-4305L
- Max Media Size
- Roll (11.2 cm)
- Interface
- Parallel, USB, LAN, serial
- Media Type
- Labels, continuous forms, fanfold paper, tag labels
- Flash Memory Installed (Max)
- 64 MB
Environmental Parameters
- Min Operating Temperature
- 4 °C
- Max Operating Temperature
- 35 °C
Networking
- Networking
- Print server
- Data Link Protocol
- Ethernet, Fast Ethernet
- Network / Transport Protocol
- TCP/IP, UDP/IP, BOOTP, DHCP, DNS
Media Handling
- Media Type
- Labels, continuous forms, fanfold paper, tag labels
- Max Media Size
- Roll (11.2 cm)
- Min Media Size (Custom)
- 19 mm
- Max Media Size (Custom)
- 112 mm
- Media Sizes
- Roll (1.9 - 11.2 cm)
- Max Printing Width
- 108 mm
- Max Printing Length
- 2514 mm
- Media Thickness Range
- 0.06 mm - 0.25 mm
- Roll Maximum Outer Diameter
- 183 mm
- Roll Core Diameter
- 76 mm, 25 mm
- Media Feeders
- 1 x manual - 1 roll - Roll (11.2 cm)
General
- Printer Type
- Label printer - direct thermal / thermal transfer - monochrome
- Form Factor
- Stationary
- Enclosure Colour
- Pantone warm gray
- Localisation
- United Kingdom, Europe
Flash Memory
- Flash Memory
- 64 MB
Expansion / Connectivity
- Connections
- 1 x parallel ¦ 1 x RS-232 - 9 pin D-Sub (DB-9) ¦ 1 x LAN - RJ-45 ¦ 1 x USB - 4 pin USB Type B ¦ 1 x USB - 4 pin USB Type A
Printer
- Print Speed
- Up to 127 mm/sec - max speed - 300 dpi
- Built-in Devices
- Status LCD, tear bar
- Connectivity Technology
- Wired
- Interface
- Parallel, USB, LAN, serial
- Max Resolution (B&W)
- 300 dpi
- Language Simulation
- DPL
- Fonts
- CG Triumvirate, OCR-A, OCR-B
- Styles & Effects
- Mirror, rotated text
- Features
- Realtime clock, tear bar
- Fonts Included
- 1 x bitmapped ¦ 1 x barcode ¦ Intellifonts ¦ 1 x TrueType
- Barcodes
- Code 93, UCC/EAN-128, GS1 DataBar, QR code, MaxiCode, Aztec code, Telepen, HIBCC, EAN/JAN-8, EAN/JAN-13, UPC-A, UPC-E, MicroPDF417, Codabar, Code 128, Code 3 of 9, Interleaved 2 of 5, Postnet, PDF417, Data Matrix, FIM, TLC39, Plessey
- Printer Features
- Adjustable Media Sensor (AMS), USB host
RAM
- RAM Installed (Max)
- 32 MB
Manufacturer Warranty
- Service & Support
- Limited warranty - 1 year ¦ Limited warranty - printhead - 1 year or 1,000,000 inches
Dimensions & Weight
- Width
- 20.35 cm
- Depth
- 35.6 cm
- Height
- 24.3 cm
- Weight
- 3.5 kg
Miscellaneous
- Features
- Audible alarm
- Compliant Standards
- ISO 9001:2008
Software / System Requirements
- Software Included
- Drivers & Utilities, DMX Config, DMX NetManager
- OS Required
- Microsoft Windows NT, Microsoft Windows XP, Microsoft Windows Vista
Power
- Power Device
- Power adapter - external
- Frequency Required
- 50/60 Hz
