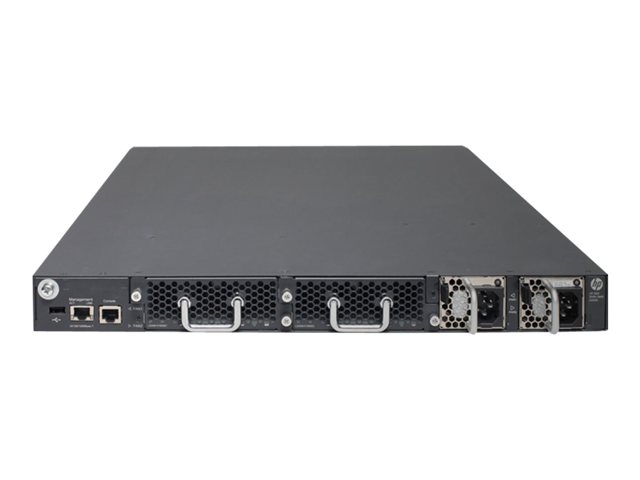

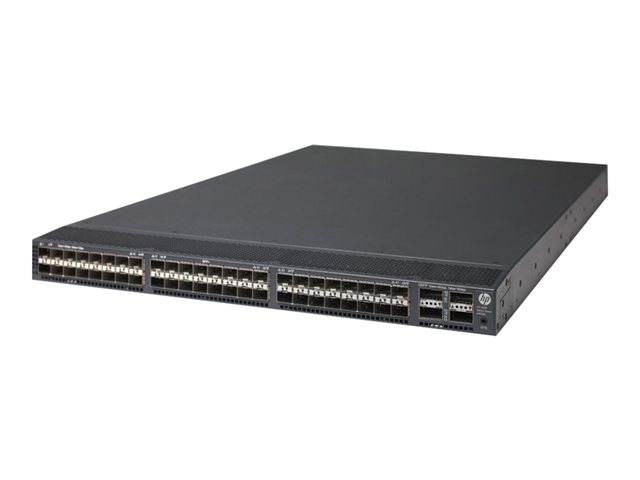

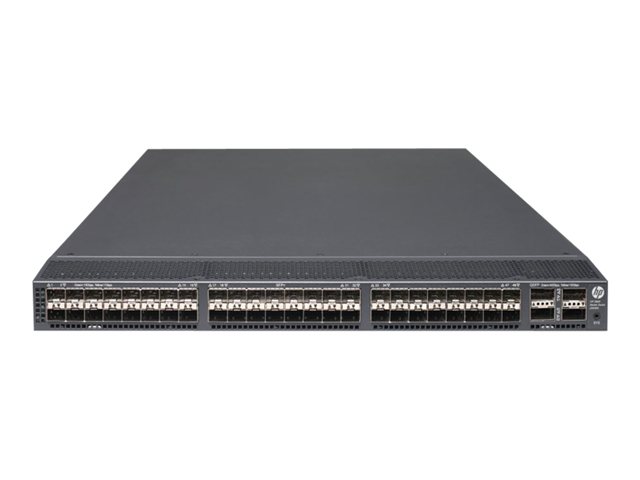

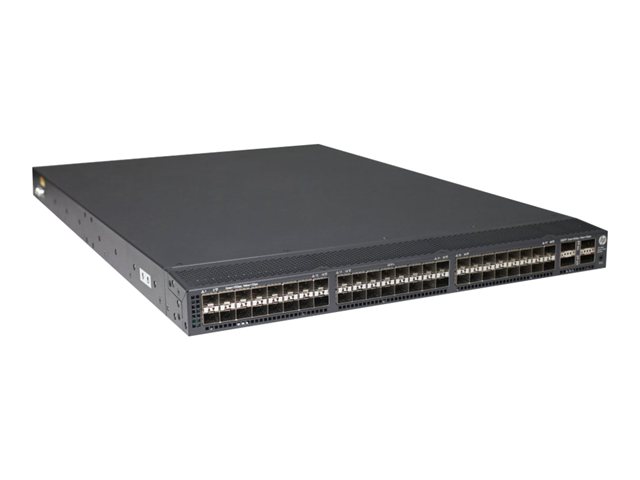

HPE FlexFabric 5900CP-48XG-4QSFP+ - switch - 48 ports - Managed - rack-mountable
- Product code:
- P194585P | JG838A
- HPE FlexFabric 5900CP-48XG-4QSFP+
- Switch
- Managed
- 48 x 1 Gigabit / 10 Gigabit / 4 Gb Fiber Channel / 8 Gb Fiber Channel SFP+ + 4 x 40 Gigabit QSFP+
- rack-mountable
HPE FlexFabric 5900CP-48XG-4QSFP+ - switch - 48 ports - Managed - rack-mountable
Sorry, this item is currently out of stock.
Sorry, this item is currently out of stock.
Don't worry, we've got loads of great alternatives! Explore our full range of available Switches.
Business Price Promise
Buy from us safe in the knowledge you’ve paid a great price.
If you find Argos, John Lewis, AO.com or eBuyer.com has the same product at a cheaper price, including voucher offers, we’ll match it – even up to 14 days after purchase.
Learn more
Product information
HPE FlexFabric 5900CP-48XG-4QSFP+ - Switch - Managed - 48 x 1 Gigabit / 10 Gigabit / 4 Gb Fiber Channel / 8 Gb Fiber Channel SFP+ + 4 x 40 Gigabit QSFP+ - rack-mountable
Specifications
Basic Specifications
- Manufacturer's Part Number
- JG838A
- EAN
- 8877589201904
- Routing Protocol
- OSPF, BGP-4, IS-IS, RIP-1, RIP-2, IGMP, VRRP, OSPFv2, OSPFv3, static IPv6 routing, RIPng, IS-ISv6, BGP-4+, MPLS, Bidirectional Forwarding Detection (BFD)
- Remote Management Protocol
- SNMP 1, Telnet, SNMP 3, SNMP 2c, TFTP, CLI
- Device Type
- Switch - 48 ports - Managed
- Power Redundancy
- Optional
- Dimensions (WxDxH)
- 43.99 cm x 65.99 cm x 4.37 cm
- Capacity
- IPv4 routing table entries: 16000 ¦ IPv6 routing table entries: 8000
- MAC Address Table Size
- 288K entries
- Enclosure Type
- Rack-mountable 1U
- Jumbo Frame Support
- Yes
- Ports
- 48 x 1 Gigabit / 10 Gigabit / 4 Gb Fiber Channel / 8 Gb Fiber Channel SFP+ + 4 x 40 Gigabit QSFP+
- Weight
- 13 kg
- Features
- Flow control, DHCP support, BOOTP support, ARP support, VLAN support, IPv6 support, SNTP support, WFQ, WRED, sFlow, STP support, VRRP support, MSTP support, tunnelling, ACL support, QoS, DLDP support, ECMP, BFD, IPv4 support, DWRR, LLDP support, DCB, SPQ, CoS, IRF technology, MBGP, ToS, DSCP support
- Product Description
- HPE FlexFabric 5900CP-48XG-4QSFP+ - switch - 48 ports - Managed - rack-mountable
- Subtype
- 40 Gigabit Ethernet
- Model
- HPE FlexFabric 5900CP-48XG-4QSFP+
- Performance
- Throughput: 952 Mpps ¦ Routing/switching capacity: 1280 Gbps
- Compliant Standards
- IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.3ah, IEEE 802.1ab (LLDP), IEEE 802.1Qbb, IEEE 802.3ag
Expansion / Connectivity
- Interfaces
- 48 x 40Gbit LAN QSFP+ ¦ 1 x serial (console) RJ-45 ¦ 1 x management (LAN) RJ-45 ¦ 1 x USB 2.0 ¦ 48 x SFP+
Power
- Power Device
- Internal power supply (not installed)
- Max Supported Qty
- 2
- Power Redundancy
- Optional
- Power Redundancy Scheme
- 1+1 (with optional power supply)
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 45 °C
- Humidity Range Operating
- 10 - 90% (non-condensing)
General
- Device Type
- Switch - 48 ports - Managed
- Enclosure Type
- Rack-mountable 1U
- Subtype
- 40 Gigabit Ethernet
- Ports
- 48 x 1 Gigabit / 10 Gigabit / 4 Gb Fiber Channel / 8 Gb Fiber Channel SFP+ + 4 x 40 Gigabit QSFP+
- Performance
- Throughput: 952 Mpps ¦ Routing/switching capacity: 1280 Gbps
- Capacity
- IPv4 routing table entries: 16000 ¦ IPv6 routing table entries: 8000
- MAC Address Table Size
- 288K entries
- Jumbo Frame Support
- Yes
- Routing Protocol
- OSPF, BGP-4, IS-IS, RIP-1, RIP-2, IGMP, VRRP, OSPFv2, OSPFv3, static IPv6 routing, RIPng, IS-ISv6, BGP-4+, MPLS, Bidirectional Forwarding Detection (BFD)
- Remote Management Protocol
- SNMP 1, Telnet, SNMP 3, SNMP 2c, TFTP, CLI
- Authentication Method
- Secure Shell (SSH), RADIUS, TACACS+, Secure Shell v.2 (SSH2)
- Features
- Flow control, DHCP support, BOOTP support, ARP support, VLAN support, IPv6 support, SNTP support, WFQ, WRED, sFlow, STP support, VRRP support, MSTP support, tunnelling, ACL support, QoS, DLDP support, ECMP, BFD, IPv4 support, DWRR, LLDP support, DCB, SPQ, CoS, IRF technology, MBGP, ToS, DSCP support
- Compliant Standards
- IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.3ah, IEEE 802.1ab (LLDP), IEEE 802.1Qbb, IEEE 802.3ag
- RAM
- 2 GB SDRAM
- Flash Memory
- 512 MB
Dimensions & Weight
- Width
- 43.99 cm
- Depth
- 65.99 cm
- Height
- 4.37 cm
- Weight
- 13 kg
Miscellaneous
- Compliant Standards
- CISPR 22 Class A, GOST, EN 61000-3-2, IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, NOM, EN 61000-3-3, EN55024, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, EMC, ICES-003 Class A, EN 61000-4-5, EN 61000-4-11, RoHS, FCC CFR47 Part 15, EN 61000-4-8, UL 60950-1, IEC 60950-1, EN 60950-1, EN 60825-1, ANSI C63.4-2003, EN 60825-2, VCCI Class A, EN 55022 Class A, EN 300 386, CAN/CSA-C22.2 No. 60950-1
