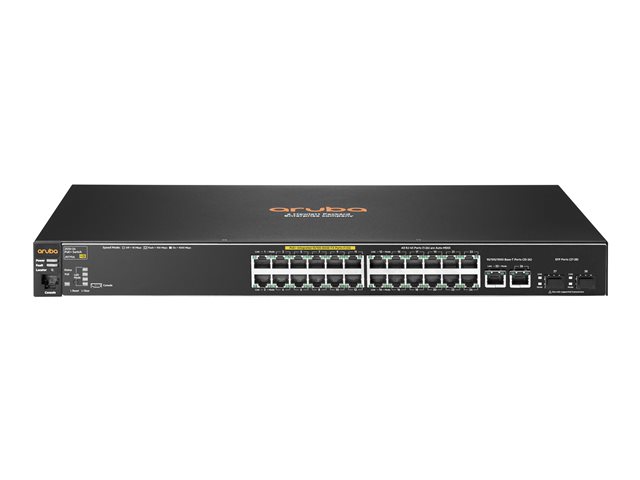

HPE Aruba 2530-24-PoE+ - switch - 24 ports - Managed - rack-mountable

Product code:
P166007P | J9779A
  • Device Type - Switch - 24 ports - Managed
  • Power Over Ethernet (PoE) - PoE+
  • Additional Features - Flow control, DHCP support, BOOTP support, ARP support, trunking, VLAN support, auto-uplink (auto MDI/MDI-X), port mirroring, IPv6 support, half duplex mode, full duplex mode, SNTP support, sFlow, Multiple Spanning Tree Protocol (MST
  • Manufacturer's Logo

HPE Aruba 2530-24-PoE+ - switch - 24 ports - Managed - rack-mountable

Product unavailable

Sorry, this item is currently out of stock.

View all Switches
Product unavailable

Sorry, this item is currently out of stock.

Don't worry, we've got loads of great alternatives! Explore our full range of available Switches.

View all Switches
Business Price Promise

Buy from us safe in the knowledge you’ve paid a great price.

If you find Argos, John Lewis, AO.com or eBuyer.com has the same product at a cheaper price, including voucher offers, we’ll match it – even up to 14 days after purchase.

Learn more
Product information

Compatability HP 2530 switch series consists of four fully managed layer 2 edge switches, delivering cost-effective, reliable, and secure connectivity for business networks. Designed for entry-level to midsize enterprise networks, the Gigabit Ethernet switch delivers full layer 2 capabilities with enhanced access security, traffic prioritization, and IPv6 host support.

The 2530 switch has 24 10/100/1000 ports and four small form-factor pluggable (SFP) slots for fiber connectivity. For customers implementing Power over Ethernet for voice, video, or wireless deployments, the HP 2530-24G-PoE+ switch is IEEE 802.3af and IEEE 802.3at compliant with up to 30 W per port.

The HP 2530 switch series is easy to use, deploy, and manage via SNMP, CLI, and web GUI. The series offers flexible wall, table, and rack mounting; quiet operation; and improved power savings, with features such as IEEE 802.3 az (Energy Efficient Ethernet).

HPE Aruba 2530-24-PoE+ - Switch - Managed - 24 x 10/100 + 2 x Gigabit SFP + 2 x 10/100/1000 - desktop, rack-mountable, wall-mountable - PoE+ (195 W)

View more
Specifications

Basic Specifications

Manufacturer's Part Number
J9779A
EAN
7330381648007
Interfaces
Fast Ethernet
Remote Management Protocol
SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, TFTP, SSH-2, CLI
Bundled Services
Limited lifetime warranty
Device Type
Switch - 24 ports - Managed
Dimensions (WxDxH)
44.2 cm x 32.26 cm x 4.45 cm
Power Over Ethernet (PoE)
PoE+
Manufacturer Warranty
Limited lifetime warranty
MAC Address Table Size
16000 entries
PoE Budget
195 W
Enclosure Type
Rack-mountable 1U
Power
AC 120/230 V (50/60 Hz)
Jumbo Frame Support
9220 bytes
Ports
24 x 10/100 + 2 x Gigabit SFP + 2 x 10/100/1000
Weight
3.81 kg
Features
Flow control, DHCP support, BOOTP support, ARP support, trunking, VLAN support, auto-uplink (auto MDI/MDI-X), port mirroring, IPv6 support, half duplex mode, full duplex mode, SNTP support, sFlow, MSTP support, ACL support, QoS, STP Root Guard, LLDP support, CoS, GARP
Product Description
HPE Aruba 2530-24-PoE+ - switch - 24 ports - Managed - rack-mountable
Subtype
Fast Ethernet
Model
HPE Aruba 2530-24-PoE+
Performance
Throughput: up to 9.5 Mpps ¦ Switching capacity: 12.8 Gbps
Compliant Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az

Expansion / Connectivity

Interfaces
2 x 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ 2 x SFP (mini-GBIC) ¦ 1 x management RJ-45 ¦ 24 x 10Base-T/100Base-TX - RJ-45 PoE+

Power

Power Device
Internal power supply
Voltage Required
AC 120/230 V (50/60 Hz)

Environmental Parameters

Min Operating Temperature
0 °C
Max Operating Temperature
45 °C
Humidity Range Operating
15 - 95% (non-condensing)
Min Storage Temperature
-40 °C
Max Storage Temperature
70 °C
Humidity Range Storage
15 - 90% (non-condensing)

General

Device Type
Switch - 24 ports - Managed
Enclosure Type
Desktop, rack-mountable, wall-mountable 1U
Subtype
Fast Ethernet
Ports
24 x 10/100 + 2 x Gigabit SFP + 2 x 10/100/1000
Power Over Ethernet (PoE)
PoE+
PoE Budget
195 W
Performance
Throughput: up to 9.5 Mpps ¦ Switching capacity: 12.8 Gbps
MAC Address Table Size
16000 entries
Jumbo Frame Support
9220 bytes
Remote Management Protocol
SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, TFTP, SSH-2, CLI
Encryption Algorithm
SSL
Authentication Method
RADIUS, TACACS+, Secure Shell v.2 (SSH2)
Features
Flow control, DHCP support, BOOTP support, ARP support, trunking, VLAN support, auto-uplink (auto MDI/MDI-X), port mirroring, IPv6 support, half duplex mode, full duplex mode, SNTP support, sFlow, MSTP support, ACL support, QoS, STP Root Guard, LLDP support, CoS, GARP
Compliant Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az
Processor
1 x ARM: 800 MHz
RAM
256 MB DDR3 SDRAM
Flash Memory
128 MB

Manufacturer Warranty

Service & Support
Limited warranty - lifetime

Dimensions & Weight

Width
44.2 cm
Depth
32.26 cm
Height
4.45 cm
Weight
3.81 kg

Miscellaneous

Compliant Standards
FCC Class A certified, CISPR 22 Class A, CISPR 24, EN 61000-3-2, IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, VCCI Class A ITE, EN 61000-3-3, EN55024, EN 55022 Class A, UL 60950-1, IEC 60950-1, EN 60950-1, EN 60825, CSA C22.2 No. 60950-1
