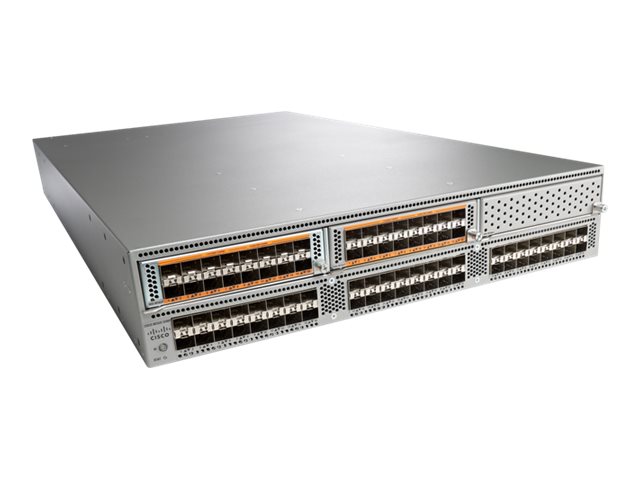

Cisco Nexus 5596UP - switch - 48 ports - Managed - rack-mountable

Product code:
P195130P | N5K-C5596UP-FA
  • Cisco Nexus 5596UP
  • Switch
  • Managed
  • 48 x SFP+
  • rack-mountable
  • Manufacturer's Logo

Cisco Nexus 5596UP - switch - 48 ports - Managed - rack-mountable

Product unavailable

Sorry, this item is currently out of stock.

View all Switches
Product unavailable

Sorry, this item is currently out of stock.

Don't worry, we've got loads of great alternatives! Explore our full range of available Switches.

View all Switches
Business Price Promise

Buy from us safe in the knowledge you’ve paid a great price.

If you find Argos, John Lewis, AO.com or eBuyer.com has the same product at a cheaper price, including voucher offers, we’ll match it – even up to 14 days after purchase.

Learn more
Product information

Cisco Nexus 5596UP - Switch - Managed - 48 x SFP+ - rack-mountable

View more
Specifications

Basic Specifications

Manufacturer's Part Number
N5K-C5596UP-FA
EAN
8592978069087
Routing Protocol
RIP-2, BGP, EIGRP, IGMPv2, HSRP, VRRP, OSPFv2, static IP routing, IGMPv3, PIM-SSM, ECMP
Remote Management Protocol
SNMP 1, SNMP 2, RMON, Telnet, SNMP 3, SSH-2, CLI
Bundled Services
1 year warranty
Device Type
Switch - 48 ports - Managed
Power Redundancy
Yes
Dimensions (WxDxH)
43.9 cm x 74.9 cm x 8.8 cm
Manufacturer Warranty
1-year warranty
MAC Address Table Size
32K entries
Enclosure Type
Rack-mountable 2U
Power
AC 120/230 V (50/60 Hz)
Jumbo Frame Support
9216 bytes
Ports
48 x SFP+
Weight
21.6 kg
Features
Layer 2 switching, ARP support, VLAN support, Syslog support, WRR queuing, Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, MSTP support, DHCP snooping, ACL support, QoS, Jumbo Frames support, Rapid PVST+, LACP
Product Description
Cisco Nexus 5596UP - switch - 48 ports - Managed - rack-mountable
Subtype
10 Gigabit Ethernet
Model
Cisco Nexus 5596UP
Performance
Forwarding performance: 1920 Gbps
Compliant Standards
IEEE 802.3, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.3ae, IEEE 802.1s, IEEE 801.1p

Expansion / Connectivity

Interfaces
48 x SFP+ ¦ 1 x 1000Base-T RJ-45 management ¦ 1 x console management
Expansion Slots
3 (total) / 3 (free) x Expansion Slot

Power

Power Device
Internal power supply - hot-plug
Installed Qty
2
Power Redundancy
Yes
Power Redundancy Scheme
1+1
Voltage Required
AC 120/230 V (50/60 Hz)
Power Consumption Operational
660 Watt

Environmental Parameters

Min Operating Temperature
0 °C
Max Operating Temperature
40 °C
Humidity Range Operating
5 - 95% (non-condensing)
Max Storage Temperature
70 °C

General

Device Type
Switch - 48 ports - Managed
Enclosure Type
Rack-mountable 2U
Subtype
10 Gigabit Ethernet
Ports
48 x SFP+
Performance
Forwarding performance: 1920 Gbps
MAC Address Table Size
32K entries
Jumbo Frame Support
9216 bytes
Routing Protocol
RIP-2, BGP, EIGRP, IGMPv2, HSRP, VRRP, OSPFv2, static IP routing, IGMPv3, PIM-SSM, ECMP
Remote Management Protocol
SNMP 1, SNMP 2, RMON, Telnet, SNMP 3, SSH-2, CLI
Encryption Algorithm
AES
Authentication Method
RADIUS, TACACS+, MS-CHAP
Features
Layer 2 switching, ARP support, VLAN support, Syslog support, WRR queuing, Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, MSTP support, DHCP snooping, ACL support, QoS, Jumbo Frames support, Rapid PVST+, LACP
Compliant Standards
IEEE 802.3, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.3ae, IEEE 802.1s, IEEE 801.1p

Manufacturer Warranty

Service & Support
Limited warranty - replacement - 1 year - response time: 10 days

Dimensions & Weight

Width
43.9 cm
Depth
74.9 cm
Height
8.8 cm
Weight
21.6 kg

Miscellaneous

Compliant Standards
CISPR 22 Class A, BSMI CNS 13438 Class A, CISPR 24, EN 61000-3-2, VCCI Class A ITE, EN 61000-3-3, EN55024, EN55022 Class A, AS/NZS 60950-1, ICES-003 Class A, RoHS, FCC CFR47 Part 15, IEC 60950-1, EN 60950-1, UL 60950-1 Second Edition, GB 4943, EN 300 386, CAN/CSA-C22.2 No. 60950-1
