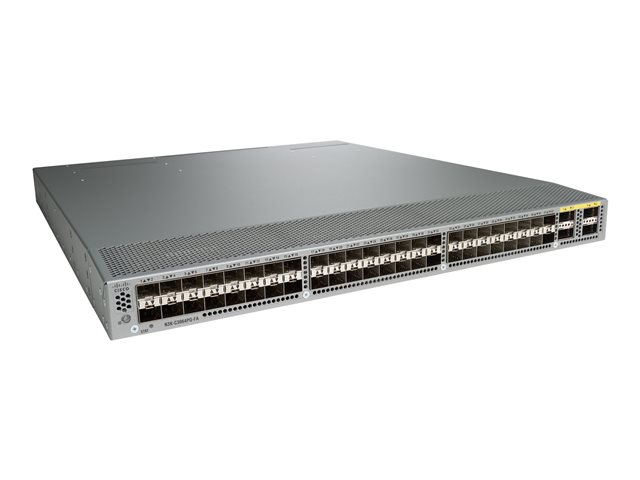

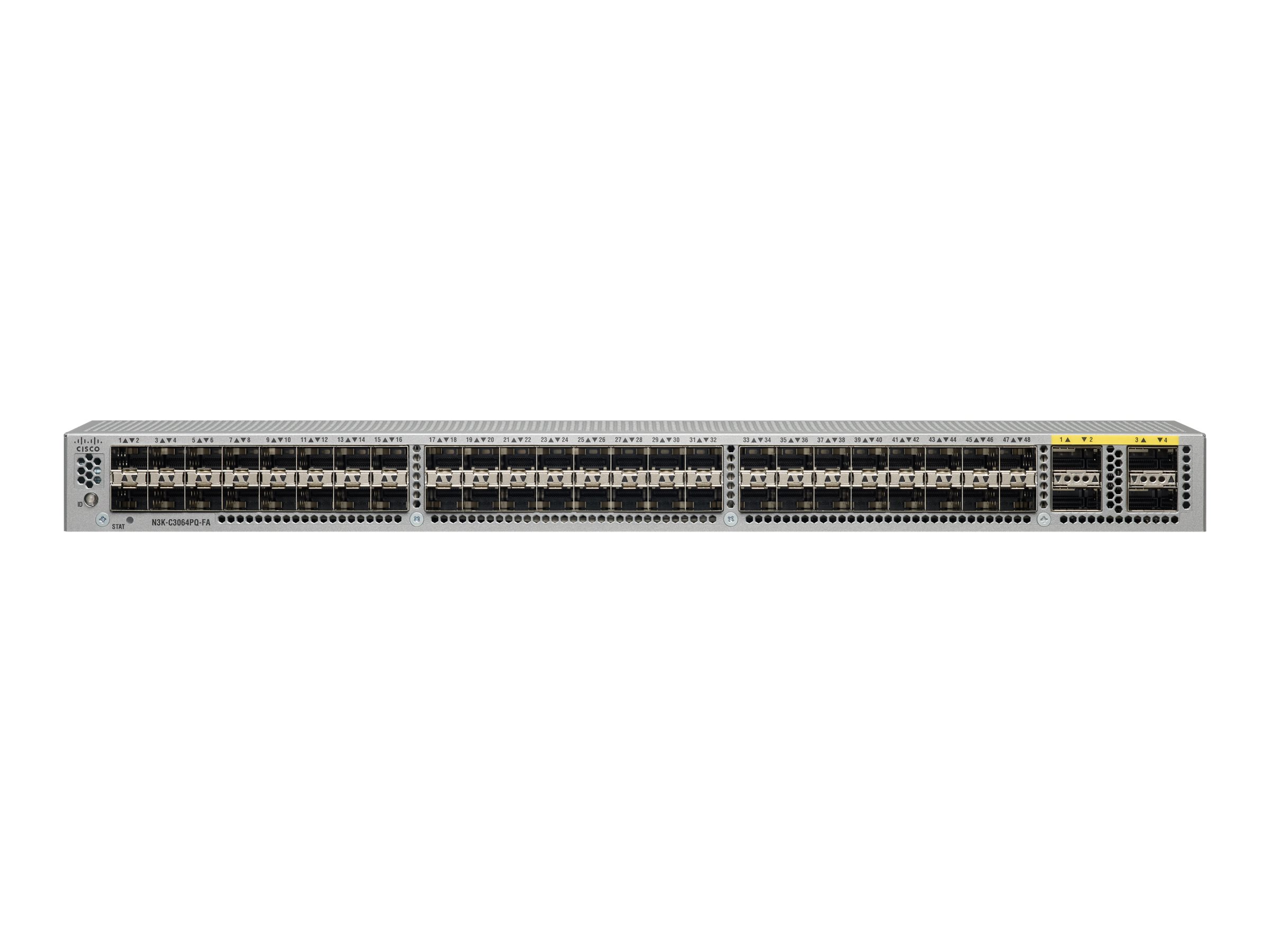

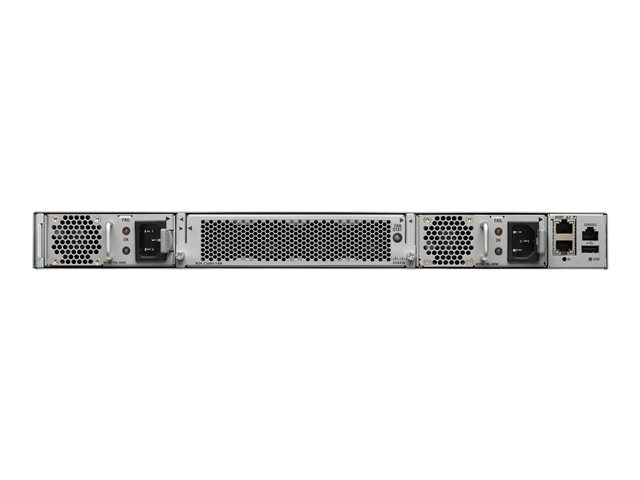

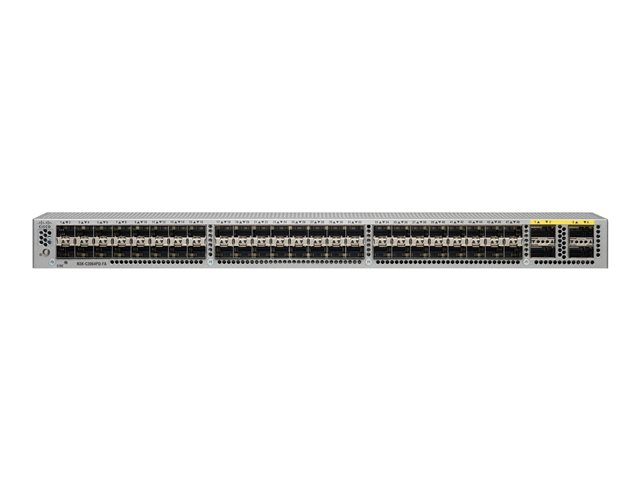

Cisco Nexus 3064-X - switch - 48 ports - Managed - rack-mountable
- Product code:
- P179059P | N3K-C3064PQ-10GX
- Cisco Nexus 3064-X
- Switch
- L3
- Managed
- 48 x SFP+ + 4 x QSFP+ (breakout compatible)
- front to back airflow
Cisco Nexus 3064-X - switch - 48 ports - Managed - rack-mountable
Sorry, this item is currently out of stock.
Sorry, this item is currently out of stock.
Don't worry, we've got loads of great alternatives! Explore our full range of available Switches.
Business Price Promise
Buy from us safe in the knowledge you’ve paid a great price.
If you find Argos, John Lewis, AO.com or eBuyer.com has the same product at a cheaper price, including voucher offers, we’ll match it – even up to 14 days after purchase.
Learn more
Product information
Cisco Nexus 3064-X - Switch - L3 - Managed - 48 x SFP+ + 4 x QSFP+ (breakout compatible) - front to back airflow - rack-mountable
Specifications
Basic Specifications
- Manufacturer's Part Number
- N3K-C3064PQ-10GX
- EAN
- 0882658475627
- Interfaces
- 10 Gigabit Ethernet
- Routing Protocol
- OSPF, RIP-2, IGMPv2, HSRP, VRRP, OSPFv2, PIM-SM, IGMPv3, OSPFv3, PIM-SSM, MSDP, static IPv4 routing, static IPv6 routing, ECMP, Bidirectional Forwarding Detection (BFD), CIDR
- Remote Management Protocol
- SNMP 1, SNMP 2, RMON, Telnet, SNMP 3, SSH-2, CLI
- Bundled Services
- 1 year warranty
- Device Type
- Switch - 48 ports - L3 - Managed
- Power Redundancy
- Yes
- Dimensions (WxDxH)
- 43.9 cm x 50.5 cm x 4.4 cm
- Capacity
- Virtual interfaces (VLANs): 4096 ¦ Multiple Spanning Tree Protocol instances: 64 ¦ Rapid Spanning Tree Protocol instances: 512 ¦ ACL entries (ingress): 2000 ¦ ACL entries (egress): 1000 ¦ OSPF routes: 256
- Manufacturer Warranty
- 1-year warranty
- MAC Address Table Size
- 128K entries
- Enclosure Type
- Front to back airflow rack-mountable 1U
- Power
- AC 120/230 V (50/60 Hz)
- Jumbo Frame Support
- 9216 bytes
- Ports
- 48 x SFP+ + 4 x QSFP+ (breakout compatible)
- Weight
- 9.3 kg
- Features
- BOOTP support, trunking, VLAN support, Syslog support, WRR queuing, Broadcast Storm Control, IPv6 support, Multicast Storm Control, Unicast Storm Control, WRED, sFlow, RSTP support, MSTP support, DHCP snooping, TFTP support, ACL support, QoS, DAI, EIGRP Stub Routing, STP Root Guard, URPF, UDLD, Rapid PVST+, DHCP relay, SPQ, GRE tunneling, NTP time synchronisation, 9MB packet buffer, STP PortFast, CoS, vPC technology, PTP, DSCP support
- Product Description
- Cisco Nexus 3064-X - switch - 48 ports - Managed - rack-mountable
- Subtype
- 10 Gigabit Ethernet
- Model
- Cisco Nexus 3064-X
- Performance
- Switching capacity: 1.28 Tbps ¦ Forwarding performance: 950 Mpps
- Compliant Standards
- IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3an, IEEE 802.3ba, IEEE 1588-2008
Expansion / Connectivity
- Interfaces
- 1 x console RJ-45 management ¦ 2 x 1000Base-T RJ-45 management ¦ 48 x 10GBase-X SFP+ ¦ 4 x 40Gbit LAN QSFP+ (breakout compatible) ¦ 1 x USB Type A
Power
- Power Device
- Internal power supply - hot-plug
- Installed Qty
- 2
- Max Supported Qty
- 2
- Power Redundancy
- Yes
- Power Redundancy Scheme
- 1+1
- Power Provided
- 400 Watt
- Voltage Required
- AC 120/230 V (50/60 Hz)
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 40 °C
- Humidity Range Operating
- 10 - 85% (non-condensing)
- Min Storage Temperature
- -40 °C
- Max Storage Temperature
- 70 °C
- Humidity Range Storage
- 5 - 95% (non-condensing)
General
- Device Type
- Switch - 48 ports - L3 - Managed
- Enclosure Type
- Front to back airflow rack-mountable 1U
- Subtype
- 10 Gigabit Ethernet
- Ports
- 48 x SFP+ + 4 x QSFP+ (breakout compatible)
- Performance
- Switching capacity: 1.28 Tbps ¦ Forwarding performance: 950 Mpps
- Capacity
- Virtual interfaces (VLANs): 4096 ¦ Multiple Spanning Tree Protocol instances: 64 ¦ Rapid Spanning Tree Protocol instances: 512 ¦ ACL entries (ingress): 2000 ¦ ACL entries (egress): 1000 ¦ OSPF routes: 256
- MAC Address Table Size
- 128K entries
- Jumbo Frame Support
- 9216 bytes
- Routing Protocol
- OSPF, RIP-2, IGMPv2, HSRP, VRRP, OSPFv2, PIM-SM, IGMPv3, OSPFv3, PIM-SSM, MSDP, static IPv4 routing, static IPv6 routing, ECMP, Bidirectional Forwarding Detection (BFD), CIDR
- Remote Management Protocol
- SNMP 1, SNMP 2, RMON, Telnet, SNMP 3, SSH-2, CLI
- Encryption Algorithm
- AES
- Authentication Method
- RADIUS, TACACS+, MS-CHAP, Secure Shell v.2 (SSH2)
- Features
- BOOTP support, trunking, VLAN support, Syslog support, WRR queuing, Broadcast Storm Control, IPv6 support, Multicast Storm Control, Unicast Storm Control, WRED, sFlow, RSTP support, MSTP support, DHCP snooping, TFTP support, ACL support, QoS, DAI, EIGRP Stub Routing, STP Root Guard, URPF, UDLD, Rapid PVST+, DHCP relay, SPQ, GRE tunneling, NTP time synchronisation, 9MB packet buffer, STP PortFast, CoS, vPC technology, PTP, DSCP support
- Compliant Standards
- IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3an, IEEE 802.3ba, IEEE 1588-2008
- Flash Memory
- 2 GB
Manufacturer Warranty
- Service & Support
- Limited warranty - advance parts replacement - 1 year - response time: 10 days
Dimensions & Weight
- Width
- 43.9 cm
- Depth
- 50.5 cm
- Height
- 4.4 cm
- Weight
- 9.3 kg
Miscellaneous
- Compliant Standards
- CISPR 22 Class A, BSMI CNS 13438 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, EN55022 Class A, AS/NZS 60950-1, ICES-003 Class A, RoHS, UL 60950-1 Second Edition, GB 4943, Directive 2004/108/EC, CSA C22.2 No. 60950-1 Second Edition, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, Directive 2006/95/EC, VCCI Class A, KN24, KN22 Class A, EN 300386
Software / System Requirements
- Software Included
- Cisco NX-OS Layer 3 Base Services
