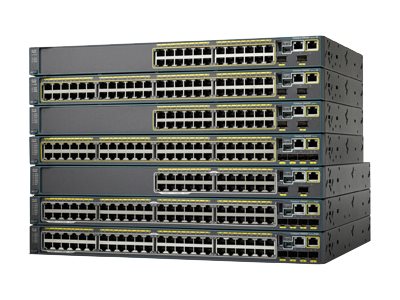

Cisco Catalyst 2960S-F48TS-L - switch - 48 ports - Managed - rack-mountable
- Product code:
- P180219P | WS-C2960S-F48TS-L
- Product Data Sheet
- User Manual
- Cisco Catalyst 2960S-F48TS-L
- Switch
- Managed
- 48 x 10/100 + 4 x SFP
Cisco Catalyst 2960S-F48TS-L - switch - 48 ports - Managed - rack-mountable
Sorry, this item is currently out of stock.
Sorry, this item is currently out of stock.
Don't worry, we've got loads of great alternatives! Explore our full range of available Switches.
Business Price Promise
Buy from us safe in the knowledge you’ve paid a great price.
If you find Argos, John Lewis, AO.com or eBuyer.com has the same product at a cheaper price, including voucher offers, we’ll match it – even up to 14 days after purchase.
Learn more
Product information
Cisco Catalyst 2960S-F48TS-L - Switch - Managed - 48 x 10/100 + 4 x SFP - desktop, rack-mountable
Specifications
Basic Specifications
- Manufacturer's Part Number
- WS-C2960S-F48TS-L
- EAN
- 4053162308046
- Interfaces
- Gigabit Ethernet
- Remote Management Protocol
- SNMP 1, SNMP 2, RMON 2, Telnet, SNMP 3, SNMP 2c, HTTP, SSH, CLI
- Bundled Services
- Limited lifetime warranty
- Device Type
- Switch - 48 ports - Managed - stackable
- Dimensions (WxDxH)
- 44.5 cm x 31.4 cm x 4.5 cm
- Capacity
- Virtual interfaces (VLANs): 255
- Manufacturer Warranty
- Limited lifetime warranty
- Enclosure Type
- Rack-mountable 1U
- Power
- AC 120/230 V (50/60 Hz)
- Jumbo Frame Support
- 9216 bytes
- Ports
- 48 x 10/100 + 4 x SFP
- Weight
- 4.8 kg
- Features
- Layer 2 switching, auto-negotiation, ARP support, Cisco Fast EtherChannel, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, RSTP support, MSTP support, DHCP snooping, DTP support, PAgP support, TFTP support, ACL support, QoS, RADIUS support, DAI, UDLD, SRR, LACP, RSPAN, PVRST, MVR, SPQ
- Product Description
- Cisco Catalyst 2960S-F48TS-L - switch - 48 ports - Managed - rack-mountable
- Subtype
- Gigabit Ethernet
- Model
- Cisco Catalyst 2960S-F48TS-L
- Performance
- Switching capacity: 176 Gbps ¦ Forwarding performance: 88 Gbps
- Compliant Standards
- IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3ah, IEEE 802.1ab (LLDP)
Expansion / Connectivity
- Interfaces
- 48 x 10Base-T/100Base-TX - RJ-45 ¦ 1 x USB Type A ¦ 4 x SFP (mini-GBIC)
- Expansion Slots
- 1 (total) / 1 (free) x Stacking Module
Power
- Power Device
- Internal power supply
- Voltage Required
- AC 120/230 V (50/60 Hz)
Environmental Parameters
- Min Operating Temperature
- -5 °C
- Max Operating Temperature
- 45 °C
- Humidity Range Operating
- 10 - 95% (non-condensing)
- Min Storage Temperature
- -25 °C
- Max Storage Temperature
- 70 °C
- Humidity Range Storage
- 10 - 95% (non-condensing)
General
- Device Type
- Switch - 48 ports - Managed - stackable
- Enclosure Type
- Desktop, rack-mountable 1U
- Subtype
- Gigabit Ethernet
- Ports
- 48 x 10/100 + 4 x SFP
- Performance
- Switching capacity: 176 Gbps ¦ Forwarding performance: 88 Gbps
- Capacity
- Virtual interfaces (VLANs): 255
- Jumbo Frame Support
- 9216 bytes
- Remote Management Protocol
- SNMP 1, SNMP 2, RMON 2, Telnet, SNMP 3, SNMP 2c, HTTP, SSH, CLI
- Authentication Method
- Secure Shell (SSH), RADIUS, TACACS+
- Features
- Layer 2 switching, auto-negotiation, ARP support, Cisco Fast EtherChannel, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, RSTP support, MSTP support, DHCP snooping, DTP support, PAgP support, TFTP support, ACL support, QoS, RADIUS support, DAI, UDLD, SRR, LACP, RSPAN, PVRST, MVR, SPQ
- Compliant Standards
- IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3ah, IEEE 802.1ab (LLDP)
- RAM
- 128 MB
- Flash Memory
- 64 MB
- Status Indicators
- Port status, port transmission speed, port duplex mode, system, link/activity
Manufacturer Warranty
- Service & Support
- Limited warranty - lifetime
Dimensions & Weight
- Width
- 44.5 cm
- Depth
- 31.4 cm
- Height
- 4.5 cm
- Weight
- 4.8 kg
Miscellaneous
- MTBF
- 738,000 hours
- Compliant Standards
- TUV GS, CISPR 24, NOM, EN55024, CISPR 22, CB, MIC, RoHS, IEC 60950-1, EN 60950-1, UL 60950-1 Second Edition, FCC Part 15 A, CSA C22.2 No. 60950-1
Software / System Requirements
- Software Included
- Cisco IOS LAN Base
