ATEN CubiQ CS1784A - KVM / audio switch - 4 ports
- Product code:
- P110023P | CS1784A
- Product Data Sheet
- User Manual
- Device Type - KVM / audio switch - 4 ports - USB
- Additional Features - Firmware upgradable, built-in 2 port Hi-Speed USB hub, HDCP compliant
ATEN CubiQ CS1784A - KVM / audio switch - 4 ports
Sorry, this item is currently out of stock.
Sorry, this item is currently out of stock.
Don't worry, we've got loads of great alternatives! Explore our full range of available Switches.
Business Price Promise
Buy from us safe in the knowledge you’ve paid a great price.
If you find Argos, John Lewis, AO.com or eBuyer.com has the same product at a cheaper price, including voucher offers, we’ll match it – even up to 14 days after purchase.
Learn more
Product information
The CS1784A USB DVI dual link KVMP switch combines the capabilities of a 4-port KVM switch with a 2-port USB hub, while providing a DVI monitor interface and audio support. Moreover it carries advanced features, such as 120 Hz 3D display support, gaming keyboard compatibility and port selection/switching using a mouse, aimed at giving you flexibility, convenience and enjoyment.
ATEN CubiQ CS1784A - KVM / audio switch - 4 x KVM / audio - 1 local user - desktop
Specifications
Basic Specifications
- Manufacturer's Part Number
- CS1784A
- EAN
- 4710423777095
- Interfaces
- KVM
- Device Type
- KVM / audio switch - 4 ports
- Dimensions (WxDxH)
- 27 cm x 8.7 cm x 5.5 cm
- KVM Users Qty
- 1 local user
- Enclosure Type
- Desktop
- Ports
- 4 x KVM / audio
- Weight
- 0.93 kg
- Features
- Firmware upgradable, built-in 2-port USB 2.0 hub, HDCP compliant
- Product Description
- ATEN CubiQ CS1784A - KVM / audio switch - 4 ports
- Subtype
- KVM
- Model
- ATEN CubiQ CS1784A
- Compliant Standards
- USB 2.0
Expansion / Connectivity
- Interfaces

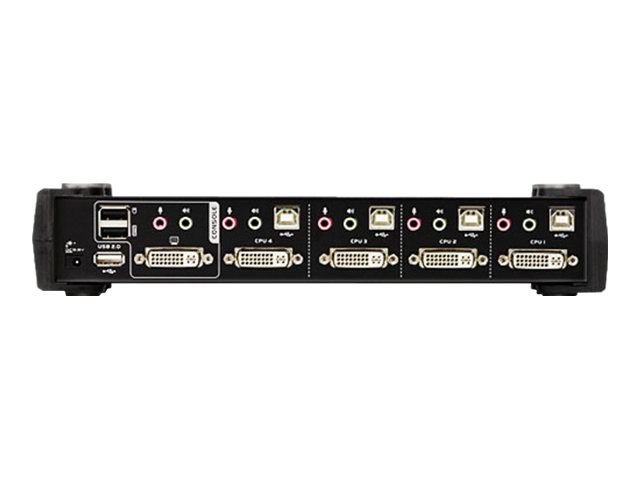

- 1 x keyboard (USB) Type A ¦ 1 x mouse (USB) Type A ¦ 1 x DVI-I (dual link) ¦ 2 x audio output mini-jack ¦ 2 x microphone input mini-jack ¦ 2 x keyboard (USB) / mouse (USB) Type B ¦ 4 x DVI-I (dual link) ¦ 4 x audio output mini-jack ¦ 4 x microphone input mini-jack ¦ 2 x USB 2.0 Type A
Power
- Power Device
- External power adapter
- Power Consumption Operational
- 10 watt
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 50 °C
- Humidity Range Operating
- 0 - 80% (non-condensing)
- Min Storage Temperature
- -20 °C
- Max Storage Temperature
- 60 °C
General
- Device Type
- KVM / audio switch - 4 ports
- Enclosure Type
- Desktop
- Subtype
- KVM
- Ports
- 4 x KVM / audio
- KVM Local Users Qty
- 1 local user
- Keyboard / Mouse Interface
- USB
- Max Resolution
- 2560 x 1600
- Features
- Firmware upgradable, built-in 2-port USB 2.0 hub, HDCP compliant
- Compliant Standards
- USB 2.0
Dimensions & Weight
- Width
- 27 cm
- Depth
- 8.7 cm
- Height
- 5.5 cm
- Weight
- 0.93 kg
Miscellaneous
- Compliant Standards
- RoHS
