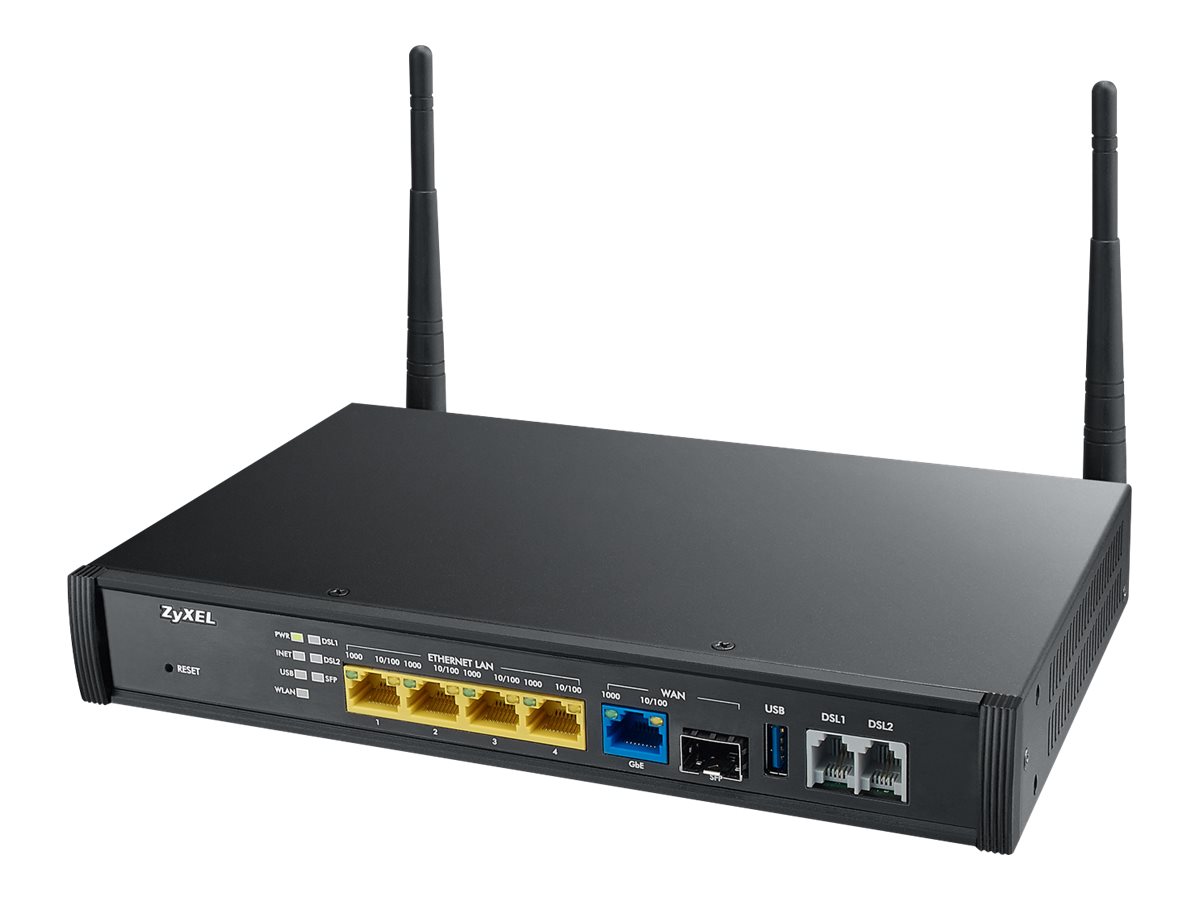

Zyxel SBG3500-N - wireless router - DSL modem - Wi-Fi - rack-mountable

Product code:
P213526P | SBG3500-N000-EU01V1F
  • Zyxel SBG3500-N
  • Wireless router
  • DSL modem 4-port switch
  • 1GbE
  • WAN ports: 2 2.4 GHz
  • rack-mountable
  • Manufacturer's Logo

Zyxel SBG3500-N - wireless router - DSL modem - Wi-Fi - rack-mountable

Product unavailable

Sorry, this item is currently out of stock.

View all Network hardware
Product unavailable

Sorry, this item is currently out of stock.

Don't worry, we've got loads of great alternatives! Explore our full range of available Network hardware.

View all Network hardware
Business Price Promise

Buy from us safe in the knowledge you’ve paid a great price.

If you find Argos, John Lewis, AO.com or eBuyer.com has the same product at a cheaper price, including voucher offers, we’ll match it – even up to 14 days after purchase.

Learn more
Product information

Zyxel SBG3500-N - Wireless router - DSL modem 4-port switch - 1GbE - WAN ports: 2 2.4 GHz - rack-mountable

View more
Specifications

Basic Specifications

Manufacturer's Part Number
SBG3500-N000-EU01V1F
EAN
4718937579105
Routing Protocol
RIP-1, RIP-2
Capacity
Concurrent IPSec VPN tunnels: 20 ¦ Virtual interfaces (VLANs): 16 ¦ Manageable access points: 2 (maximum 10) ¦ Maximum number of configured SSIDs: 4 ¦ NAT sessions: 20000 ¦ ACL rules: 256
Enclosure Type
Rack-mountable
Model
Zyxel SBG3500-N
Digital Signaling Protocol
VDSL, ADSL2, ADSL2+, READSL, VDSL2
Data Link Protocol
Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n
Compliant Standards
IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.1x, Wi-Fi CERTIFIED, IEEE 802.11n
Product Type
Router
Remote Management Protocol
SNMP 1, SNMP 2c, HTTP, TR-069, TR-098, TR-111
Network / Transport Protocol
PPTP, L2TP, IPSec, PPPoE, PPPoA, IPoA, IPoE, FTP
Device Type
Wireless router - DSL modem - 4-port switch (integrated)
Dimensions (WxDxH)
24.2 cm x 17 cm x 3.6 cm
Localisation
Europe
Frequency Band
2.4 GHz
Weight
1.19 kg
Data Transfer Rate
300 Mbps
Features
Firewall protection, auto-sensing per device, NAT support, auto-negotiation, SNAT support, auto-uplink (auto MDI/MDI-X), Syslog support, SPI, DoS attack prevention, dynamic DNS server, IPv6 support, DDos attack prevention, WMM support, ACS, file sharing, ACL support, QoS, WPS, IPSec passthrough, VPN failover, WAN failover, DHCP server, Multiple SSID support, DNS proxy, DHCP relay, 3G/4G USB Dongle Support, CAPWAP support, DHCP client, MIB, dual firmware images, Captive Portal, PPTP passthrough, VPN auto-reconnection, VPN fallback, L2TP passthrough, WAN fallback, WAN load balancing, SRA, ZWO, ZyXEL APC Lite, Rom-D support
Product Description
Zyxel SBG3500-N - wireless router - DSL modem - Wi-Fi - rack-mountable
Performance
Firewall throughput: 800 Mbps ¦ VPN throughput: 40 Mbps
WAN Ports Qty
2

Expansion / Connectivity

Interfaces
LAN: 4 x 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ WAN: 1 x 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ USB: 1 x 4 pin USB Type A ¦ WAN: 1 x SFP (mini-GBIC) ¦ Phone line: 2 x VDSL2 / ADSL2+ - RJ-11 ¦ Management: 1 x 9 pin D-Sub (DB-9)

Power

Power Device
External power adapter
Power Consumption Operational
15.3 Watt

Environmental Parameters

Min Operating Temperature
0 °C
Max Operating Temperature
40 °C
Humidity Range Operating
10 - 95% (non-condensing)

General

Device Type
Wireless router - 4-port switch (integrated)
Enclosure Type
Rack-mountable
Connectivity Technology
Wireless, wired
Data Link Protocol
Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n
Frequency Band
2.4 GHz
Data Transfer Rate
300 Mbps
Performance
Firewall throughput: 800 Mbps ¦ VPN throughput: 40 Mbps
Capacity
Concurrent IPSec VPN tunnels: 20 ¦ Virtual interfaces (VLANs): 16 ¦ Manageable access points: 2 (maximum 10) ¦ Maximum number of configured SSIDs: 4 ¦ NAT sessions: 20000 ¦ ACL rules: 256
MAC Address Table Size
2014 entries
Network / Transport Protocol
PPTP, L2TP, IPSec, PPPoE, PPPoA, IPoA, IPoE, FTP
Routing Protocol
RIP-1, RIP-2
Remote Management Protocol
SNMP 1, SNMP 2c, HTTP, TR-069, TR-098, TR-111
Encryption Algorithm
DES, Triple DES, MD5, AES, TLS, SHA-1, TTLS, TKIP, WPA, WPA2, WPA-PSK, 128-bit AES, 192-bit AES, 256-bit AES, WPA2-PSK
Authentication Method
RADIUS, PAP, CHAP, Radio Service Set ID (SSID), MS-CHAP, MS-CHAP v.2, Extensible Authentication Protocol (EAP)
Features
Firewall protection, auto-sensing per device, NAT support, auto-negotiation, SNAT support, auto-uplink (auto MDI/MDI-X), Syslog support, SPI, DoS attack prevention, dynamic DNS server, IPv6 support, DDos attack prevention, WMM support, ACS, file sharing, ACL support, QoS, WPS, IPSec passthrough, VPN failover, WAN failover, DHCP server, Multiple SSID support, DNS proxy, DHCP relay, 3G/4G USB Dongle Support, CAPWAP support, DHCP client, MIB, dual firmware images, Captive Portal, PPTP passthrough, VPN auto-reconnection, VPN fallback, L2TP passthrough, WAN fallback, WAN load balancing, SRA, ZWO, ZyXEL APC Lite, Rom-D support
Compliant Standards
IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.1x, Wi-Fi CERTIFIED, IEEE 802.11n, EN 61000-3-3:2008, EN 61000-3-2:2006+A1:2009+A2:2009, EN 50564:2011, EN 50581:2012, EN 300 328 V1.8.1:2012, EN55022:2010, EN 301 489-1 V1.9.2, EN 301 489-17 V2.2.1, EN 50563:2011, EN 55024:2010, EN 60950-1:2006+A11:2009+A1:2010+A12:2011
Status Indicators
Power, WLAN, WAN, USB, ADSL, SFP

Communications

Type
DSL modem
Digital Signaling Protocol
VDSL, ADSL2, ADSL2+, READSL, VDSL2
Protocols & Specifications
ITU G.992.1 (G.DMT), ITU G.992.2 (G.Lite), ITU G.994.1 (G.hs), ITU G.997.1, ITU G.992.3 (G.DMT.bis), ITU G.992.5, ITU G.993.1, ITU G.993.2, ITU G.992.5 Annex A, ITU G.992.5 Annex B

Aerial

Aerial
External detachable
Antenna Qty
2
Gain Level
3 dBi

Dimensions & Weight

Width
24.2 cm
Depth
17 cm
Height
3.6 cm
Weight
1.19 kg

Miscellaneous

Cables Included
1 x network cable ¦ 1 x modem cable
Rack Mounting Kit
Included
MTBF
300,000 years
Localisation
Europe
