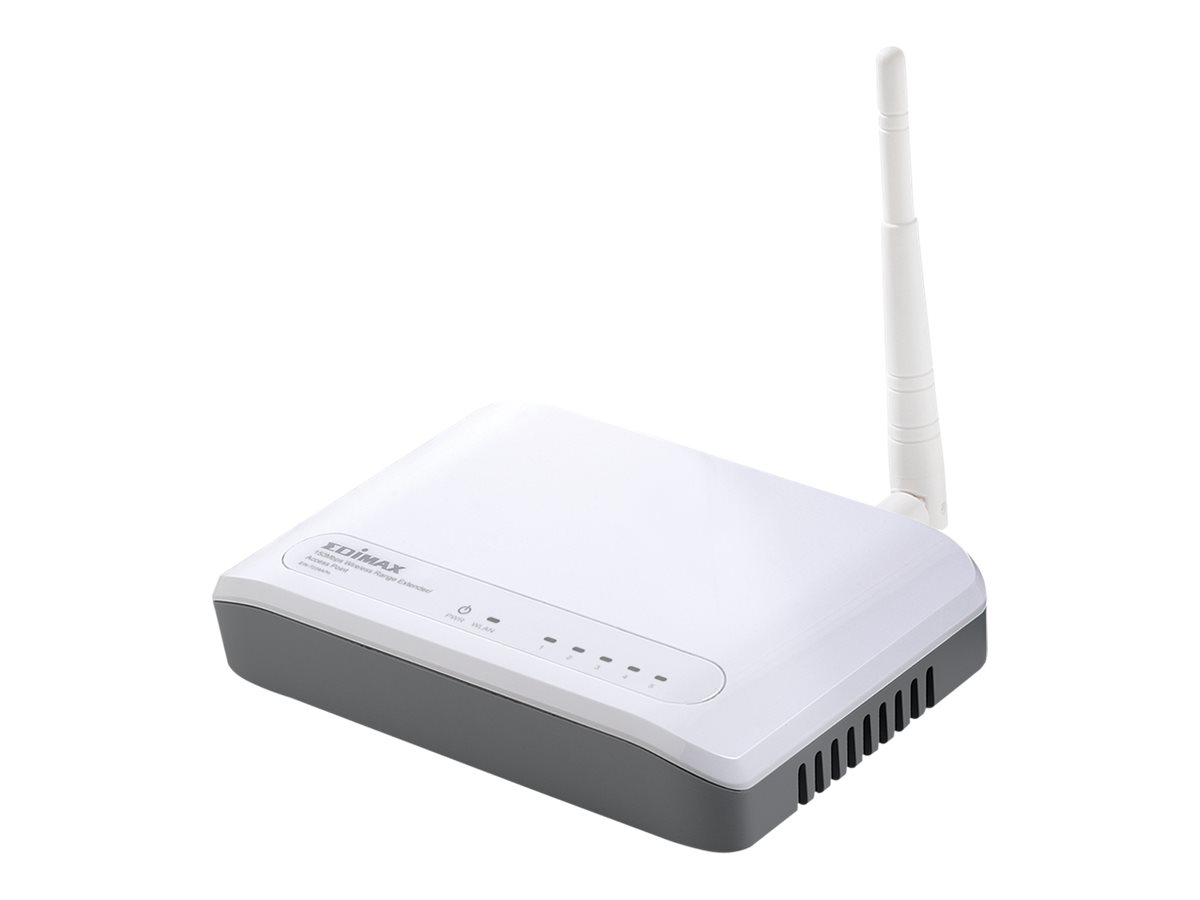

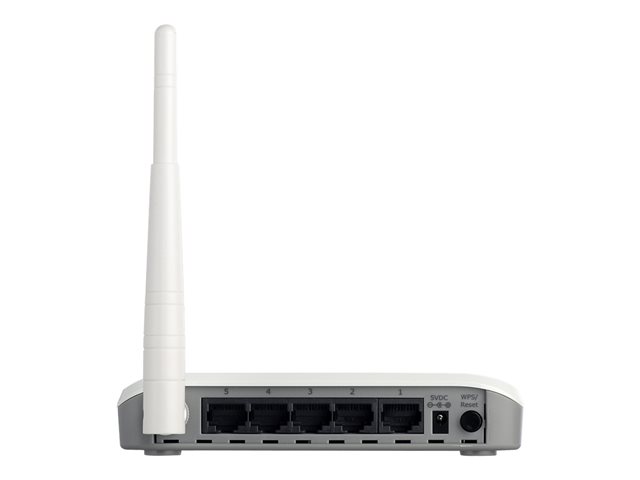

Edimax EW-7228APn - radio access point - Wi-Fi

Product code:
P110366P | EW-7228APN
  • Enclosure Type - External
  • Dimensions (WxDxH) - 13.6 cm x 9 cm x 2.6 cm
  • Data Link Protocol - IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
  • Ports Qty - 5
  • RAM Installed ( Max ) - 16 MB
  • Manufacturer's Logo

Edimax EW-7228APn - radio access point - Wi-Fi

Product unavailable

Sorry, this item is currently out of stock.

View all Network hardware
Product unavailable

Sorry, this item is currently out of stock.

Don't worry, we've got loads of great alternatives! Explore our full range of available Network hardware.

View all Network hardware
Business Price Promise

Buy from us safe in the knowledge you’ve paid a great price.

If you find Argos, John Lewis, AO.com or eBuyer.com has the same product at a cheaper price, including voucher offers, we’ll match it – even up to 14 days after purchase.

Learn more
Product information

Compatability Acting as a bridge between the wired Ethernet and the 2.4GHz IEEE 802.11b/g/n wireless LAN, this wireless LAN range extender/access point can let your wireless LAN client stations access both the wired and the wireless network nodes.

Except for the basic security control by using ESSID and 64/128 bits key length WEP encryption, the EW-7228APn also supports the advanced security features, like MAC access control, IEEE 802.1x authentication, TKIP, AES and hide ESSID. It provides a total solution for you building up a secure wireless LAN network environment that can prevent from all kinds of hacker intrusion. The EW-7228APn allows you to configure this range extender/access point through the friendly web user interface with a browser.

The EW-7228APn has adapted a clever protocol in smart transmission power control. When the wireless is idle, the range extender/access point smartly adjusts transmission output by distance and CPU offload to reduce power consumption 26%-39% comparing the power consumption under data is transmitted.

Edimax EW-7228APn - Radio access point - 5 ports - Wi-Fi - 2.4 GHz

View more
Specifications

Basic Specifications

Manufacturer's Part Number
EW-7228APN
EAN
4710700927335
Flash Memory
2 MB
RAM
16 MB
Enclosure Type
External
RAM Installed ( Max )
16 MB
Model
Edimax EW-7228APn
Data Link Protocol
IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Ports Qty
5
Remote Management Protocol
HTTP
Device Type
Radio access point
Form Factor
External
Dimensions (WxDxH)
13.6 cm x 9 cm x 2.6 cm
Frequency Band
2.4 GHz
Features
DHCP support, repeating mode, auto-fallback, MAC address filtering, Wireless Distribution System (WDS) support, firmware upgradable, Trivial File Transfer Protocol (TFTP) support, Wi-Fi Protected Setup (WPS), DHCP server, Multiple SSID support, hidden SSI
Product Description
Edimax EW-7228APn - radio access point - Wi-Fi
Flash Memory Installed (Max)
2 MB

Networking

Form Factor
External
Ports Qty
5
Connectivity Technology
Wireless
Data Transfer Rate
150 Mbps
Line Coding Format
DBPSK, DQPSK, CCK, 64 QAM, BPSK, QPSK, 16 QAM
Data Link Protocol
IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Spread Spectrum Method
DSSS
Remote Management Protocol
HTTP
Frequency Band
2.4 GHz
Status Indicators
Power, WLAN, LAN
Features
DHCP support, repeating mode, auto-fallback, MAC address filtering, Wireless Distribution System (WDS) support, firmware upgradable, Trivial File Transfer Protocol (TFTP) support, Wi-Fi Protected Setup (WPS), DHCP server, Multiple SSID support, hidden SSID, wireless bridge mode, Green WLAN
Encryption Algorithm
AES, 128-bit WEP, 64-bit WEP, TKIP, WPA, WPA2
Authentication Method
RADIUS, Extended Service Set ID (ESSID), Basic Service Set Identifier (BSSID)
Compliant Standards
IEEE 802.11b, IEEE 802.11g, IEEE 802.1x, IEEE 802.11n

Expansion / Connectivity

Interfaces
5 x 100Base-TX - RJ-45

Power

Power Device
External power adapter

Environmental Parameters

Min Operating Temperature
0 °C
Max Operating Temperature
40 °C
Humidity Range Operating
10 - 90% (non-condensing)

General

Device Type
Radio access point
Width
13.6 cm
Depth
9 cm
Height
2.6 cm

Aerial

Antenna
External detachable
Antenna Qty
1
Gain Level
3 dBi

Miscellaneous

Compliant Standards
FCC, RoHS

Software / System Requirements

Software Included
Drivers & Utilities

Processor / Memory / Storage

RAM
16 MB SDRAM
Flash Memory
2 MB
