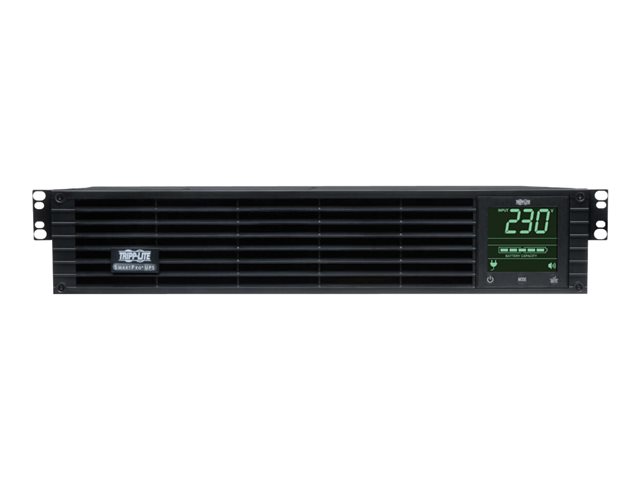

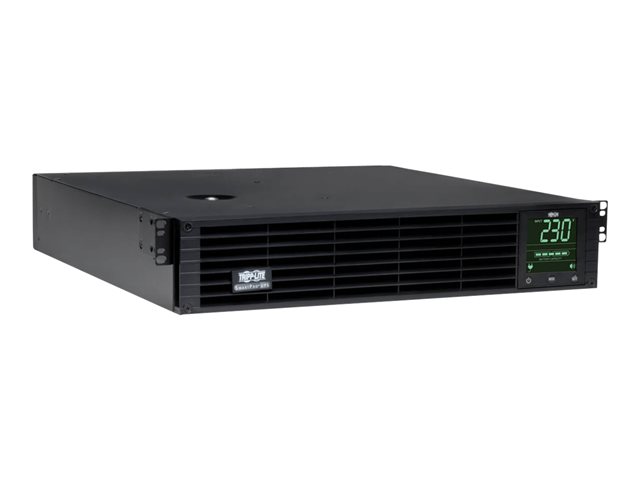

Eaton Tripp Lite Series UPS Smart 2200VA 1920W Rackmount AVR 230V Pure Sine Wave C13 2U - UPS - 1920 Watt - 2200 VA
- Product code:
- P275129P | SMX2200XLRT2U
- Product Data Sheet
- User Manual
- Eaton Tripp Lite Series UPS Smart 2200VA 1920W Rackmount AVR 230V Pure Sine Wave C13 2U
- UPS
- AC 220/230/240 V
- 1920 Watt
Eaton Tripp Lite Series UPS Smart 2200VA 1920W Rackmount AVR 230V Pure Sine Wave C13 2U - UPS - 1920 Watt - 2200 VA
Sorry, this item is currently out of stock.
Sorry, this item is currently out of stock.
Don't worry, we've got loads of great alternatives! Explore our full range of available Network hardware.
Business Price Promise
Buy from us safe in the knowledge you’ve paid a great price.
If you find Argos, John Lewis, AO.com or eBuyer.com has the same product at a cheaper price, including voucher offers, we’ll match it – even up to 14 days after purchase.
Learn more
Product information
Eaton Tripp Lite Series UPS Smart 2200VA 1920W Rackmount AVR 230V Pure Sine Wave C13 2U - UPS - AC 220/230/240 V - 1920 Watt - 2200 VA - output connectors: 8 - 2U - 19" - attractive black
Specifications
Basic Specifications
- Manufacturer's Part Number
- SMX2200XLRT2U
- EAN
- 0037332124562
- Colour
- Attractive black
- Input Voltage
- AC 220/230/240 V
- Model
- Eaton Tripp Lite Series UPS Smart 2200VA 1920W Rackmount AVR 230V Pure Sine Wave C13 2U

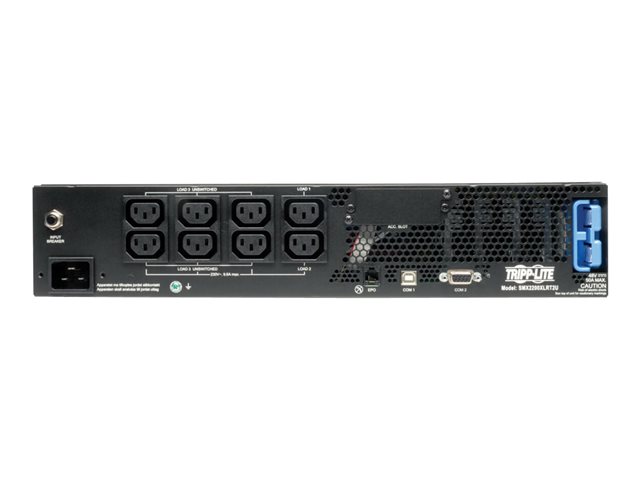

- Output connectors
- 8 x power IEC 60320 C13
- Run Time (Up To)
- 5 min at full load
- Device Type
- UPS - external
- Dimensions (WxDxH)
- 44.5 cm x 48.3 cm x 9 cm
- Manufacturer Warranty
- 2-year warranty
- Battery Form Factor
- Internal
- Weight
- 27.5 kg
- Input Connectors
- 1 x power IEC 60320 C20
- Power Capacity
- 1920 Watt / 2200 VA
- Product Description
- Eaton Tripp Lite Series UPS Smart 2200VA 1920W Rackmount AVR 230V Pure Sine Wave C13 2U - UPS - 1920 Watt - 2200 VA
- Battery
- Lead Acid expandable
- Rack Size
- 19" - 2U
- Output Voltage
- AC 220/230/240 V + 8% / - 19%
Dimensions & Weight (Shipping)
- Shipping Width
- 59.5 cm
- Shipping Depth
- 51 cm
- Shipping Height
- 23 cm
- Shipping Weight
- 32.4 kg
Expansion / Connectivity
- Interfaces
- 1 x management (USB) - 4 pin USB Type B ¦ 1 x management (RS-232) - 9 pin D-Sub (DB-9)
- Expansion Slots
- 1 (total) / 1 (free) x Expansion Slot
Power Device
- UPS Technology
- Line interactive
- Input Voltage
- AC 220/230/240 V
- Input Voltage Range
- AC 158 - 290 V
- Frequency Provided
- 50/60 Hz
- Frequency Required
- 50/60 Hz
- Input Connectors
- 1 x power IEC 60320 C20
- Power Output Connectors Details
- 8 x power IEC 60320 C13
- Output Voltage
- AC 220/230/240 V + 8% / - 19% - 50/60 Hz
- Power Capacity
- 1920 Watt / 2200 VA
- Output Waveform
- Sinewave
- Surge Suppression
- Yes
- Surge Energy Rating
- 350 Joules
- Circuit Protection
- Circuit breaker
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 40 °C
- Humidity Range Operating
- 0 - 95%
General
- Device Type
- UPS - external
- Battery Enclosure Type
- Internal
- Height (Rack Units)
- 2U
- Rack Size
- 19"
- Colour
- Attractive black
Battery
- Type
- Expandable
- Technology
- Lead Acid
- Voltage Provided
- 48 V
- Run Time (Up To)
- 5 min at full load
- Recharge Time
- 4 hours
Manufacturer Warranty
- Service & Support
- Limited warranty - 2 years
Dimensions & Weight
- Width
- 44.5 cm
- Depth
- 48.3 cm
- Height
- 9 cm
- Weight
- 27.5 kg
Miscellaneous

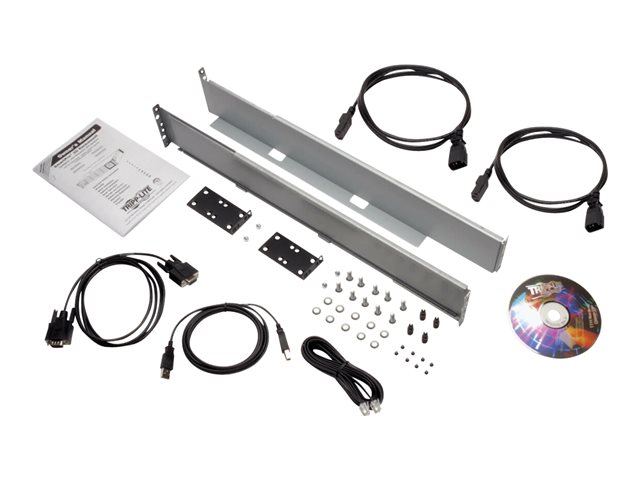

- Cables Included
- 3 x power cable - external
- Features
- Audible alarm, emergency power off, Automatic Voltage Regulation (AVR), LED indicators
- Compliant Standards
- FCC Class A certified, TUV GS, GOST, SASO, RoHS
Software / System Requirements
- Software Included
- TrippLite PowerAlert
