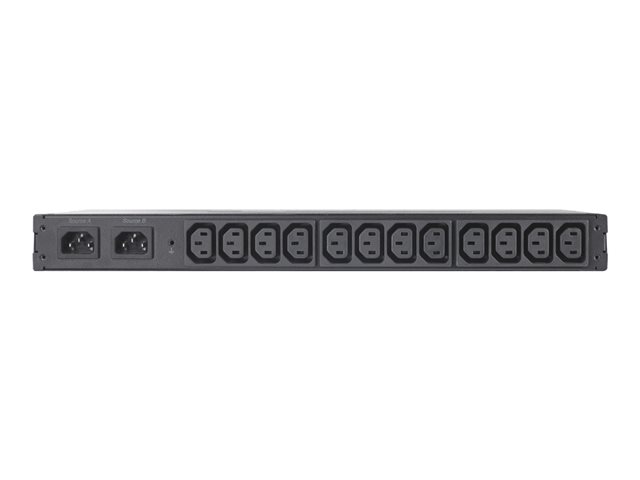

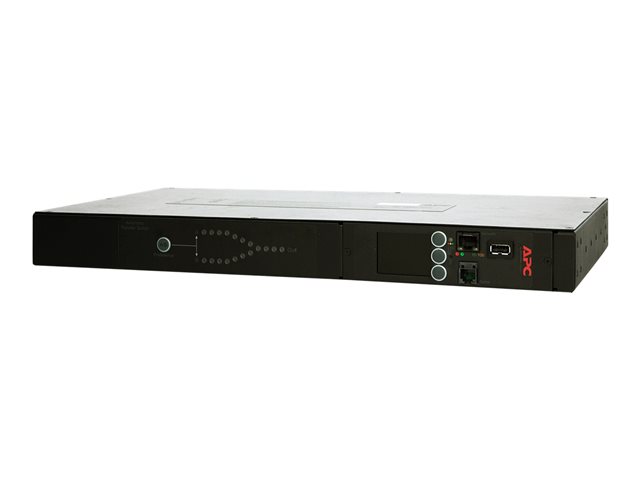

APC Rack Automatic Transfer Switch AP4421 - redundant switch
- Product code:
- P253134P | AP4421
- Product Data Sheet
- User Manual
- APC Rack Automatic Transfer Switch AP4421
- Redundant switch (rack-mountable)
- AC 230 V
- Ethernet 10/100, RS-232, USB
APC Rack Automatic Transfer Switch AP4421 - redundant switch
Sorry, this item is currently out of stock.
Sorry, this item is currently out of stock.
Don't worry, we've got loads of great alternatives! Explore our full range of available Network hardware.
Business Price Promise
Buy from us safe in the knowledge you’ve paid a great price.
If you find Argos, John Lewis, AO.com or eBuyer.com has the same product at a cheaper price, including voucher offers, we’ll match it – even up to 14 days after purchase.
Learn more
Product information
APC Rack Automatic Transfer Switch AP4421 - Redundant switch (rack-mountable) - AC 230 V - Ethernet 10/100, RS-232, USB - output connectors: 12 - 1U - black - for P/N: AR106SH6, AR109SH4, AR109SH6, AR112SH4, AR112SH6, SCL400RMJ1U, SCL500RMI1UNC
Specifications
Basic Specifications
- Manufacturer's Part Number
- AP4421
- EAN
- 0731304333401
- Networking
- Ethernet 10/100, RS-232, USB
- Designed For
- P/N: AR106SH4, AR106SH6, AR109SH4, AR109SH6, AR112SH4, AR112SH6, AR3003, AR3003SP, AR3006, AR3006SP, AR3103, AR3103SP, AR3106, AR3106SP, SCL400RMJ1U, SCL500RMI1UNC, SMT2200R2I-AR, SMT3000I-AR, SMT3000R2I-AR, SRT1000RMXLI, SRT1000RMXLI-NC, SRT1500RMXLI, SRT1500XLI, SRT2200XLI-KR, SRT5KRMXLW-TW
- Colour
- Black
- Input Voltage
- AC 230 V
- Model
- APC Rack Automatic Transfer Switch AP4421
- Output connectors
- 12 x power IEC 60320 C13 10 A
- Remote Management Protocol
- SNMP, Telnet, HTTP, SSH
- Device Type
- Redundant switch - rack-mountable
- Dimensions (WxDxH)
- 43.2 cm x 23.6 cm x 4.4 cm
- Manufacturer Warranty
- 2-year warranty
- Weight
- 3.93 kg
- Input Connectors
- 2 x power IEC 60320 C14
- Product Description
- APC Rack Automatic Transfer Switch AP4421 - redundant switch
- Rack Size
- 1U
- Output Voltage
- AC 230 V
- Included Accessories
- Mounting kit, rack mounting brackets
Networking
- Remote Management Interface
- Ethernet 10/100, RS-232, USB
- Remote Management Protocol
- SNMP, Telnet, HTTP, SSH
Dimensions & Weight (Shipping)
- Shipping Width
- 60 cm
- Shipping Depth
- 34.9 cm
- Shipping Height
- 11.4 cm
- Shipping Weight
- 5.7 kg
Expansion / Connectivity
- Interfaces
- 1 x management (RS-232) ¦ 1 x management (Ethernet) - RJ-45 ¦ 1 x USB - 4 pin USB Type A
Power Device
- Input Voltage
- AC 230 V
- Input Voltage Margin
- ± 10%
- Frequency Required
- 50/60 Hz
- Input Connectors
- 2 x power IEC 60320 C14
- Power Output Connectors Details
- 12 x power IEC 60320 C13 10 A
- Output Voltage
- AC 230 V
- Max Electric Current
- 10 A
Environmental Parameters
- Min Operating Temperature
- -5 °C
- Max Operating Temperature
- 45 °C
- Humidity Range Operating
- 0 - 95% (non-condensing)
Compatibility Information
- Designed For
- P/N: ACDC2513, AP7950B, AR106, AR106SH4, AR106SH6, AR109SH4, AR109SH6, AR112, AR112SH4, AR112SH6, AR2200, AR2280, AR2487G, AR3003, AR3003SP, AR3006, AR3006SP, AR3100G, AR3100TAA, AR3100W, AR3103, AR3103SP, AR3105SP, AR3105W, AR3106, AR3106SP, AR3107G, AR3107SP, AR3140G, AR3140W, AR3150SP, AR3150W, AR3155SP, AR3155W, AR3157SP, AR3180G, AR3300G, AR3300SP, AR3300W, AR3305SP, AR3305W, AR3307SP, AR3307W, AR3340G, AR3340W, AR3350SP, AR3350W, AR3355SP, AR3355W, AR3357SP, AR3357X674, AR4018IX429, AR4018SP, AR4018SPX429, AR4018SPX431, AR4018SPX432, AR4018X429, AR4024IX431, AR4024SP, AR4024SPX429, AR4024SPX431, AR4024SPX432, AR4038IX432, AR8213, DLT3000RMI2U, NBES0302, NBPD0160A, NBPD0180, NBWL0355A, NBWL0356A, SCL400RMJ1U, SCL500RMI1UNC, SMC1000-BR, SMC1000I-2U, SMC1000I-2UC, SMC1000I-BR, SMC1000IC, SMC15002U-BR, SMC1500-BR, SMC1500I-2U, SMC1500I2U-BR, SMC1500I-2UC, SMC1500I-BR, SMC1500IC, SMC2000I, SMC2000I-2U, SMC3000I, SMC3000RMI2U, SMT1000I-6W, SMT1000I-AR, SMT1000IC, SMT1000R2I-AR, SMT1000RMI2UC, SMT1500I-AR, SMT1500IC, SMT1500R2I-6W, SMT1500R2I-AR, SMT1500RM1U, SMT1500RMI1U, SMT1500RMI2UC, SMT1500RMI2UNC, SMT2200I-AR, SMT2200IC, SMT2200R2I-AR, SMT2200RMI2UC, SMT2200RMI2UNC, SMT3000I2U-BR, SMT3000I-AR, SMT3000IC, SMT3000R2I-6W, SMT3000R2I-AR, SMT3000RMI2UC, SMT3000RMI2UNC, SMT750RMI2UC, SMT750RMI2UNC, SMX1000US, SMX1500RMNCUS, SMX1500RMUS, SMX3000HV-BR, SMX3000LV2U-BR, SMX750INC, SMX750US, SPD10KCBL, SPD20KCBL, SRC2000XLI-CC, SRC3KUXI, SRT1000RMXLI, SRT1000RMXLI-NC, SRT10KRMXLI, SRT10RMXLIX806, SRT1500RMXLI, SRT1500XLI, SRT2200RMXLI, SRT2200RMXLI-NC, SRT2200XLI, SRT2200XLI-KR, SRT3000RMXLI, SRT3000RMXLI-NC, SRT3000XLI, SRT5KRMXLI, SRT5KRMXLI-6W, SRT5KRMXLIM, SRT5KRMXLW-TW, SRT5KXLI, SRT6KRMXLI, SRT6KRMXLI-6W, SRT6KRMXLIM, SRT6KXLI, SRT8KRMXLI, SRT8KXLI, SUA1000ICH-45, SUA1500ICH-45, SUA1500I-IN, SUA2200ICH-45, SUA3000ICH-45, SUA3000I-IN, SUA750ICH-45, SURT1000RMXLI-NC, SURT1000XLI-NC, SURT3000XLI-ET, SYAF16KRMICH
General
- Device Type
- Redundant switch - rack-mountable
- Height (Rack Units)
- 1U
- Colour
- Black
Manufacturer Warranty
- Service & Support
- Limited warranty - 2 years
Dimensions & Weight
- Width
- 43.2 cm
- Depth
- 23.6 cm
- Height
- 4.4 cm
- Weight
- 3.93 kg
Miscellaneous
- Included Accessories
- Mounting kit, rack mounting brackets
- Cables Included
- Serial cable - external
- Rack Mounting Kit
- Included
- Features
- Current meter, LED indicators, short-circuit protection
- Compliant Standards
- RoHS, UL 60950-1, IEC 60950-1, EN 60950-1, EMC 2004/108/EC, LVD 2006/95/EC, EMC 2014/30/EU, LVD 2014/35/EU
