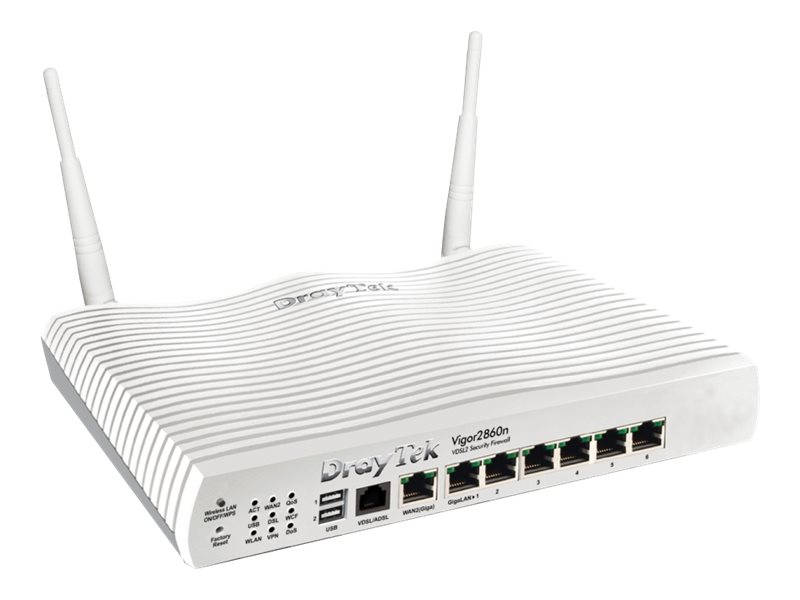

Draytek Vigor 2860N - wireless router - DSL modem - Wi-Fi - desktop
- Product code:
- P219997P | 2860N
- Draytek Vigor 2860N
- Wireless router
- DSL modem 6-port switch
- 1GbE
- WAN ports: 2 2.4 GHz
Draytek Vigor 2860N - wireless router - DSL modem - Wi-Fi - desktop
Sorry, this item is currently out of stock.
Sorry, this item is currently out of stock.
Don't worry, we've got loads of great alternatives! Explore our full range of available Modem routers.
Business Price Promise
Buy from us safe in the knowledge you’ve paid a great price.
If you find Argos, John Lewis, AO.com or eBuyer.com has the same product at a cheaper price, including voucher offers, we’ll match it – even up to 14 days after purchase.
Learn more
Product information
Draytek Vigor 2860N - Wireless router - DSL modem 6-port switch - 1GbE - WAN ports: 2 2.4 GHz
Specifications
Basic Specifications
- Manufacturer's Part Number
- 2860N
- EAN
- 4716779074680
- Routing Protocol
- RIP-2, IGMPv2, static IP routing, IGMPv3
- Capacity
- VPN tunnels: 32 ¦ SSL VPN tunnels: 16 ¦ UPnP sessions: 30
- Enclosure Type
- Desktop
- Model
- Draytek Vigor 2860N
- Digital Signaling Protocol
- ADSL2, ADSL2+, VDSL2
- Data Link Protocol
- Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11n
- Compliant Standards
- IEEE 802.1Q, IEEE 802.1p, IEEE 802.1x, IEEE 802.3ah, IEEE 802.11e, IEEE 802.11n
- Remote Management Protocol
- SNMP, Telnet, HTTP, HTTPS, TFTP, SSH, CLI, TR-069
- Network / Transport Protocol
- PPTP, L2TP, NTP, IPSec, PPPoE, PPPoA, FTP, DHCP
- Device Type
- Wireless router - DSL modem - 6-port switch (integrated)
- Dimensions (WxDxH)
- 24.1 cm x 16.5 cm x 4.4 cm
- Manufacturer Warranty
- 2-year warranty
- Frequency Band
- 2.4 GHz
- Features
- Firewall protection, DMZ port, VPN support, VLAN support, IGMP snooping, Syslog support, SPI, DoS attack prevention, dynamic DNS server, DiffServ support, E-mail alert, MAC address filtering, IPv6 support, VPN passthrough, WDS support, URL filtering, firmware upgradable, DDos attack prevention, WMM support, ACL support, QoS, DPD, IPSec NAT-T, WPS, WAN failover, DHCP server, hidden SSID, DNS proxy, DHCP relay, anti-spoofing protection, on/off switches, DHCP client, MIB, tagged VLAN, IM/P2P filter, DNS caching, CSM
- Product Description
- Draytek Vigor 2860N - wireless router - DSL modem - Wi-Fi - desktop
- WAN Ports Qty
- 2
Expansion / Connectivity
- Interfaces
- LAN: 6 x 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ USB 2.0: 2 x 4 pin USB Type A ¦ WAN: 1 x VDSL2 / ADSL2+ - RJ-11 ¦ WAN / LAN: 1 x 10Base-T/100Base-TX/1000Base-T - RJ-45
Power
- Power Consumption Operational
- 24 Watt
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 45 °C
- Humidity Range Operating
- 10 - 90% (non-condensing)
General
- Device Type
- Wireless router - 6-port switch (integrated)
- Enclosure Type
- Desktop
- Connectivity Technology
- Wireless, wired
- Data Link Protocol
- Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11n
- Frequency Band
- 2.4 GHz
- Capacity
- VPN tunnels: 32 ¦ SSL VPN tunnels: 16 ¦ UPnP sessions: 30
- Network / Transport Protocol
- PPTP, L2TP, NTP, IPSec, PPPoE, PPPoA, FTP, DHCP
- Routing Protocol
- RIP-2, IGMPv2, static IP routing, IGMPv3
- Remote Management Protocol
- SNMP, Telnet, HTTP, HTTPS, TFTP, SSH, CLI, TR-069
- Encryption Algorithm
- DES, Triple DES, MD5, MPPE, AES, 128-bit WEP, 64-bit WEP, IKE, SHA-1, WPA, WPA2
- Authentication Method
- RADIUS, X.509 certificates, Radio Service Set ID (SSID)
- Features
- Firewall protection, DMZ port, VPN support, VLAN support, IGMP snooping, Syslog support, SPI, DoS attack prevention, dynamic DNS server, DiffServ support, E-mail alert, MAC address filtering, IPv6 support, VPN passthrough, WDS support, URL filtering, firmware upgradable, DDos attack prevention, WMM support, ACL support, QoS, DPD, IPSec NAT-T, WPS, WAN failover, DHCP server, hidden SSID, DNS proxy, DHCP relay, anti-spoofing protection, on/off switches, DHCP client, MIB, tagged VLAN, IM/P2P filter, DNS caching, CSM
- Compliant Standards
- IEEE 802.1Q, IEEE 802.1p, IEEE 802.1x, IEEE 802.3ah, IEEE 802.11e, IEEE 802.11n, EN55024, EN55022 Class B, FCC Part 15 B, R&TTE, RoHS, EN 60950-1, WEEE, EN 50371, X.509, EN 50392, LVD, ERP, EN 62311, EN 300 328 V1.7.1, EN 301 489-1, EN 301 489-17
- Built-in Devices
- Led panel, radio access point
- Status Indicators
- Power, WLAN, WAN, link/activity, USB, ADSL, VPN
Communications
- Type
- DSL modem
- Digital Signaling Protocol
- ADSL2, ADSL2+, VDSL2
- Protocols & Specifications
- ITU G.992.1 (G.DMT) Annex A, ITU G.992.1 (G.DMT) Annex B, ITU G.992.3 Annex A, ITU G.993.2, ITU G.992.5 Annex A, ITU G.992.5 Annex B, ITU G.992.3 Annex B
Manufacturer Warranty
- Service & Support
- Limited warranty - parts and labour - 2 years
Aerial
- Aerial
- External detachable
- Antenna Qty
- 2
Dimensions & Weight
- Width
- 24.1 cm
- Depth
- 16.5 cm
- Height
- 4.4 cm
