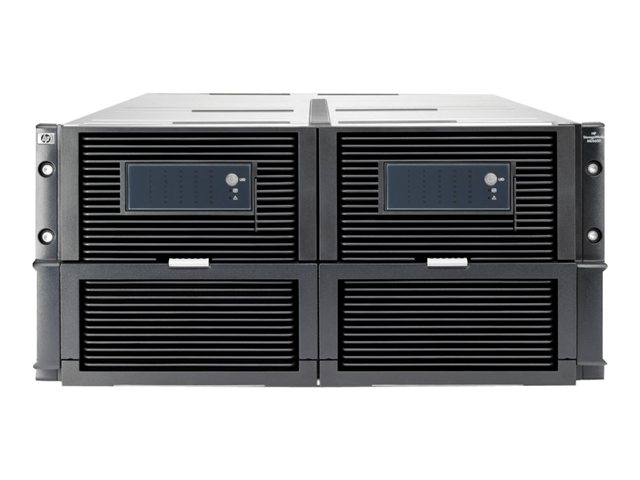

HPE StorageWorks Modular Disk System 600 - hard drive array

Product code:
P102761P | AX668A
  • Product Data Sheet
  • Hard Drive - 70 x 1 TB hot-swap Serial ATA-300
  • Interface - Serial Attached SCSI
  • Storage Controller - RAID ( Serial ATA-300 / SAS )
  • Dimensions (WxDxH) - 44.7 cm x 89.1 cm x 22.1 cm
  • Enclosure Type - Rack-mountable - 5U
  • Manufacturer's Logo

HPE StorageWorks Modular Disk System 600 - hard drive array

Product unavailable

Sorry, this item is currently out of stock.

View all NAS drives
Product unavailable

Sorry, this item is currently out of stock.

Don't worry, we've got loads of great alternatives! Explore our full range of available NAS drives.

View all NAS drives
Business Price Promise

Buy from us safe in the knowledge you’ve paid a great price.

If you find Argos, John Lewis, AO.com or eBuyer.com has the same product at a cheaper price, including voucher offers, we’ll match it – even up to 14 days after purchase.

Learn more
Product information

Compatability With the HP StorageWorks 600 Modular Disk System, HP extends and redefines direct-attached storage for BladeSystem servers, combining the simplicity and cost effectiveness of direct-attached storage without sacrificing flexibility or performance.

Use the MDS600 as part of a straight-forward in-rack 3 Gb/s SAS implementation that delivers high-density, low-cost external zoned direct attach storage for HP BladeSystem servers. Easily configure storage on the fly with easy to use management software. Up to six MDS600 storage devices can be supported off a single BladeSystem enclosure for up to 420 TB of capacity. End-to-end 3 Gb/s SAS connectivity enables a high performance storage solution using an HP Smart Array P700m controller, 3Gb SAS BL switches, and the MDS600.

HPE StorageWorks Modular Disk System 600 - Hard drive array - 70 bays (SATA-300 / SAS) - HDD 1 TB x 70 - SAS (external) - rack-mountable - 5U

View more
Specifications

Basic Specifications

Manufacturer's Part Number
AX668A
EAN
8849624629974
Hard Drive
70 x 1 TB HDD SATA 3Gb/s - hot-swap
Device Type
Hard drive array
Power Redundancy
Yes
Storage Controller
RAID (SATA 3Gb/s / SAS)
Dimensions (WxDxH)
44.7 cm x 89.1 cm x 22.1 cm
Installed Devices / Modules Qty
70 (installed) / 70 (max)
Enclosure Type
Rack-mountable - 5U
Supported Drives
SATA-300 / SAS
Weight
72.6 kg
Product Description
HPE StorageWorks Modular Disk System 600 - hard drive array
Model
HPE StorageWorks Modular Disk System 600
Interface
SAS

Expansion / Connectivity

Expansion Bays
70 (total) / 0 (free) - 3.5" x 1/3H
Interfaces
4 x SAS (input) ¦ 4 x SAS (output) ¦ 4 x SAS - 26 pin 4x Shielded Mini MultiLane SAS (SFF-8088)

Chassis

Installed Devices / Modules Qty
70
Supported Devices / Modules Qty
70
Supported Drives
SATA-300 / SAS

Hard Drive

Type
HDD - hot-swap
Capacity
70 x 1 TB
Interface Type
SATA 3Gb/s
Spindle Speed
7200 rpm

Storage

HDD Array External Interface
SAS

Power

Power Device
4 x internal power supply - hot-plug
Max Supported Qty
4
Power Redundancy
Yes
Power Redundancy Scheme
1+1
Power Provided
1200 Watt

Environmental Parameters

Min Operating Temperature
10 °C
Max Operating Temperature
35 °C
Humidity Range Operating
10 - 90%

General

Device Type
Hard drive array
Enclosure Type
Rack-mountable - 5U

Storage Controller

Type
RAID
Interface Type
SATA 3Gb/s / SAS
Data Transfer Rate
300 MBps
Supported Devices
Disk array (RAID)

Dimensions & Weight

Width
44.7 cm
Depth
89.1 cm
Height
22.1 cm
Weight
72.6 kg

Cabinet (Chassis)

Installed Devices / Modules Qty
70
Supported Devices / Modules Qty
70
Supported Drives
Serial ATA-300 / SAS

Miscellaneous

Compliant Standards
CISPR 22 Class A, CISPR 24, EN55022, EN55024, ICES-003 Class A, RoHS, UL 60950-1, IEC 60950-1, EN 60950-1, CSA C22.2 No. 60950-1-03, FCC CFR47
