StarTech Professional 630 Watt ATX12V 2.3 80 Plus Computer Modular Power Supply - power supply - 630 Watt
- Product code:
- P143964P | ATX2PW630PRO
- Input Voltage - AC 115/230 V
- Output Voltage - +3.3, +5, ±12 V
- Output Connector(s) - 6 x 15 pin Serial ATA power ¦ 1 x power 24 pin ATX with detachable 4 pin section ¦ 1 x 4 PIN mini-power connector ¦ 3 x 4 PIN internal power ¦ 1 x 6 pin PCI Express power ¦ 1 x power 8 pin EPS12V with detachable 4 pin ATX12V section
- Specification Compliance - ATX12V 2.3
StarTech Professional 630 Watt ATX12V 2.3 80 Plus Computer Modular Power Supply - power supply - 630 Watt
Sorry, this item is currently out of stock.
Sorry, this item is currently out of stock.
Don't worry, we've got loads of great alternatives! Explore our full range of available Windows desktops.
Desktop PC Buying Guide Business Price Promise
Buy from us safe in the knowledge you’ve paid a great price.
If you find Argos, John Lewis, AO.com or eBuyer.com has the same product at a cheaper price, including voucher offers, we’ll match it – even up to 14 days after purchase.
Learn more
Product information
Reduce internal cable clutter and upgrade to high efficiency 80 Plus performance. This 630 Watt Modular Power Supply is 80 Plus certified, making it suitable as an energy efficient replacement/upgrade power supply for desktop PCs.
This ATX12V PSU features Active Power Factor Correction and 20/24-pin motherboard support to deliver the flexibility needed to support AMD or Intel CPU-based entry-level servers and high-end workstations, while providing stable power and maximum energy efficiency.

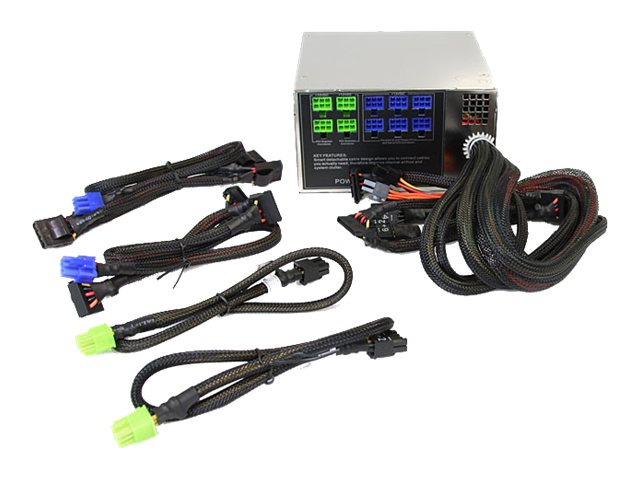

Compliant with ATX12V 2.3 standards, this EPS12V 2.91 power supply offers four 12V power rails, an 8-pin EPS connector, and a modular cable design, enabling you to choose the connectors you require based on your system configuration. The power supply also features a 120mm fan for quieter, more efficient cooling in demanding systems.
Designed to provide dependable, long-lasting power, this higher level 630 Watt ATX12V 2.3 EPS12V power supply meets or exceeds 80 Plus standards, providing 80% or greater efficiency at 20%, 50% and 100% loads.
StarTech Professional 630 Watt ATX12V 2.3 80 Plus Computer Modular Power Supply - Power supply (internal) - ATX12V 2.3 - 80 PLUS - AC 115/230 V - 630 Watt - active PFC
Specifications
Basic Specifications
- Manufacturer's Part Number
- ATX2PW630PRO
- EAN
- 0065030840224
- Cooling System
- 120 mm fan
- 80 PLUS Certification
- 80 PLUS
- Input Voltage
- AC 115/230 V
- Output connectors
- 6 x 15 pin Serial ATA power ¦ 1 x power 24 pin ATX with detachable 4 pin section ¦ 1 x 4 PIN mini-power connector ¦ 3 x 4 PIN internal power ¦ 1 x 6 pin PCI Express power ¦ 1 x power 8 pin EPS12V with detachable 4 pin ATX12V section ¦ 2 x 8 pin PCI Express power with detachable 2 pin section
- Device Type
- Power supply - active Power Factor Correction (PFC) - internal
- Manufacturer Warranty
- 3-year warranty
- Input Connectors
- 1 x power
- Power Capacity
- 630 Watt
- Output Connectors
- 4 PIN internal power, 4 PIN mini-power connector, 15 pin Serial ATA power, 6 pin PCI Express power, power 24 pin ATX with detachable 4 pin section, power 8 pin EPS12V with detachable 4 pin ATX12V section, 8 pin PCI Express power with detachable 2 pin section
- Output Connector(s)
- 6 x 15 pin Serial ATA power ¦ 1 x power 24 pin ATX with detachable 4 pin section ¦ 1 x 4 PIN mini-power connector ¦ 3 x 4 PIN internal power ¦ 1 x 6 pin PCI Express power ¦ 1 x power 8 pin EPS12V with detachable 4 pin ATX12V section ¦ 2 x 8 pin PCI Express power with detachable 2 pin section
- Model
- StarTech Professional 630 Watt ATX12V 2.3 80 Plus Computer Modular Power Supply
- Specification Compliance
- ATX12V 2.3
- Dimensions (WxDxH)
- 15 cm x 14 cm x 8.6 cm
- Weight
- 2.1 kg
- Product Description
- StarTech Professional 630 Watt ATX12V 2.3 80 Plus Computer Modular Power Supply - power supply - 630 Watt
- Output Voltage
- +3.3, +5, ±12 V
- Modular Cable Management
- Yes
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 40 °C
- Humidity Range Operating
- 10 - 90%
General
- Device Type
- Power supply - active Power Factor Correction (PFC) - internal
- Specification Compliance
- ATX12V 2.3
- PSU Form Factor
- ATX
Manufacturer Warranty
- Service & Support
- Limited warranty - 3 years
Dimensions & Weight
- Width
- 15 cm
- Depth
- 14 cm
- Height
- 8.6 cm
- Weight
- 2.1 kg
Power Device
- Input Voltage
- AC 115/230 V
- Frequency Required
- 47 - 63 Hz
- Input Connectors
- 1 x power
- Power Output Connectors Details
- 6 x 15 pin Serial ATA power ¦ 1 x power 24 pin ATX with detachable 4 pin section ¦ 1 x 4 PIN mini-power connector ¦ 3 x 4 PIN internal power ¦ 1 x 6 pin PCI Express power ¦ 1 x power 8 pin EPS12V with detachable 4 pin ATX12V section ¦ 2 x 8 pin PCI Express power with detachable 2 pin section
- Output Voltage
- +3.3, +5, ±12 V
- Power Capacity
- 630 Watt
- Modular Cable Management
- Yes
- 80 PLUS Certification
- 80 PLUS
Miscellaneous
- Cables Included

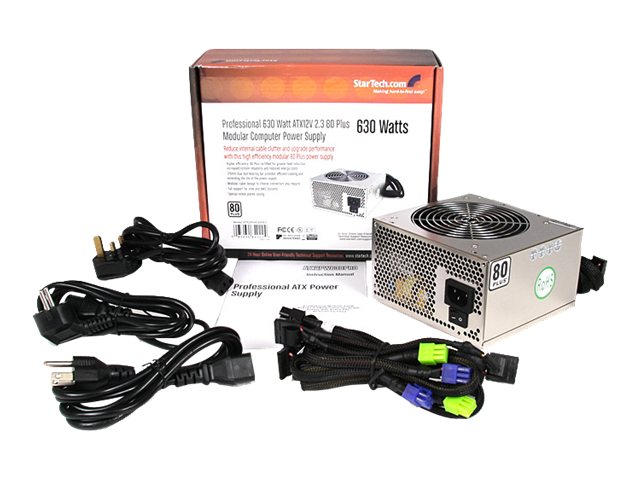

- 3 x power cable - external ¦ 8 pin PCI Express power with detachable 2 pin section modular cable - external ¦ 6 pin PCI Express power modular cable - external ¦ 3x Serial ATA modular cable - external ¦ 3x 4 pin internal power + 4 pin mini-power connector modular cable - external
- MTBF
- 100,000 hours
- Cooling System
- 120 mm fan
- Features
- Semi-modular
- Compliant Standards
- UL, FCC
