MSI B840 Gaming Plus WiFi AMD Motherboard
- Product code:
- N682838W | 126159
Business Finance available
- Form factor: ATX
- Socket: AMD AM5
- Chipset: AMD B840
- 3 year guarantee
MSI B840 Gaming Plus WiFi AMD Motherboard
Sorry, this item is currently out of stock.
Sorry, this item is currently out of stock.
Don't worry, we've got loads of great alternatives! Explore our full range of available Motherboards.
Business Price Promise
Buy from us safe in the knowledge you’ve paid a great price.
If you find Argos, John Lewis, AO.com or eBuyer.com has the same product at a cheaper price, including voucher offers, we’ll match it – even up to 14 days after purchase.
Learn more
Product information
Building a compact desktop PC? Start off strong with this ATX board from MSI. It works with AMD 9000, 8000 & 7000 Series processors, giving you loads of choices. so it's designed for the future of AI computing. Add up to 256 GB of DDR5 RAM and blaze through your workflows. And with PCIe 4.0 and dual M.2 slots, you can pop in high-speed SSDs that won't make you wait around.
Good to know
- With WiFi 7 and 2.5 Gig Ethernet you'll have super-fast and rock-solid internet connection
- The advanced thermal design provides more stable power, so you can safely overclock the CPU and push it to the limit
- Say goodbye to slow loading times - the PCIe 4.0 M.2 SSD slots let you install a super-fast drive
- With the extended heatsink and M.2 Thermal Frozr Guards it's ready to keep cool even a high-performance setup
- To make sure your hardware stays cool under load, there are extended PWM heatsinks
MSI B840 Gaming Plus WiFi AMD Motherboard, Form factor: ATX, Socket: AMD AM5, Chipset: AMD B840, 3 year guarantee
Specifications
Basic Specifications
- Manufacturer's Part Number
- 126159
- EAN
- 4711377286589
Overview
- Form factor
- ATX
- Socket
- AMD AM5
- Chipset
- AMD B840
- Processor models supported
- AMD Ryzen 9000, 8000 & 7000 Series
- Operating systems supported
- Windows 10 or later
- Memory slots
- 4 x DDR5 (Max RAM: 256 GB)
- Memory standard
- DDR5
- Cooling features
- - Audio Boost
- Wi-Fi 7
- Latest DDR5 memory
- Lightning Gen4 solution
- Extended heatsink design
- EZ M.2 shield frozr II
- EZ PCIe Clip II
- Pre-installed I/O shielding
- 2.5G network solution
- Dual M.2 connectors
General
- Colour
- Black
- Software included
- Installation software

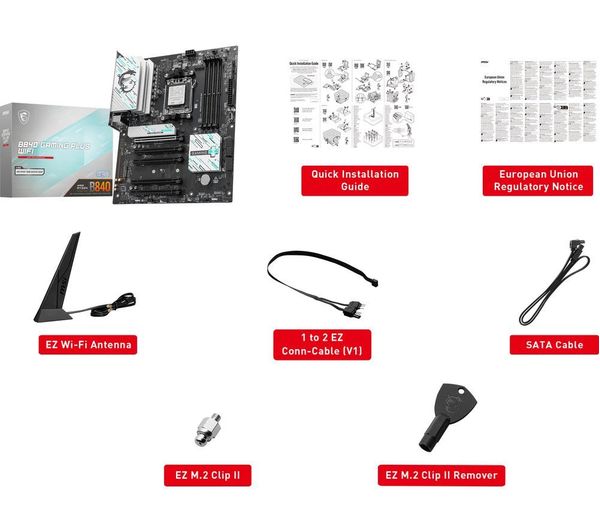

- Box contents
- - MSI B840 Gaming Plus WiFi AMD Motherboard
- Quick installation guide
- EZ Wi-Fi antenna
- SATA cable
- EZ M.2 clips
- EZ M.2 Clips remover
- 1 to 2 EZ Conn-cable (V1) - Dimensions
- 70 x 270 x 345 mm (H x W x D)
- Weight
- 1.63 kg
- Manufacturer’s guarantee
- 3 years
External connectivity
- Video output
- HDMI x 1
- USB
- - USB 2.0 x 4
- USB Type-C x 1 - Audio
- 3.5 mm jack x 3
- Other external connections
- - Bluetooth v5.4
- Wi-Fi 7
Internal connectivity
- Expansion slots
- - PCIe 4.0 x16 slot x 1
- PCIe 3.0 x16 slot x 1
- PCIe 3.0 x1 slots x 3 - Storage slots
- - SATA x 4 (6 GB/s)
- M.2 x 2 - Cooling
- - CPU fan 4-pin x 1
- Case fan 3-pin x 4 - Power
- - 24-pin ATX x 1
- 8-pin ATX 12 V x 1 - Case
- - Power LED
- HDD LED - Buttons
- - Clear CMOS
- Flash BIOS - Sensors
- - Thermal sensor x 1
- Fan speed sensor x 1 - BIOS
- AMI BIOS
- USB
- - USB 10Gbps (1 Type-A + 1 Type-C) x 2
- USB 5Gbps (4 Type-A + 1 Type-C) x 5
- USB 2.0 x 8 - Other internal connections
- - RGB strip header
- EZ Debug LED
