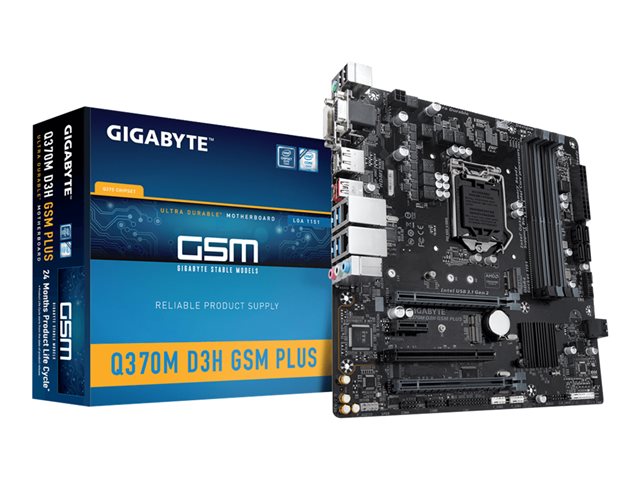

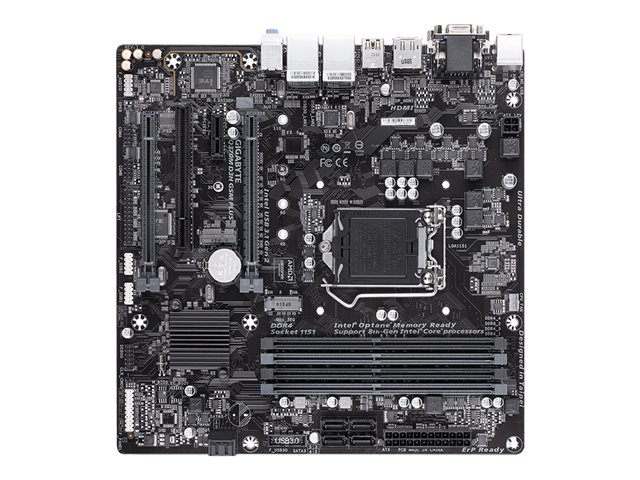

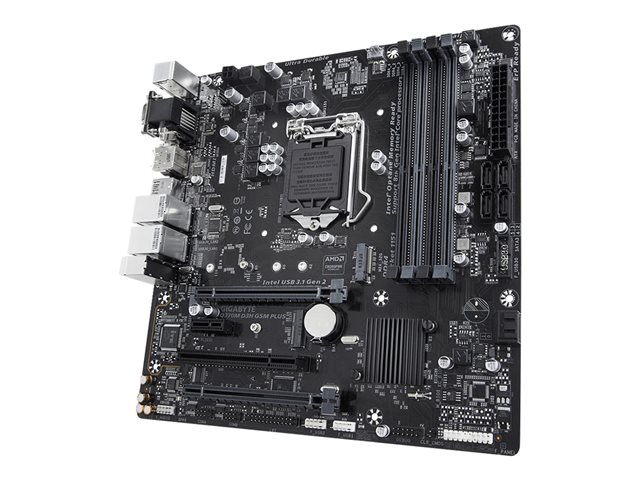

Gigabyte Q370M D3H GSM PLUS - 1.0 - motherboard - micro ATX - LGA1151 Socket - Q370
- Product code:
- P258795P | Q370MD3HGSMPLUS
- Gigabyte Q370M D3H GSM PLUS
- 1.0
- motherboard
- micro ATX
- LGA1151 Socket
- Q370 Chipset
Gigabyte Q370M D3H GSM PLUS - 1.0 - motherboard - micro ATX - LGA1151 Socket - Q370
Sorry, this item is currently out of stock.
Sorry, this item is currently out of stock.
Don't worry, we've got loads of great alternatives! Explore our full range of available Motherboards.
Business Price Promise
Buy from us safe in the knowledge you’ve paid a great price.
If you find Argos, John Lewis, AO.com or eBuyer.com has the same product at a cheaper price, including voucher offers, we’ll match it – even up to 14 days after purchase.
Learn more
Product information
Gigabyte Q370M D3H GSM PLUS - 1.0 - motherboard - micro ATX - LGA1151 Socket - Q370 Chipset - USB 3.1 Gen 1, USB-C Gen2, USB 3.1 Gen 2 - 2 x Gigabit LAN - onboard graphics (CPU required) - HD Audio (8-channel)
Specifications
Basic Specifications
- Manufacturer's Part Number
- Q370MD3HGSMPLUS
- EAN
- 4719331803650
- Product Type
- Motherboard - micro ATX
- Audio
- HD Audio (8-channel)
- Compatibility
- Intel vPro
- Processor Socket
- 1 x LGA1151 Socket
- Chipset Type
- Intel Q370
- Max Allocated RAM Size
- 1 GB
- USB / FireWire Ports
- 1 x USB-C Gen 2 + 1 x USB 3.1 Gen 2 + 4 x USB 3.1 Gen 1 + 2 x USB 2.0 + (2 x USB 3.1 Gen 1 + 4 x USB 2.0 via headers)
- Manufacturer Warranty
- 3-year warranty
- Compatible Processors
- Pentium, Celeron, Core i5, Core i3, Core i7 (supports 8th Generation Intel Core i3 / i5 / i7 / Pentium / Celeron)
- LAN
- 2 x Gigabit Ethernet
- Product Description
- Gigabyte Q370M D3H GSM PLUS - 1.0 - motherboard - micro ATX - LGA1151 Socket - Q370
- Model
- Gigabyte Q370M D3H GSM PLUS
- RAM Supported
- 4 DIMM slots - DDR4, non-ECC, ECC (operate in non-ECC mode), unbuffered
- Max RAM Size
- 64 GB
- Storage Ports
- 6 x SATA-600, 1 x M.2
LAN
- Network Interfaces
- 2 x Gigabit Ethernet
Expansion / Connectivity
- Expansion Slots
- 1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 3.0 x16 ¦ 1 x PCIe 3.0 x16 (x4 mode (x2 mode if PCI Express 3.0 x1 slot is occupied)) ¦ 1 x PCIe 3.0 x1 ¦ 1 x PCI ¦ 1 x M.2 socket (for Intel CNVi wireless module)
- Storage Interfaces
- SATA-600 -connectors: 6 x 7pin Serial ATA ¦ SATA-600 / PCIe -connectors: 1 x M.2
- Interfaces

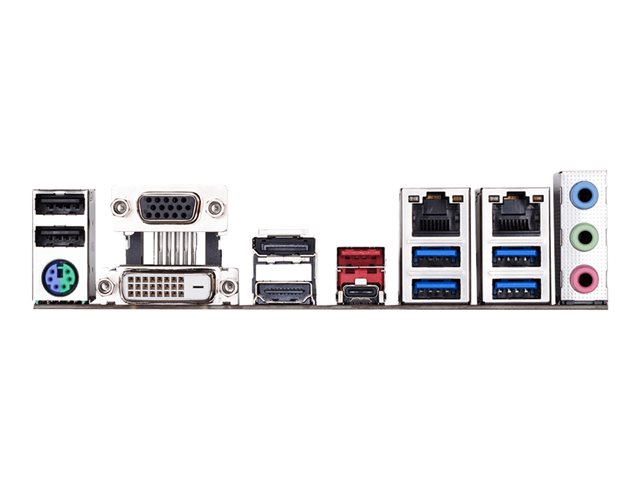

- 1 x HDMI ¦ 2 x LAN (Gigabit Ethernet) ¦ 1 x DVI-D ¦ 4 x USB 3.1 Gen 1 ¦ 2 x USB 2.0 ¦ 1 x audio line-out - mini-jack ¦ 1 x audio line-in - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x PS/2 keyboard / mouse ¦ 1 x DisplayPort ¦ 1 x USB 3.1 Gen 2 ¦ 1 x VGA ¦ 1 x USB-C Gen2
- Internal Interfaces
- 4 x USB 2.0 - header ¦ 2 x USB 3.1 Gen 1 - header ¦ 1 x audio - header ¦ 1 x serial - header ¦ 1 x parallel - header
- Power Connectors
- 4-pin ATX12V connector, 24-pin main power connector
Audio
- Type
- HD Audio (8-channel)
- Audio Codec
- Realtek ALC887
- Compliant Standards
- High Definition Audio
General
- Product Type
- Motherboard - micro ATX
- Chipset Type
- Intel Q370
- Compatibility
- Intel vPro
- Processor Socket
- LGA1151 Socket
- Max Processors Qty
- 1
- Compatible Processors
- Pentium, Celeron, Core i5, Core i3, Core i7 (supports 8th Generation Intel Core i3 / i5 / i7 / Pentium / Celeron)
Supported RAM
- Max Size
- 64 GB
- Technology
- DDR4
- Bus Clock
- 2400 MHz, 2133 MHz, 2666 MHz
- Supported RAM Integrity Check
- Non-ECC, ECC (operate in non-ECC mode)
- Registered or Buffered
- Unbuffered
- Features
- Dual channel memory architecture, Intel Extreme Memory Profiles (XMP), supported ECC modules operate in non-ECC mode
Graphics
- Max Allocated RAM Size
- 1 GB
Manufacturer Warranty
- Service & Support
- Limited warranty - advance hardware replacement - 3 years
Features
- BIOS Type
- AMI
- BIOS Features
- WfM 2.0 support, UEFI BIOS, SMBIOS 2.7 support, DMI 2.7 support, ACPI 5.0 support, Dual BIOS
- Hardware Monitoring
- CPU core temperature, chassis temperature, CPU fan tachometer, chassis fan tachometer, system voltage, CPU overheating protection
- Hardware Features
- Q-Flash, AutoGreen, On/Off Charge, Ultra Durable, AMD CrossFireX technology support, AMD Quad CrossFireX technology support, 4K Ultra HD ready, Game Boost, GIGABYTE Double Locking Bracket, Anti-Sulfur Design, Intel Optane Memory Ready, GIGABYTE Smart Fan 5, CEC 2019 Ready
Miscellaneous
- Software Included
- Norton Internet Security, @BIOS, EasyTune, Cloud Station, Xpress Install, GIGABYTE USB Blocker, GIGABYTE App Center, Smart TimeLock, GIGABYTE Fast Boot, GIGABYTE V-Tuner, GIGABYTE Smart Keyboard, GIGABYTE Smart Backup, GIGABYTE Smart Fan 5, GIGABYTE 3D OSD, GIGABYTE Smart HUD
- Compliant Standards
- Plug and Play, HDCP 2.2
- Width
- 24.4 cm
- Depth
- 24.4 cm
