ASUS TUF GAMING Z690-PLUS WIFI D4 LGA1700 Motherboard
- Product code:
- N595560W | 90MB18V0-M0EAY0
- Form factor: ATX
- Socket: Intel® 1700
- Chipset: Intel® Z690
- Memory: DIMM x 4 / Max RAM: 128 GB DDR4

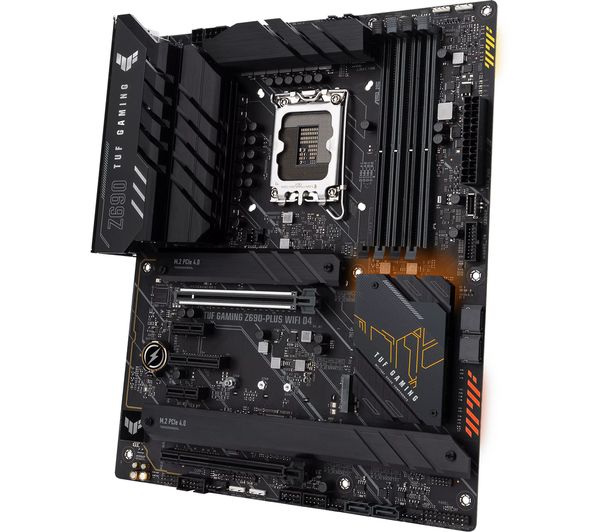

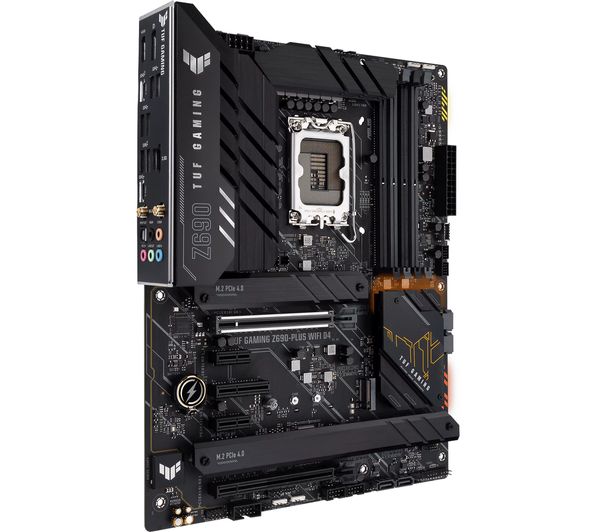

ASUS TUF GAMING Z690-PLUS WIFI D4 LGA1700 Motherboard
Sorry, this item is currently out of stock.
Sorry, this item is currently out of stock.
Don't worry, we've got loads of great alternatives! Explore our full range of available Motherboards.
Business Price Promise
Buy from us safe in the knowledge you’ve paid a great price.
If you find Argos, John Lewis, AO.com or eBuyer.com has the same product at a cheaper price, including voucher offers, we’ll match it – even up to 14 days after purchase.
Learn more
Product information
Ready for gaming
If you're thinking of building a powerful new gaming PC, the ASUS TUF GAMING Z690-PLUS WIFI D4 LGA1700 Motherboard is the perfect place to start. Compatible with 12th generation Intel® Core™ processors, all you have to do is pick your CPU and get to work on your brand-new build. To make sure your PC can keep up, there's space for up to 128 GB of DDR4 RAM and four M.2 slots to store your SSDs.
Durable and reliable
Engineered with military-grade components, the durable TUF GAMING Z690-PLUS is made to last.
Don't waste time fussing with the little things when it comes to completing your PC build. Designed for easy DIY, you'll be able to easily snap components into place.
Super-fast WiFi 6
There's no need to buy a WiFi card, the TUF GAMING Z690-PLUS includes onboard Intel® WiFi 6. Supporting ultra-fast wireless network speeds, you won't be left behind in competitive online games.
ASUS TUF GAMING Z690-PLUS WIFI D4 LGA1700 Motherboard, Form factor: ATX, Socket: Intel® 1700, Chipset: Intel® Z690, Memory: DIMM x 4 / Max RAM: 128 GB DDR4
Specifications
Basic Specifications
- Manufacturer's Part Number
- 90MB18V0-M0EAY0
- EAN
- 4711081438779
Overview
- Form factor
- ATX
- Socket
- Intel® LGA1700
- Chipset
- Intel® Z690
- Processor models supported
- 12th generation Intel® Core™ / Pentium® Gold / Celeron® processors
- Operating systems supported
- - Windows 10
- Windows 11 - Memory slots
- 4 x DIMM (Max RAM: 128 GB)
- Memory standard
- DDR4
- Multi-GPU support
- No
- Cooling features
- - Fan cooling
- Liquid cooling
- VRM heatsinks
- M.2 heatsinks
- PCH heatsink
General
- Colour
- Black
- Software included
- - ASUS Exclusive software
- Armoury Crate
- AI Suite 3 - Box contents
- - ASUS TUF GAMING Z690-PLUS WIFI D4 LGA1700 Motherboard
- SATA cables x 2
- WiFi antenna x 1
- M.2 screw package
- M.2 rubber package
- Support DVD
- User manual
- TUF certificate
- TUF sticker - Dimensions
- 71 x 335 x 270 mm (H x W x D)
- Weight
- 2.065 kg
- Manufacturer’s guarantee
- 3 years

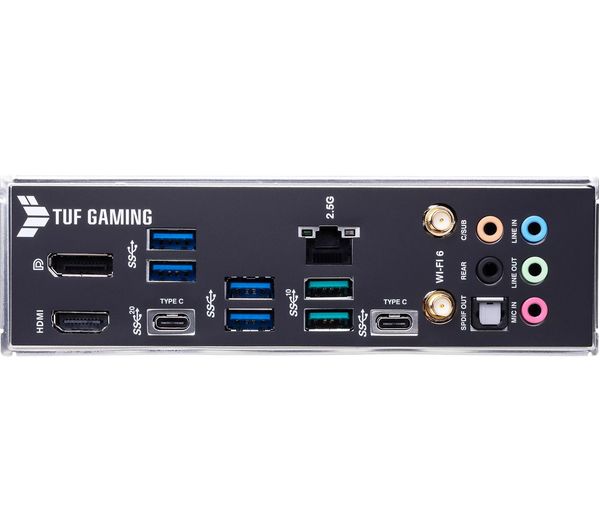

External connectivity
- Video output
- - HDMI x 1
- DisplayPort x 1 - USB
- - USB Type-C x 2
- USB 3.2 x 6 - Audio
- - 3.5 mm jacks x 5
- S/PDIF out x 1 - LAN
- - Intel® 2.5G Ethernet port x 1
- Intel® WiFi module x 1
Internal connectivity
- Expansion slots
- - PCIe 5.0 (x16) x 1
- PCIe 3.0 (x16) x 1
- PCIe 3.0 (x4) x 1
- PCIe 3.0 (x1) x 2 - Storage slots
- - SATA x 4 (6 GB/s)
- M.2 x 4 (64 GB/s)
- Intel® Optane™ ready - Cooling
- - CPU fan 4-pin x 1
- CPU OPT fan 4-pin x 1
- CPU AIO pump 4-pin x 1
- Chassis fan 4-pin x 4 - Power
- - 24-pin ATX x 1
- 8-pin 12V ATX x 1
- 4-pin 12V ATX x 1 - BIOS
- UEFI AMI BIOS
- USB
- - USB Type-C x 1
- USB 3.2 x 2
- USB 2.0 x 4 - Other internal connections
- - Addressable Gen 2 headers x 3
- AURA RGB header x 1
- Clear CMOS header x 1
- COM Port header x 1
- Front panel audio header x 1
- System panel header with chassis intrude function x 1
- Thunderbolt™ header x 1
