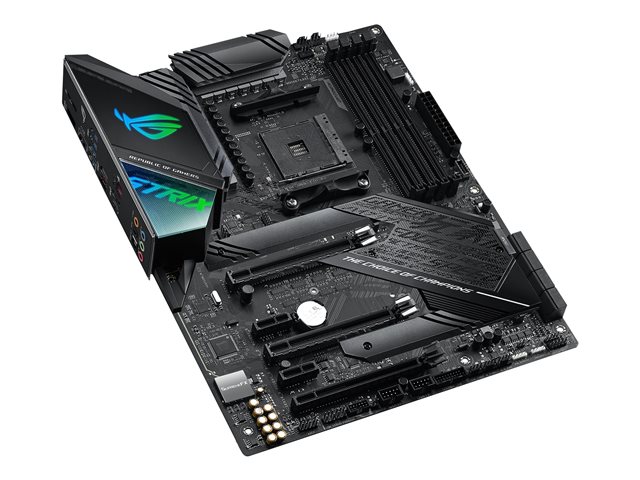

ASUS ROG Strix X570-F Gaming - motherboard - ATX - Socket AM4 - AMD X570
- Product code:
- P267518P | 90MB1160-M0EAY0
- ASUS ROG Strix X570-F Gaming
- Motherboard
- ATX
- Socket AM4
- AMD X570 Chipset
- USB-C Gen2, USB 3.2 Gen 1, USB 3.2 Gen 2
ASUS ROG Strix X570-F Gaming - motherboard - ATX - Socket AM4 - AMD X570
Sorry, this item is currently out of stock.
Sorry, this item is currently out of stock.
Don't worry, we've got loads of great alternatives! Explore our full range of available Motherboards.
Business Price Promise
Buy from us safe in the knowledge you’ve paid a great price.
If you find Argos, John Lewis, AO.com or eBuyer.com has the same product at a cheaper price, including voucher offers, we’ll match it – even up to 14 days after purchase.
Learn more
Product information
ASUS ROG Strix X570-F Gaming - Motherboard - ATX - Socket AM4 - AMD X570 Chipset - USB-C Gen2, USB 3.2 Gen 1, USB 3.2 Gen 2 - Gigabit LAN - onboard graphics (CPU required) - HD Audio (8-channel)
Specifications
Basic Specifications
- Manufacturer's Part Number
- 90MB1160-M0EAY0
- EAN
- 4718017378956
- Product Type
- Motherboard - ATX
- Audio
- HD Audio (8-channel)
- Processor Socket
- 1 x Socket AM4
- Chipset Type
- AMD X570
- USB / FireWire Ports
- 1 x USB-C Gen 2 + 3 x USB 3.2 Gen 2 + 4 x USB 3.2 Gen 1 + (1 x USB 3.2 Gen 2 + 2 x USB 3.2 Gen 1 + 4 x USB 2.0 via headers)
- Manufacturer Warranty
- 3-year warranty
- Compatible Processors
- Ryzen (supports 2nd and 3rd Generation Ryzen / 1st and 2nd Generation Ryzen with Radeon Vega Graphics)
- LAN
- Gigabit Ethernet
- Product Description
- ASUS ROG Strix X570-F Gaming - motherboard - ATX - Socket AM4 - AMD X570
- Model
- ASUS ROG Strix X570-F Gaming
- RAM Supported
- 4 DIMM slots - DDR4 unbuffered
- Max RAM Size
- 128 GB
- Storage Ports
- 8 x SATA-600 (RAID), 2 x M.2
LAN
- Network Controller
- Intel I211-AT
- Network Interfaces
- Gigabit Ethernet
Expansion / Connectivity
- Expansion Slots
- 1 x CPU ¦ 4 x DIMM 288-pin ¦ 2 x PCIe 4.0 x16 (PCIe 4.0 x16/x0, x8/x8 modes (with 3rd Generation Ryzen CPU); PCIe 3.0 x16/x0, x8/x8 modes (with 2nd Generation Ryzen CPU); PCIe 3.0 x8/x0 mode (with Ryzen CPU with Radeon Vega Graphics / 2nd Generation Ryzen CPU with Radeon Graphics)) ¦ 1 x PCIe 4.0 x16 (x4 mode) ¦ 2 x PCIe 4.0 x1
- Storage Interfaces
- SATA-600 -connectors: 8 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 ¦ SATA-600 / PCIe 4.0 -connectors: 2 x M.2
- Interfaces
- 1 x LAN (Gigabit Ethernet) ¦ 1 x audio line-in - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x TOSLINK ¦ 4 x USB 3.2 Gen 1 ¦ 3 x USB 3.2 Gen 2 ¦ 1 x audio line-out (center/subwoofer) - mini-jack ¦ 1 x audio line-out (rear) - mini-jack ¦ 1 x USB-C Gen2 ¦ 1 x DisplayPort ¦ 1 x HDMI
- Internal Interfaces
- 4 x USB 2.0 - header ¦ 1 x USB 3.2 Gen 2 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 1 x audio - header
- Power Connectors
- 4-pin ATX12V connector, 24-pin main power connector, 8-pin ATX12V connector
Audio
- Type
- HD Audio (8-channel)
- Audio Codec
- SupremeFX (S1220A)
- Compliant Standards
- High Definition Audio, DTS Sound Unbound
General
- Product Type
- Motherboard - ATX
- Chipset Type
- AMD X570
- Processor Socket
- Socket AM4
- Max Processors Qty
- 1
- Compatible Processors
- Ryzen (supports 2nd and 3rd Generation Ryzen / 1st and 2nd Generation Ryzen with Radeon Vega Graphics)
Supported RAM
- Max Size
- 128 GB
- Technology
- DDR4
- Bus Clock
- 2400 MHz, 2133 MHz, 2666 MHz, 2800 MHz (O.C.), 3000 MHz (O.C.), 3200 MHz (O.C.), 3400 MHz (O.C.), 3600 MHz (O.C.), 3866 MHz (O.C.), 4000 MHz (O.C.), 4133 MHz (O.C.), 4400 MHz (O.C.), 4266 MHz (O.C.)
- Registered or Buffered
- Unbuffered
- Features
- Dual channel memory architecture
Manufacturer Warranty
- Service & Support
- Limited warranty - 3 years
Features
- BIOS Type
- AMI
- BIOS Features
- WfM 2.0 support, BIOS FlashBack, UEFI BIOS, ASUS EZ Flash 3, SMBIOS 3.2 support, ACPI 6.2 support
- Sleep / Wake Up
- Wake on LAN (WOL)
- Hardware Features
- Jack retasking, ASUS Q-Design, GameFirst, ESD Guards, Q-DIMM, ASUS EZ DIY, Q-LED, Q-Slot, CrashFree BIOS 3, audio jack detect technology, NVIDIA 2-way SLI Technology Support, ASUS TPU (TurboV Processing Unit), ASUS DIGI+ VRM, SupremeFX Shielding technology, AMD CrossFireX technology support, AMD 3-way CrossFireX technology support, ASUS Enhanced DRAM Overcurrent Protection, Preboot eXecution Environment (PXE), ASUS Stainless Steel Back I/O, Dual Intelligent Processors 5, LANGuard, ASUS Gamer's Guardian, AURA RGB Lighting Control, ASUS SafeSlot, Sonic Radar III, Sonic Studio III, pre-mounted I/O shield, Sonic Studio Link, ASUS Node, ProCool II Power Connector
Miscellaneous
- Included Accessories
- Cable ties, 1 x M.2 screw, thermistor cable, RGB (RGBW) LED strip extension cable, strix door hanger, STRIX stickers, ROG thank you card, RGB Addressable LED extension cable
- Cables Included
- 4 x Serial ATA cable
- Software Included
- Drivers & Utilities, ASUS AI Charger, ROG CPU-Z, ASUS AI Suite III, Antivirus (OEM version), Overwolf, WinRAR, ASUS ROG RAMCache III, ROG GameFirst V, Sonic Studio Virtual Mixer
- Compliant Standards
- Plug and Play
- Width
- 30.5 cm
- Depth
- 24.4 cm
