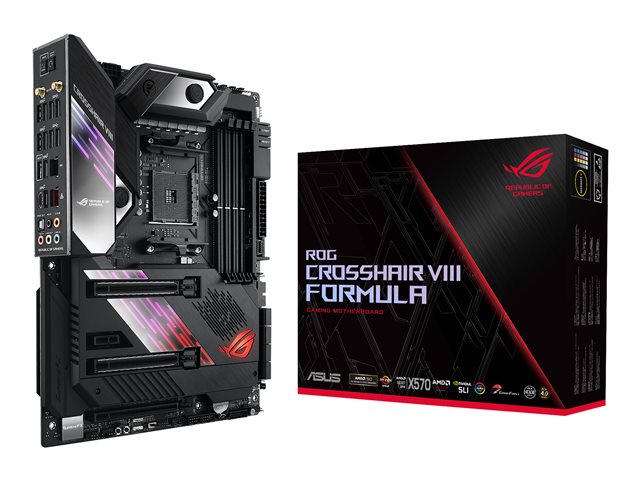

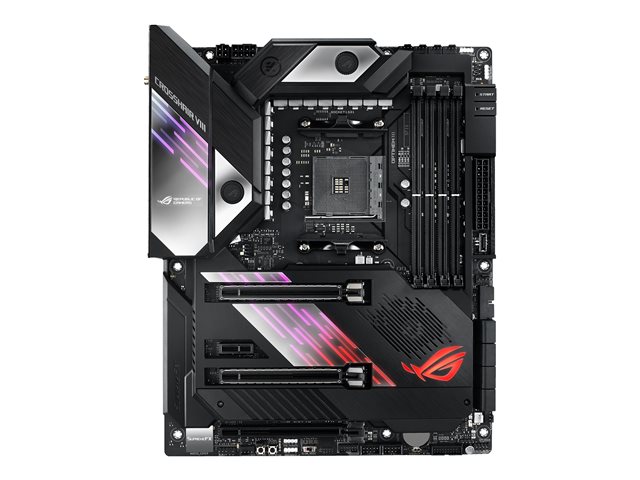

ASUS ROG Crosshair VIII Formula - motherboard - ATX - Socket AM4 - AMD X570

Product code:
P266331P | 90MB10Z0-M0EAY0
  • ASUS ROG Crosshair VIII Formula
  • Motherboard
  • ATX
  • Socket AM4
  • AMD X570 Chipset
  • USB-C Gen2, USB 3.2 Gen 1, USB 3.2 Gen 2
  • Manufacturer's Logo

ASUS ROG Crosshair VIII Formula - motherboard - ATX - Socket AM4 - AMD X570

Product unavailable

Sorry, this item is currently out of stock.

View all Motherboards
Product unavailable

Sorry, this item is currently out of stock.

Don't worry, we've got loads of great alternatives! Explore our full range of available Motherboards.

View all Motherboards
Business Price Promise

Buy from us safe in the knowledge you’ve paid a great price.

If you find Argos, John Lewis, AO.com or eBuyer.com has the same product at a cheaper price, including voucher offers, we’ll match it – even up to 14 days after purchase.

Learn more
Product information

ASUS ROG Crosshair VIII Formula - Motherboard - ATX - Socket AM4 - AMD X570 Chipset - USB-C Gen2, USB 3.2 Gen 1, USB 3.2 Gen 2 - Bluetooth, Gigabit LAN, Wi-Fi, 5 Gigabit Ethernet - HD Audio (8-channel)

View more
Specifications

Basic Specifications

Manufacturer's Part Number
90MB10Z0-M0EAY0
EAN
4718017386647
Product Type
Motherboard - ATX
Audio
HD Audio (8-channel)
Processor Socket
1 x Socket AM4
Chipset Type
AMD X570
USB / FireWire Ports
1 x USB-C Gen 2 + 7 x USB 3.2 Gen 2 + 4 x USB 3.2 Gen 1 + (1 x USB 3.2 Gen 2 + 4 x USB 3.2 Gen 1 + 4 x USB 2.0 via headers)
Manufacturer Warranty
3-year warranty
Compatible Processors
Ryzen (supports 2nd and 3rd Generation Ryzen / 1st and 2nd Generation Ryzen with Radeon Vega Graphics)
LAN
Bluetooth, Gigabit Ethernet, 802.11a/b/g/n/ac, 5 Gigabit Ethernet
Product Description
ASUS ROG Crosshair VIII Formula - motherboard - ATX - Socket AM4 - AMD X570
Model
ASUS ROG Crosshair VIII Formula
RAM Supported
4 DIMM slots - DDR4, ECC, unbuffered
Max RAM Size
128 GB
Storage Ports
8 x SATA-600 (RAID), 2 x M.2

LAN

Network Controller
Intel I211-AT / Aquantia AQC111C
Network Interfaces
Bluetooth, Gigabit Ethernet, 802.11a/b/g/n/ac, 5 Gigabit Ethernet

Expansion / Connectivity

Expansion Slots
1 x CPU ¦ 4 x DIMM 288-pin ¦ 2 x PCIe 4.0 x16 (PCIe 4.0 x16/x0, x8/x8 modes (with 3rd Generation Ryzen CPU); PCIe 3.0 x16/x0, x8/x8 modes (with 2nd Generation Ryzen CPU); PCIe 3.0 x8/x0 mode (with Ryzen CPU with Radeon Vega Graphics / 2nd Generation Ryzen CPU with Radeon Graphics)) ¦ 1 x PCIe 4.0 x16 (x4 mode) ¦ 1 x PCIe 4.0 x1
Storage Interfaces
SATA-600 -connectors: 8 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 ¦ SATA-600 / PCIe 4.0 -connectors: 2 x M.2

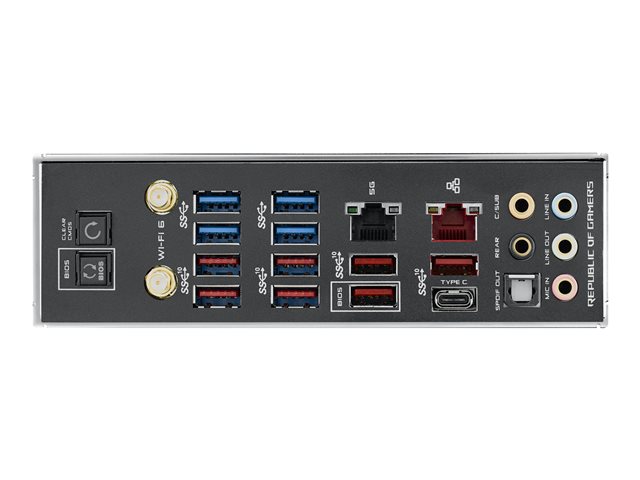

Interfaces
1 x LAN (Gigabit Ethernet) ¦ 1 x audio line-in - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x TOSLINK ¦ 4 x USB 3.2 Gen 1 ¦ 7 x USB 3.2 Gen 2 ¦ 1 x audio line-out (center/subwoofer) - mini-jack ¦ 1 x audio line-out (rear) - mini-jack ¦ 1 x LAN (5Gigabit Ethernet) ¦ 1 x USB-C Gen2
Internal Interfaces
4 x USB 2.0 - header ¦ 1 x USB 3.2 Gen 2 - header ¦ 4 x USB 3.2 Gen 1 - header ¦ 1 x audio - header ¦ 1 x speaker - header
Power Connectors
4-pin ATX12V connector, 24-pin main power connector, 8-pin ATX12V connector

Audio

Type
HD Audio (8-channel)
Audio Codec
SupremeFX (S1220A)
Compliant Standards
High Definition Audio

General

Product Type
Motherboard - ATX
Chipset Type
AMD X570
Processor Socket
Socket AM4
Max Processors Qty
1
Compatible Processors
Ryzen (supports 2nd and 3rd Generation Ryzen / 1st and 2nd Generation Ryzen with Radeon Vega Graphics)

Supported RAM

Max Size
128 GB
Technology
DDR4
Bus Clock
2400 MHz, 2133 MHz, 2800 MHz, 3000 MHz, 2666 MHz, 2933 MHz, 3400 MHz (O.C.), 3466 MHz (O.C.), 3733 MHz (O.C.), 3600 MHz (O.C.), 3866 MHz (O.C.), 4000 MHz (O.C.), 4133 MHz (O.C.), 4400 MHz (O.C.), 4266 MHz (O.C.), 4600 MHz (O.C.), 4800 MHz (O.C.), 3200 MHz
Supported RAM Integrity Check
ECC
Registered or Buffered
Unbuffered
Features
Dual channel memory architecture

Manufacturer Warranty

Service & Support
Limited warranty - 3 years

Features

BIOS Type
AMI
BIOS Features
WfM 2.0 support, USB BIOS Flashback, UEFI BIOS, SMBIOS 3.2 support, ACPI 6.2 support
Sleep / Wake Up
Wake on LAN (WOL)
Hardware Features
Jack retasking, ASUS Q-Design, ESD Guards, Q-DIMM, Q-LED, ASUS Extreme Engine Digi+, CrashFree BIOS 3, ASUS Q-Connector, ASUS EPU (Energy Processing Unit), NVIDIA 3-way SLI Technology Support, ASUS TPU (TurboV Processing Unit), ASUS DIGI+ VRM, ASUS ROG Extreme OC, AMD CrossFireX technology support, AMD 3-way CrossFireX technology support, Onboard Button, ASUS Enhanced DRAM Overcurrent Protection, Preboot eXecution Environment (PXE), Clear CMOS Button, Dual Intelligent Processors 5, LANGuard, ROG SSD Secure Erase, ASUS Gamer's Guardian, AURA RGB Lighting Control, ASUS Fan Xpert 4, ASUS SafeSlot, Sonic Radar III, Sonic Studio III, ASUS LiveDash, pre-mounted I/O shield, Sonic Studio Link, Armoury Crate, ESS ES9023P, ROG RGB Armor, Crosschill EK III, ASUS Node, MicroFine Alloy Chokes, PowIRstage IR3555 MOSFETs, GameFirst V, Tweakers' Paradise

Miscellaneous

Included Accessories
External antenna, 1 x M.2 screw, ROG coasters, RGB (RGBW) LED strip extension cable, ROG big sticker, ROG thank you card, RGB Addressable LED extension cable, ROG logo plate sticker, Q-Connector
Cables Included
2 x Serial ATA cable
Software Included
Drivers & Utilities, ASUS AI Charger, ROG CPU-Z, ROG Mem TweakIt Utility, ASUS AI Suite III, RAMdisk, ASUS Turbo App, Overwolf, ASUS ROG RAMCache III, ROG GameFirst V
Compliant Standards
Plug and Play
Width
30.5 cm
Depth
24.4 cm
