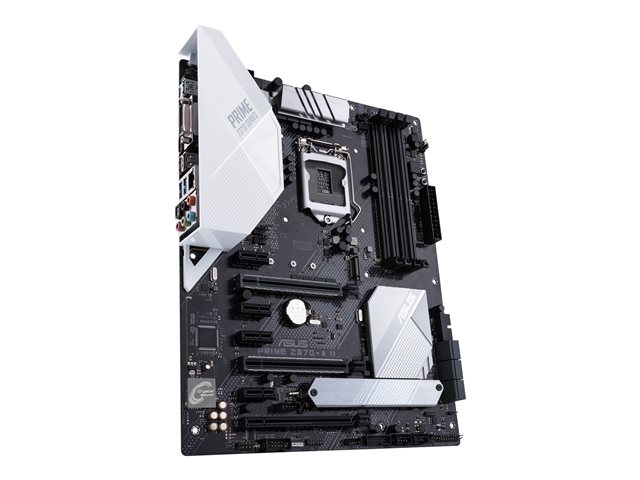

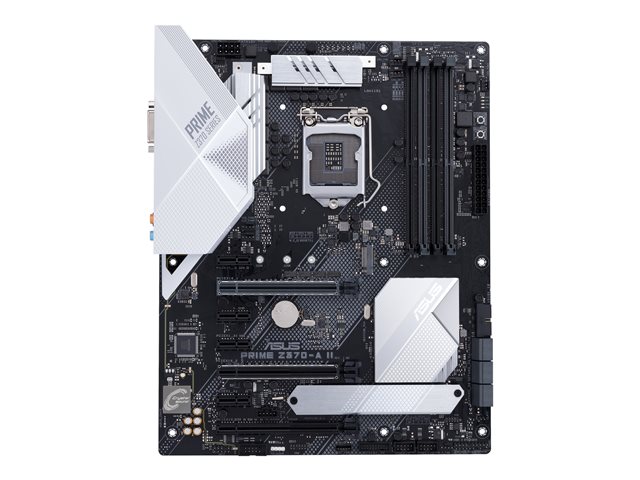

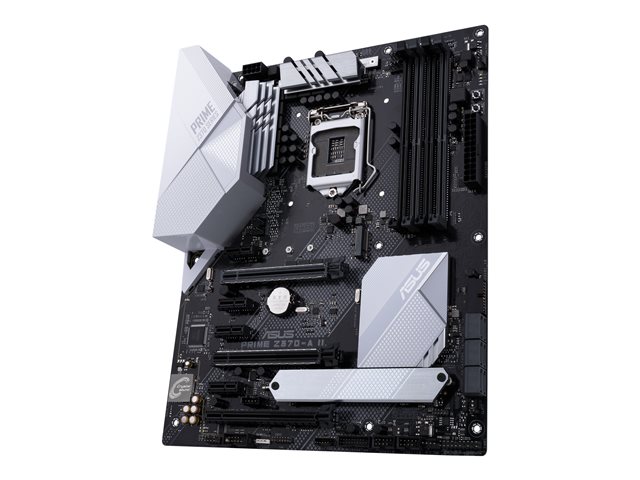

ASUS PRIME Z370-A II - motherboard - ATX - LGA1151 Socket - Z370
- Product code:
- P261432P | 90MB0ZT0-M0EAY0
- ASUS PRIME Z370-A II
- Motherboard
- ATX
- LGA1151 Socket
- Z370 Chipset
- USB 3.1 Gen 1, USB-C Gen2, USB 3.1 Gen 2
ASUS PRIME Z370-A II - motherboard - ATX - LGA1151 Socket - Z370
Sorry, this item is currently out of stock.
Sorry, this item is currently out of stock.
Don't worry, we've got loads of great alternatives! Explore our full range of available Motherboards.
Business Price Promise
Buy from us safe in the knowledge you’ve paid a great price.
If you find Argos, John Lewis, AO.com or eBuyer.com has the same product at a cheaper price, including voucher offers, we’ll match it – even up to 14 days after purchase.
Learn more
Product information
ASUS PRIME Z370-A II - Motherboard - ATX - LGA1151 Socket - Z370 Chipset - USB 3.1 Gen 1, USB-C Gen2, USB 3.1 Gen 2 - Gigabit LAN - onboard graphics (CPU required) - HD Audio (8-channel)
Specifications
Basic Specifications
- Manufacturer's Part Number
- 90MB0ZT0-M0EAY0
- EAN
- 4718017137539
- Product Type
- Motherboard - ATX
- Audio
- HD Audio (8-channel)
- Processor Socket
- 1 x LGA1151 Socket
- Chipset Type
- Intel Z370
- Max Allocated RAM Size
- 1 GB
- USB / FireWire Ports
- 1 x USB-C Gen 2 + 1 x USB 3.1 Gen 2 + 2 x USB 3.1 Gen 1 + 2 x USB 2.0 + (4 x USB 3.1 Gen 1 + 4 x USB 2.0 via headers)
- Compatible Processors
- Core i5, Core i3, Core i7 (supports 8th Generation Intel Core i3 / i5 / i7)
- LAN
- Gigabit Ethernet
- Product Description
- ASUS PRIME Z370-A II - motherboard - ATX - LGA1151 Socket - Z370
- Model
- ASUS PRIME Z370-A II
- RAM Supported
- 4 DIMM slots - DDR4, non-ECC, unbuffered
- Max RAM Size
- 64 GB
- Storage Ports
- 6 x SATA-600 (RAID), 2 x M.2
LAN
- Network Controller
- Intel I219V
- Network Interfaces
- Gigabit Ethernet
Expansion / Connectivity
- Expansion Slots
- 1 x CPU ¦ 4 x DIMM 288-pin ¦ 2 x PCIe 3.0 x16 (x16, x8/x8, x8/x4+x4, x8+x4+x4/x0 modes) ¦ 1 x PCIe 3.0 x16 (x4 mode) ¦ 4 x PCIe 3.0 x1
- Storage Interfaces
- SATA-600 -connectors: 6 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ SATA-600 / PCIe 3.0 -connectors: 1 x M.2 ¦ PCIe -connectors: 1 x M.2
- RAID Features
- Intel Rapid Storage Technology
- Interfaces
- 1 x HDMI ¦ 1 x LAN (Gigabit Ethernet) ¦ 2 x USB 3.1 Gen 1 ¦ 2 x USB 2.0 ¦ 1 x TOSLINK ¦ 1 x DVI-D ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x audio line-out (center/subwoofer) - mini-jack ¦ 1 x audio line-out (rear) - mini-jack ¦ 1 x audio line-in - mini-jack ¦ 1 x DisplayPort ¦ 1 x USB 3.1 Gen 2 ¦ 1 x USB-C Gen2
- Internal Interfaces
- 4 x USB 2.0 - header ¦ 4 x USB 3.1 Gen 1 - header ¦ 1 x serial - header ¦ 1 x Thunderbolt - header ¦ 1 x audio - header
- Power Connectors
- 24-pin main power connector, 8-pin ATX12V connector
Audio
- Type
- HD Audio (8-channel)
- Audio Codec
- Realtek ALCS1220A
- Compliant Standards
- High Definition Audio, DTS Headphone:X
General
- Product Type
- Motherboard - ATX
- Chipset Type
- Intel Z370
- Processor Socket
- LGA1151 Socket
- Max Processors Qty
- 1
- Compatible Processors
- Core i5, Core i3, Core i7 (supports 8th Generation Intel Core i3 / i5 / i7)
Supported RAM
- Max Size
- 64 GB
- Technology
- DDR4
- Bus Clock
- 2133 MHz, 2800 MHz (O.C.), 2666 MHz (O.C.), 2400 MHz (O.C.), 3000 MHz (O.C.), 3200 MHz (O.C.), 3300 MHz (O.C.), 3400 MHz (O.C.), 3333 MHz (O.C.), 3466 MHz (O.C.), 3733 MHz (O.C.), 3600 MHz (O.C.), 3866 MHz (O.C.), 4000 MHz (O.C.)
- Supported RAM Integrity Check
- Non-ECC
- Registered or Buffered
- Unbuffered
- Features
- Dual channel memory architecture, Intel Extreme Memory Profiles (XMP)
Graphics
- Max Allocated RAM Size
- 1 GB
Features
- BIOS Type
- AMI
- BIOS Features
- WfM 2.0 support, Multilingual BIOS, ASUS Quiet Thermal Solution, ASUS O.C. Profile, UEFI BIOS, ASUS EZ Flash 3, ACPI 6.1 support, SMBIOS 3.1 support, DMI 3.1 support
- Sleep / Wake Up
- Wake on LAN (WOL), wake on PME
- Hardware Features
- C.P.R. (CPU Parameter Recall), jack retasking, MemOK!, ASUS Q-Design, Q-DIMM, GPU Boost, ASUS EZ DIY, Q-LED, Q-Slot, CrashFree BIOS 3, ASUS Q-Connector, audio jack detect technology, ASUS EPU (Energy Processing Unit), ASUS Q-Shield, ASUS Precision Tweaker 2, Intel Extreme Memory Profile (XMP) support, NVIDIA 2-way SLI Technology Support, Intel Turbo Boost Technology 2.0, ASUS TPU (TurboV Processing Unit), ASUS DIGI+ VRM, Intel Smart Response Technology, Fanless Design Heatsink, AMD 3-way CrossFireX technology support, ASUS DIGI+ Power Control, Preboot eXecution Environment (PXE), ASUS Stainless Steel Back I/O, ASUS O.C. Tuner, Turbo LAN, Dual Intelligent Processors 5, LANGuard, Memory O.C. Design, ASUS Overvoltage Protection, ASUS Crystal Sound 3, ASUS PRO Clock Technology, AURA RGB Lighting Control, ASUS Fan Xpert 4, Intel Optane Memory Ready, ASUS 5X Protection III, ASUS SafeSlot Core
Miscellaneous
- Included Accessories
- I/O back plate, 1 x M.2 screw, ASUS fan holder
- Cables Included
- 3 x Serial ATA cable ¦ 1 x SLI bridge
- Software Included
- Drivers & Utilities, ASUS AI Charger, ASUS AI Suite III, ASUS Turbo App, PC Cleaner
- Compliant Standards
- Plug and Play
- Width
- 30.5 cm
- Depth
- 24.4 cm
