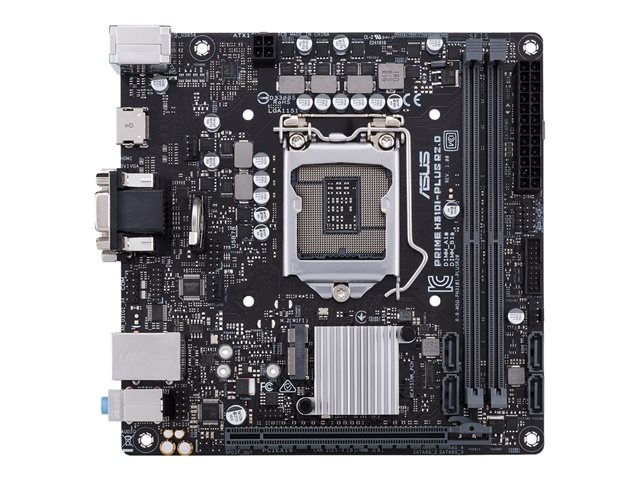

ASUS PRIME H310I-PLUS R2.0/CSM - motherboard - mini ITX - LGA1151 Socket - H310

Product code:
P260950P | 90MB1090-M0EAYC
  • ASUS PRIME H310I-PLUS R2.0/CSM
  • Motherboard
  • mini ITX
  • LGA1151 Socket
  • H310 Chipset
  • USB 3.1 Gen 1
  • Manufacturer's Logo

ASUS PRIME H310I-PLUS R2.0/CSM - motherboard - mini ITX - LGA1151 Socket - H310

Product unavailable

Sorry, this item is currently out of stock.

View all Motherboards
Product unavailable

Sorry, this item is currently out of stock.

Don't worry, we've got loads of great alternatives! Explore our full range of available Motherboards.

View all Motherboards
Business Price Promise

Buy from us safe in the knowledge you’ve paid a great price.

If you find Argos, John Lewis, AO.com or eBuyer.com has the same product at a cheaper price, including voucher offers, we’ll match it – even up to 14 days after purchase.

Learn more
Product information

ASUS PRIME H310I-PLUS R2.0/CSM - Motherboard - mini ITX - LGA1151 Socket - H310 Chipset - USB 3.1 Gen 1 - Gigabit LAN - onboard graphics (CPU required) - HD Audio (8-channel)

View more
Specifications

Basic Specifications

Manufacturer's Part Number
90MB1090-M0EAYC
EAN
4718017155762
Product Type
Motherboard - mini ITX
Audio
HD Audio (8-channel)
Processor Socket
1 x LGA1151 Socket
Chipset Type
Intel H310
Max Allocated RAM Size
1 GB
USB / FireWire Ports
2 x USB 3.1 Gen 1 + 2 x USB 2.0 + (2 x USB 3.1 Gen 1 + 2 x USB 2.0 via headers)
Compatible Processors
Pentium, Celeron, Core i5, Core i3, Core i7 (supports 8th Generation Intel Core i3 / i5 / i7 / Pentium / Celeron)
LAN
Gigabit Ethernet
Product Description
ASUS PRIME H310I-PLUS R2.0/CSM - motherboard - mini ITX - LGA1151 Socket - H310
Model
ASUS PRIME H310I-PLUS R2.0/CSM
RAM Supported
2 DIMM slots - DDR4, non-ECC, unbuffered
Max RAM Size
32 GB
Storage Ports
4 x SATA-600, 1 x M.2

LAN

Network Controller
Realtek RTL8111H
Network Interfaces
Gigabit Ethernet

Expansion / Connectivity

Expansion Slots
1 x CPU ¦ 2 x DIMM 288-pin ¦ 1 x PCIe 3.0 x16
Storage Interfaces
SATA-600 -connectors: 4 x 7pin Serial ATA ¦ SATA-600 / PCIe -connectors: 1 x M.2
Interfaces

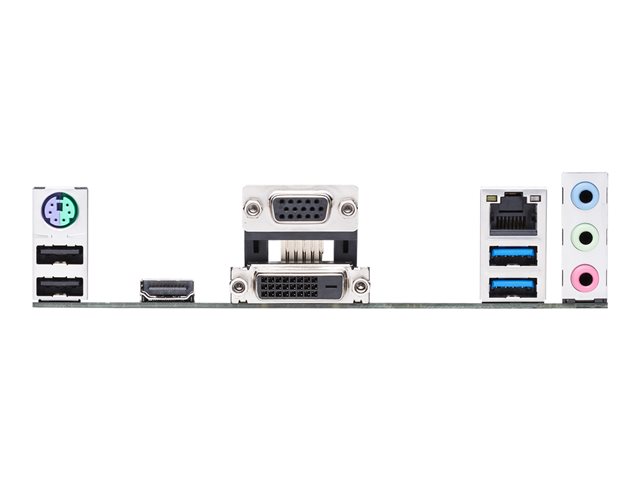

1 x VGA ¦ 1 x LAN (Gigabit Ethernet) ¦ 1 x DVI-D ¦ 2 x USB 3.1 Gen 1 ¦ 2 x USB 2.0 ¦ 1 x PS/2 keyboard / mouse ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x audio line-in - mini-jack ¦ 1 x HDMI
Internal Interfaces
2 x USB 2.0 - header ¦ 2 x USB 3.1 Gen 1 - header ¦ 1 x SPDIF out - header ¦ 1 x serial - header ¦ 1 x speaker - header ¦ 1 x audio - header
Power Connectors
4-pin ATX12V connector, 24-pin main power connector

Audio

Type
HD Audio (8-channel)
Audio Codec
Realtek ALC887
Compliant Standards
High Definition Audio

General

Product Type
Motherboard - mini ITX
Chipset Type
Intel H310
Processor Socket
LGA1151 Socket
Max Processors Qty
1
Compatible Processors
Pentium, Celeron, Core i5, Core i3, Core i7 (supports 8th Generation Intel Core i3 / i5 / i7 / Pentium / Celeron)

Supported RAM

Max Size
32 GB
Technology
DDR4
Bus Clock
2400 MHz, 2133 MHz, 2666 MHz
Supported RAM Integrity Check
Non-ECC
Registered or Buffered
Unbuffered
Features
Dual channel memory architecture, Intel Extreme Memory Profiles (XMP)

Graphics

Max Allocated RAM Size
1 GB

Features

BIOS Type
AMI
BIOS Features
Multilingual BIOS, ASUS Quiet Thermal Solution, UEFI BIOS, ASUS EZ Flash 3, ACPI 6.1 support, SMBIOS 3.1 support
Sleep / Wake Up
Wake on LAN (WOL), wake on PME
Hardware Features
Jack retasking, ASUS Q-Design, Q-DIMM, ASUS EZ DIY, audio jack detect technology, ASUS EPU (Energy Processing Unit), Intel Turbo Boost Technology 2.0, ASUS DIGI+ VRM, Intel Clear Video HD Technology, Fanless Design Heatsink, Intel InTru 3D Technology, Intel Insider, Intel Quick Sync Video, Preboot eXecution Environment (PXE), ASUS Stainless Steel Back I/O, ASUS Fan Xpert 2+, ASUS Overvoltage Protection, ASUS 5X Protection III, ASUS SafeSlot Core

Miscellaneous

Included Accessories
I/O back plate, 2 x M.2 screws
Cables Included
2 x Serial ATA cable
Software Included
Drivers & Utilities, ASUS AI Charger, ASUS AI Suite III, ASUS EZ Flash 3, File Transfer
Width
17 cm
Depth
17 cm
