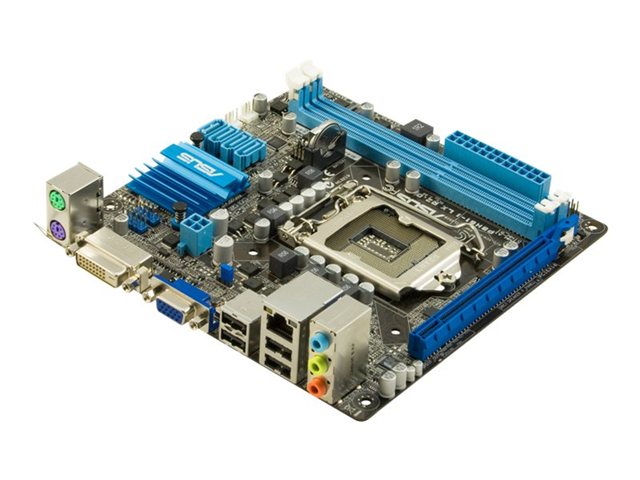

ASUS P8H61-I LX - 2.0 - motherboard - mini ITX - LGA1155 Socket - H61
- Product code:
- P161099P | 90-MIBJH0-G0EAY0KZ
- Product Type - Motherboard - mini ITX
- Compatible Processors - Celeron, Core i5, Core i3, Core i7, Pentium G600 series, Pentium G800 series
- Max RAM Size - 16 GB
- Processor Socket - 1 x LGA1155 Socket
- Storage Ports - 4 x SATA-300
- Chipset Type - Intel H61 Express
ASUS P8H61-I LX - 2.0 - motherboard - mini ITX - LGA1155 Socket - H61
Sorry, this item is currently out of stock.
Sorry, this item is currently out of stock.
Don't worry, we've got loads of great alternatives! Explore our full range of available Motherboards.
Business Price Promise
Buy from us safe in the knowledge you’ve paid a great price.
If you find Argos, John Lewis, AO.com or eBuyer.com has the same product at a cheaper price, including voucher offers, we’ll match it – even up to 14 days after purchase.
Learn more
Product information
ASUS P8H61-I LX - 2.0 - motherboard - mini ITX - LGA1155 Socket - H61 Chipset - Gigabit LAN - onboard graphics (CPU required) - HD Audio (8-channel)
Specifications
Basic Specifications
- Manufacturer's Part Number
- 90-MIBJH0-G0EAY0KZ
- EAN
- 4719543187050
- Product Type
- Motherboard - mini ITX
- Audio
- HD Audio (8-channel)
- Processor Socket
- 1 x LGA1155 Socket
- Chipset Type
- Intel H61 Express
- Max Allocated RAM Size
- 1748 MB
- USB / FireWire Ports
- 4 x USB 2.0 + (2 x USB 2.0 via headers)
- Manufacturer Warranty
- 3-year warranty
- Microsoft Certification
- Compatible with Windows 7
- Compatible Processors
- Celeron, Core i5, Core i3, Core i7, Pentium G600 series, Pentium G800 series
- LAN
- Gigabit Ethernet
- Product Description
- ASUS P8H61-I LX - 2.0 - motherboard - mini ITX - LGA1155 Socket - H61
- Model
- ASUS P8H61-I LX
- RAM Supported
- 2 DIMM slots - DDR3, non-ECC, unbuffered
- Max RAM Size
- 16 GB
- Storage Ports
- 4 x SATA-300
LAN
- Network Controller
- Realtek RTL8111F
- Network Interfaces
- Gigabit Ethernet
Expansion / Connectivity
- Expansion Slots
- 1 x CPU ¦ 2 x DIMM 240-pin ¦ 1 x PCIe 3.0 x16
- Storage Interfaces
- SATA-300 -connectors: 4 x 7pin Serial ATA - 4 devices
- Interfaces
- 1 x DVI-D (dual link) ¦ 1 x VGA ¦ 1 x PS/2 keyboard ¦ 1 x PS/2 mouse ¦ 1 x LAN (Gigabit Ethernet) ¦ 4 x USB 2.0 ¦ 1 x audio line-out - mini-jack ¦ 1 x audio line-out (rear)/line-in - mini-jack ¦ 1 x audio line-out (centre/subwoofer)/microphone - mini-jack
- Internal Interfaces
- 1 x SPDIF out - header ¦ 2 x USB 2.0 - header ¦ 1 x audio - header
- Power Connectors
- 4-pin ATX12V connector, 24-pin main power connector
Audio
- Type
- HD Audio (8-channel)
- Audio Codec
- VIA VT1708S
- Compliant Standards
- High Definition Audio
General
- Product Type
- Motherboard - mini ITX
- Chipset Type
- Intel H61 Express
- Processor Socket
- LGA1155 Socket
- Max Processors Qty
- 1
- Compatible Processors
- Celeron, Core i5, Core i3, Core i7, Pentium G600 series, Pentium G800 series
Supported RAM
- Max Size
- 16 GB
- Technology
- DDR3
- Bus Clock
- 2200 MHz, 2000 MHz, 1600 MHz, 1333 MHz, 1066 MHz, 1866 MHz, 2133 MHz
- Supported RAM Integrity Check
- Non-ECC
- Registered or Buffered
- Unbuffered
- Features
- Dual channel memory architecture, Intel Extreme Memory Profiles (XMP)
Graphics
- Max Allocated RAM Size
- 1748 MB
Manufacturer Warranty
- Service & Support
- Limited warranty - 3 years
Features
- BIOS Type
- AMI
- BIOS Features
- DMI 2.0 support, WfM 2.0 support, ASUS MyLogo2, ASUS Quiet Thermal Solution, ASUS EZ Flash 2, ACPI 2.0a support, SMBIOS 2.6 support, ASUS EFI BIOS, UEFI BIOS
- Sleep / Wake Up
- Wake on LAN (WOL)
- Hardware Features
- ASUS Q-Fan 2, jack retasking, ASUS Anti-Surge Protection, GPU Boost, ASUS EZ DIY, CrashFree BIOS 3, audio jack detect technology, ASUS Fan Xpert, Intel Turbo Boost Technology 2.0, Conductive Polymer Capacitors, ASUS Network iControl, Intel Rapid Start Technology, Intel Smart Connect Technology
Miscellaneous
- Included Accessories
- I/O back plate
- Cables Included
- 2 x Serial ATA cable
- Software Included
- Drivers & Utilities, ASUS MyLogo2, ASUS EZ Flash 2, ASUS AI Suite II, ASUS Update
- Compatible with Windows 7
- "Compatible with Windows 7" software and devices carry Microsoft’s assurance that these products have passed tests for compatibility and reliability with 32-bit and 64-bit Windows 7.
- Compliant Standards
- Plug and Play, ACPI 2.0a, ErP Ready
- Width
- 17 cm
- Depth
- 17 cm
