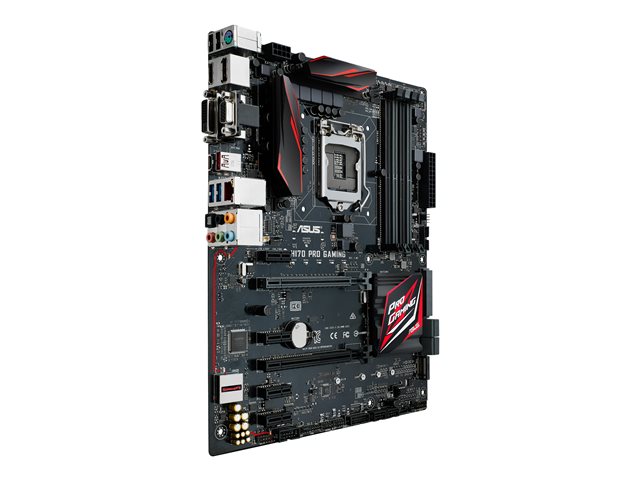

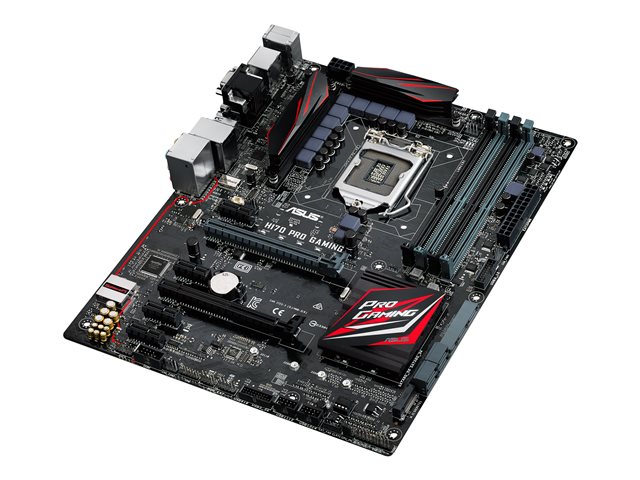

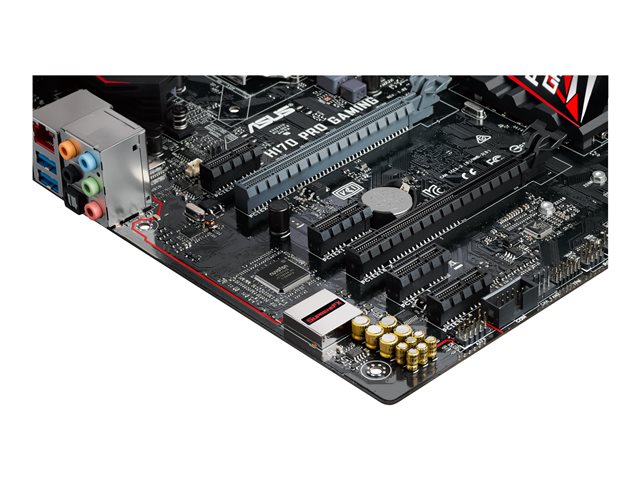

ASUS H170 PRO GAMING - motherboard - ATX - LGA1151 Socket - Intel H170
- Product code:
- P231832P | 90MB0MS0-M0EAY0
- ASUS H170 PRO GAMING
- Motherboard
- ATX
- LGA1151 Socket
- Intel H170 Chipset
- USB 3.0, USB 3.1, USB-C
ASUS H170 PRO GAMING - motherboard - ATX - LGA1151 Socket - Intel H170
Sorry, this item is currently out of stock.
Sorry, this item is currently out of stock.
Don't worry, we've got loads of great alternatives! Explore our full range of available Motherboards.
Business Price Promise
Buy from us safe in the knowledge you’ve paid a great price.
If you find Argos, John Lewis, AO.com or eBuyer.com has the same product at a cheaper price, including voucher offers, we’ll match it – even up to 14 days after purchase.
Learn more
Product information
ASUS H170 PRO GAMING - Motherboard - ATX - LGA1151 Socket - Intel H170 Chipset - USB 3.0, USB 3.1, USB-C - Gigabit LAN - onboard graphics (CPU required) - HD Audio (8-channel)
Specifications
Basic Specifications
- Manufacturer's Part Number
- 90MB0MS0-M0EAY0
- EAN
- 4712900125054
- Product Type
- Motherboard - ATX
- Audio
- HD Audio (8-channel)
- Processor Socket
- 1 x LGA1151 Socket
- Chipset Type
- Intel H170
- Max Allocated RAM Size
- 512 MB
- USB / FireWire Ports
- 1 x USB-C + 1 x USB 3.1 + 2 x USB 3.0 + 2 x USB 2.0 + (4 x USB 3.0 + 6 x USB 2.0 via headers)
- Compatible Processors
- Pentium, Celeron, Core i5, Core i3, Core i7
- LAN
- Gigabit Ethernet
- Product Description
- ASUS H170 PRO GAMING - motherboard - ATX - LGA1151 Socket - Intel H170
- Model
- ASUS H170 PRO GAMING
- RAM Supported
- 4 DIMM slots - DDR4, non-ECC, unbuffered
- Max RAM Size
- 64 GB
- Storage Ports
- 4 x SATA-600 (RAID), 1 x SATA Express port, 1 x M.2
LAN
- Network Controller
- Intel I219V
- Network Interfaces
- Gigabit Ethernet
Expansion / Connectivity
- Expansion Slots
- 1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 3.0 x16 ¦ 4 x PCIe 3.0 x1 ¦ 1 x PCIe 3.0 x16 (x4 mode)
- Storage Interfaces
- SATA-600 / PCIe 3.0 -connectors: 4 x 7pin SATA, 1 x M.2, 1 x SATA Express port - RAID 0 / RAID 1 / RAID 10 / RAID 5
- RAID Features
- Intel Smart Response Technology
- Interfaces
- 1 x PS/2 keyboard / mouse ¦ 1 x LAN (Gigabit Ethernet) ¦ 2 x USB 3.0 ¦ 1 x TOSLINK ¦ 2 x USB 2.0 ¦ 1 x VGA ¦ 1 x DVI-D ¦ 1 x HDMI ¦ 1 x audio line-out - mini-jack ¦ 1 x audio line-in - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x audio line-out (center/subwoofer) - mini-jack ¦ 1 x audio line-out (rear) - mini-jack ¦ 1 x USB-C ¦ 1 x DisplayPort ¦ 1 x USB 3.1
- Internal Interfaces
- 6 x USB 2.0 - header ¦ 4 x USB 3.0 - header ¦ 1 x audio - header ¦ 1 x serial - header
- Power Connectors
- 24-pin main power connector, 8-pin ATX12V connector
Audio
- Type
- HD Audio (8-channel)
- Audio Codec
- SupremeFX
- Compliant Standards
- High Definition Audio
General
- Product Type
- Motherboard - ATX
- Chipset Type
- Intel H170
- Processor Socket
- LGA1151 Socket
- Max Processors Qty
- 1
- Compatible Processors
- Pentium, Celeron, Core i5, Core i3, Core i7
Supported RAM
- Max Size
- 64 GB
- Technology
- DDR4
- Bus Clock
- 2133 MHz
- Supported RAM Integrity Check
- Non-ECC
- Registered or Buffered
- Unbuffered
- Features
- Dual channel memory architecture, Intel Extreme Memory Profiles (XMP)
Graphics
- Max Allocated RAM Size
- 512 MB
Features
- BIOS Type
- AMI
- BIOS Features
- WfM 2.0 support, Multilingual BIOS, ASUS Quiet Thermal Solution, UEFI BIOS, ACPI 5.0 support, ASUS EZ Flash 3, DMI 3.0 support, SMBIOS 3.0 support
- Sleep / Wake Up
- Wake on LAN (WOL), wake on PME
- Hardware Features
- Jack retasking, ASUS Q-Design, ESD Guards, Q-DIMM, GPU Boost, ASUS EZ DIY, Q-LED, Q-Slot, CrashFree BIOS 3, audio jack detect technology, ASUS Q-Shield, Intel Extreme Memory Profile (XMP) support, Intel Turbo Boost Technology 2.0, ASUS DIGI+ VRM, Intel Clear Video HD Technology, Fanless Design Heatsink, SupremeFX Shielding technology, AMD Quad CrossFireX technology support, Intel InTru 3D Technology, Intel Insider, Intel Quick Sync Video, Disk Unlocker, ASUS Enhanced DRAM Overcurrent Protection, Preboot eXecution Environment (PXE), ASUS Stainless Steel Back I/O, ASUS Fan Xpert 3, GameFirst III, LANGuard, Sonic Radar II, USB 3.1 Boost
Miscellaneous
- Included Accessories
- I/O back plate, cable labels, 1 x M.2 screw
- Cables Included
- 4 x Serial ATA cable
- Software Included
- Drivers & Utilities, ASUS AI Charger+, ASUS AI Suite III, ASUS EZ Update, ROG GameFirst III, Antivirus (OEM version), Media Streamer, ASUS RAMCache, ASUS EZ Flash 3
- Compliant Standards
- Plug and Play
- Width
- 30.5 cm
- Depth
- 24.4 cm
