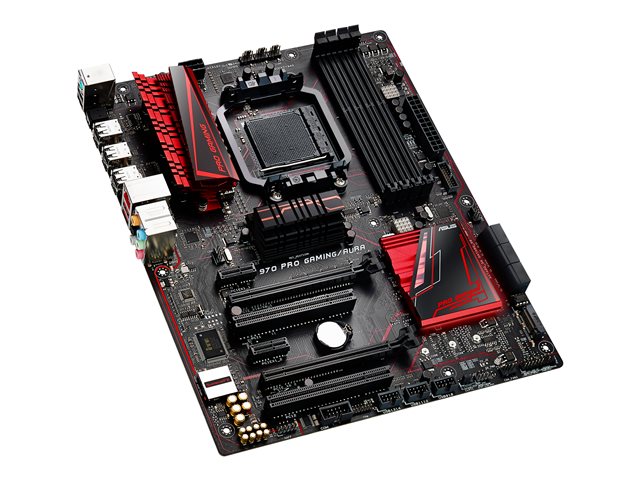

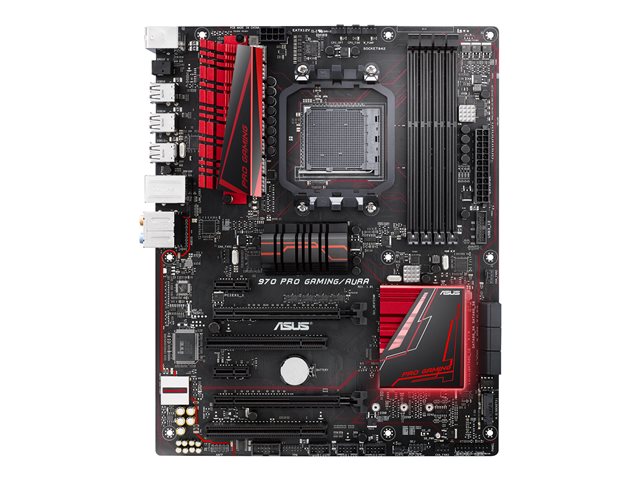

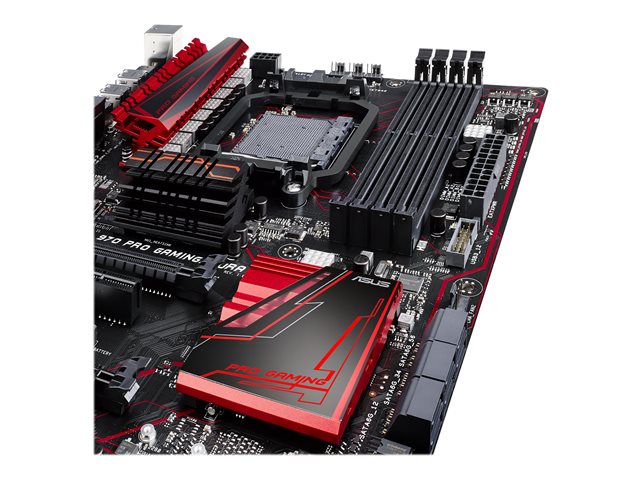

ASUS 970 PRO GAMING/AURA - motherboard - ATX - Socket AM3+ - AMD 970
- Product code:
- P233143P | 90MB0PU0-M0EAY0
- ASUS 970 PRO GAMING/AURA
- Motherboard
- ATX
- Socket AM3+
- AMD 970 Chipset
- USB 3.0, USB 3.1
ASUS 970 PRO GAMING/AURA - motherboard - ATX - Socket AM3+ - AMD 970
Sorry, this item is currently out of stock.
Sorry, this item is currently out of stock.
Don't worry, we've got loads of great alternatives! Explore our full range of available Motherboards.
Business Price Promise
Buy from us safe in the knowledge you’ve paid a great price.
If you find Argos, John Lewis, AO.com or eBuyer.com has the same product at a cheaper price, including voucher offers, we’ll match it – even up to 14 days after purchase.
Learn more
Product information
ASUS 970 PRO GAMING/AURA - Motherboard - ATX - Socket AM3+ - AMD 970 Chipset - USB 3.0, USB 3.1 - Gigabit LAN - HD Audio (8-channel)
Specifications
Basic Specifications
- Manufacturer's Part Number
- 90MB0PU0-M0EAY0
- EAN
- 4716659873266
- Product Type
- Motherboard - ATX
- Audio
- HD Audio (8-channel)
- Processor Socket
- 1 x Socket AM3+
- Chipset Type
- AMD 970 / AMD SB950
- USB / FireWire Ports
- 2 x USB 3.1 + 8 x USB 2.0 + (2 x USB 3.0 + 6 x USB 2.0 via headers)
- Manufacturer Warranty
- 3-year warranty
- Compatible Processors
- Sempron, Phenom II X3, Athlon II X2, Phenom II X2, Athlon II X4, Athlon II X3, Phenom II X4, Phenom II X6, FX
- LAN
- Gigabit Ethernet
- Product Description
- ASUS 970 PRO GAMING/AURA - motherboard - ATX - Socket AM3+ - AMD 970
- Model
- ASUS 970 PRO GAMING/AURA
- RAM Supported
- 4 DIMM slots - DDR3, non-ECC, unbuffered
- Max RAM Size
- 32 GB
- Storage Ports
- 6 x SATA-600 (RAID), 1 x M.2
LAN
- Network Controller
- Intel I211-AT
- Network Interfaces
- Gigabit Ethernet
Expansion / Connectivity
- Expansion Slots
- 1 x CPU ¦ 4 x DIMM 240-pin ¦ 2 x PCIe 2.0 x16 (dual x8 mode; single card: x16 mode) ¦ 2 x PCIe 2.0 x1 ¦ 2 x PCI
- Storage Interfaces
- AMD SB950: SATA-600 / PCIe 3.0 -connectors: 6 x 7pin Serial ATA, 1 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5

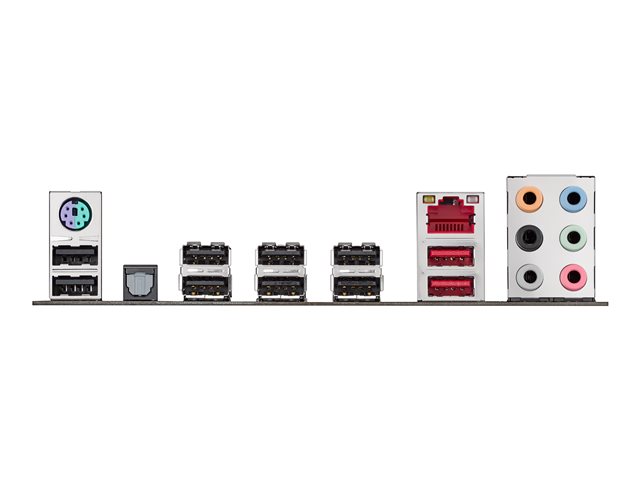

- Interfaces
- 1 x PS/2 keyboard / mouse ¦ 1 x LAN (Gigabit Ethernet) ¦ 2 x USB 3.1 ¦ 8 x USB 2.0 ¦ 1 x TOSLINK ¦ 1 x audio line-out - mini-jack ¦ 1 x audio line-in - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x audio line-out (center/subwoofer) - mini-jack ¦ 1 x audio line-out (rear) - mini-jack ¦ 1 x audio line-out (side surround) - mini-jack
- Internal Interfaces
- 6 x USB 2.0 - header ¦ 2 x USB 3.0 - header ¦ 1 x audio - header ¦ 1 x serial - header
- Power Connectors
- 24-pin main power connector, 8-pin ATX12V connector
Audio
- Type
- HD Audio (8-channel)
- Audio Codec
- SupremeFX
- Compliant Standards
- High Definition Audio
General
- Product Type
- Motherboard - ATX
- Chipset Type
- AMD 970 / AMD SB950
- Processor Socket
- Socket AM3+
- Max Processors Qty
- 1
- Compatible Processors
- Sempron, Phenom II X3, Athlon II X2, Phenom II X2, Athlon II X4, Athlon II X3, Phenom II X4, Phenom II X6, FX
Supported RAM
- Max Size
- 32 GB
- Technology
- DDR3
- Bus Clock
- 1600 MHz, 1333 MHz, 1066 MHz, 1866 MHz, 2133 MHz (O.C.)
- Supported RAM Integrity Check
- Non-ECC
- Registered or Buffered
- Unbuffered
- Features
- Dual channel memory architecture
Manufacturer Warranty
- Service & Support
- Limited warranty - 3 years
Features
- BIOS Features
- DMI 2.0 support, WfM 2.0 support, Multilingual BIOS, ASUS Quiet Thermal Solution, ASUS EZ Flash 2, ACPI 2.0a support, UEFI BIOS, SMBIOS 2.7 support
- Sleep / Wake Up
- Wake on LAN (WOL), wake on PME
- Hardware Features
- AMD Cool 'n' Quiet Technology, jack retasking, ASUS Q-Design, GameFirst, ESD Guards, Q-DIMM, ASUS EZ DIY, Q-LED, Q-Slot, CrashFree BIOS 3, audio jack detect technology, ASUS Q-Shield, NVIDIA Quad SLI Technology Support, ASUS DIGI+ VRM, SupremeFX Shielding technology, AMD Quad CrossFireX technology support, ASUS Fan Xpert 2, Disk Unlocker, Hyper Transport 3.0, ASUS Enhanced DRAM Overcurrent Protection, Preboot eXecution Environment (PXE), ASUS Stainless Steel Back I/O, ASUS O.C. Tuner, LANGuard, Sonic Radar II, USB 3.1 Boost, ASUS Gamer's Guardian, AURA RGB Lighting Control
Miscellaneous
- Included Accessories
- Cable ties, I/O back plate, cable labels, 1 x M.2 screw
- Cables Included
- 2 x Serial ATA cable ¦ 1 x SLI bridge
- Software Included
- Drivers & Utilities, ASUS EZ Flash 2, ASUS AI Charger+, ASUS AI Suite III, ASUS EZ Update, Antivirus (OEM version), Media Streamer, ASUS RAMCache
- Compliant Standards
- Plug and Play, ACPI 2.0a
- Width
- 30.5 cm
- Depth
- 24.4 cm
