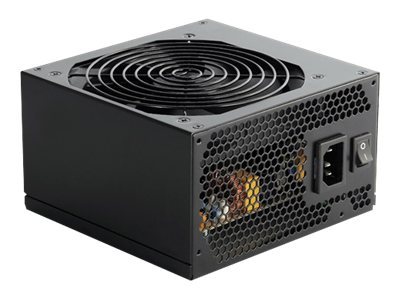

Gigabyte Superb E620 GE-E620A-C3 - power supply - 620 Watt
- Product code:
- P174326P | 24EPG-E50AC1-29R
- Gigabyte Superb E620 GE-E620A-C3
- Power supply (internal)
- ATX12V 2.3
- 80 PLUS
- AC 100-240 V
- 620 Watt
Gigabyte Superb E620 GE-E620A-C3 - power supply - 620 Watt
Sorry, this item is currently out of stock.
Sorry, this item is currently out of stock.
Don't worry, we've got loads of great alternatives! Explore our full range of available Windows desktops.
Desktop PC Buying Guide Business Price Promise
Buy from us safe in the knowledge you’ve paid a great price.
If you find Argos, John Lewis, AO.com or eBuyer.com has the same product at a cheaper price, including voucher offers, we’ll match it – even up to 14 days after purchase.
Learn more
Product information
Gigabyte Superb E620 GE-E620A-C3 - Power supply (internal) - ATX12V 2.3 - 80 PLUS - AC 100-240 V - 620 Watt - active PFC
Specifications
Basic Specifications
- Manufacturer's Part Number
- 24EPG-E50AC1-29R
- EAN
- 4719331103828
- Cooling System
- 120 mm fan
- 80 PLUS Certification
- 80 PLUS
- Input Voltage
- AC 100-240 V
- Output connectors
- 1 x power 24 pin ATX with detachable 4 pin section ¦ 1 x power 8 pin EPS12V with detachable 4 pin ATX12V section ¦ 2 x 8 pin PCI Express power with detachable 2 pin section ¦ 4 x 15 pin Serial ATA power ¦ 4 x 4 PIN internal power ¦ 1 x 4 PIN mini-power connector
- Device Type
- Power supply - active Power Factor Correction (PFC) - internal
- Power Capacity
- 620 Watt
- Output Connector(s)
- Power 24 pin ATX with detachable 4 pin section ¦ 1 x power 8 pin EPS12V with detachable 4 pin ATX12V section ¦ 2 x 8 pin PCI Express power with detachable 2 pin section ¦ 4 x 15 pin Serial ATA power ¦ 4 x 4 PIN internal power ¦ 1 x 4 PIN mini-power connector
- Model
- Gigabyte Superb E620 GE-E620A-C3
- Specification Compliance
- ATX12V 2.3
- Output Current
- +3.3V - 24 A ¦ +5V - 24 A ¦ +12V1 - 18 A ¦ +12V2 - 18 A ¦ -12V - 0.5 A ¦ +5VSB - 2.5 A
- Dimensions (WxDxH)
- 15 cm x 14 cm x 8.6 cm
- Weight
- 2 kg
- Product Description
- Gigabyte Superb E620 GE-E620A-C3 - power supply - 620 Watt
- Output Voltage
- +3.3, +5, ±12 V
General
- Device Type
- Power supply - active Power Factor Correction (PFC) - internal
- Specification Compliance
- ATX12V 2.3
- PSU Form Factor
- ATX
Dimensions & Weight
- Width
- 15 cm
- Depth
- 14 cm
- Height
- 8.6 cm
- Weight
- 2 kg
Power Device
- Input Voltage
- AC 100-240 V
- Frequency Required
- 50 - 60 Hz
- Power Output Connectors Details
- 1 x power 24 pin ATX with detachable 4 pin section ¦ 1 x power 8 pin EPS12V with detachable 4 pin ATX12V section ¦ 2 x 8 pin PCI Express power with detachable 2 pin section ¦ 4 x 15 pin Serial ATA power ¦ 4 x 4 PIN internal power ¦ 1 x 4 PIN mini-power connector
- Output Voltage
- +3.3, +5, ±12 V
- Power Capacity
- 620 Watt
- Output Current
- +3.3V - 24 A ¦ +5V - 24 A ¦ +12V1 - 18 A ¦ +12V2 - 18 A ¦ -12V - 0.5 A ¦ +5VSB - 2.5 A
- 80 PLUS Certification
- 80 PLUS
Miscellaneous
- Cooling System
- 120 mm fan
- Features
- Sleeved cables, over current protection, over voltage protection, SLI ready, undervoltage protection, dual 12V rails, short-circuit protection
- Compliant Standards
- CSA, TUV, C-Tick, BSMI, cUL, CB, CCC, FCC, RoHS, EuP Ready
