Startech PCI Express SATA III Mini-SAS RAID Controller Card w/ HyperDuo - storage controller (RAID) - SATA 6Gb/s / SAS 6Gb/s - PCIe 2.0 x2

Product code:
P160676P | PEXSAT34SFF
  • Quick Start Guide
  • User Manual
  • Data Transfer Rate - 6 GBps
  • RAID Level - RAID 0, RAID 1, RAID 10, JBOD
  • Supported Devices - Disk array (RAID)
  • Dimensions (WxDxH) - 12 cm x 7 cm x 2 cm
  • Manufacturer's Logo

Startech PCI Express SATA III Mini-SAS RAID Controller Card w/ HyperDuo - storage controller (RAID) - SATA 6Gb/s / SAS 6Gb/s - PCIe 2.0 x2

Product unavailable

Sorry, this item is currently out of stock.

View all Controller cards
Product unavailable

Sorry, this item is currently out of stock.

Don't worry, we've got loads of great alternatives! Explore our full range of available Controller cards.

View all Controller cards
Business Price Promise

Buy from us safe in the knowledge you’ve paid a great price.

If you find Argos, John Lewis, AO.com or eBuyer.com has the same product at a cheaper price, including voucher offers, we’ll match it – even up to 14 days after purchase.

Learn more
Product information

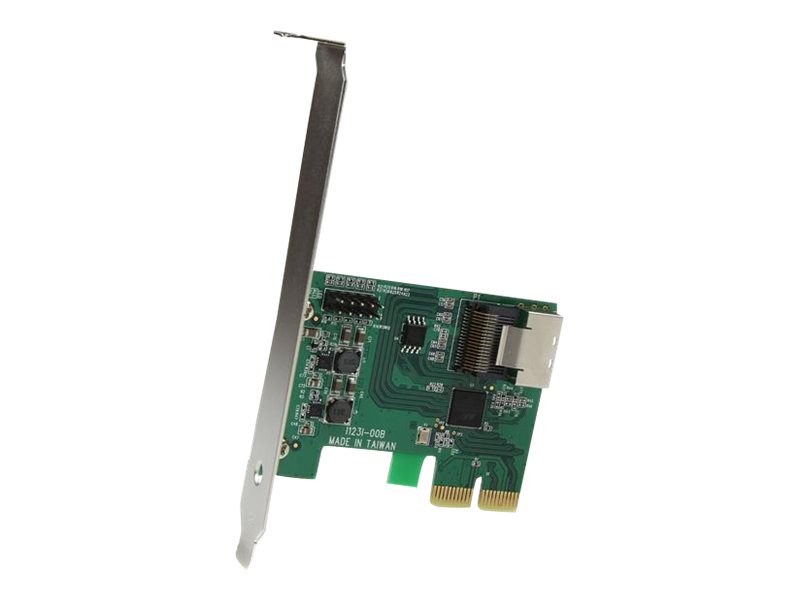

Compatability The PEXSAT34SFF PCI Express 2.0 SATA Controller Card enables 4 AHCI SATA III connections to be added to a computer through a single internal Mini-SAS (SFF-8087) port.

The Mini-SAS connector with Port Multiplier support allows for multiple SATA drives (up to 7) to be connected using a single cable. When used with the Mini-SAS to 4x SATA breakout cable or Mini-SAS SFF-8087 backplane (accessories not included, SAS drives not supported), you have a complete internal 6Gbps connectivity solution, all from a single card.

Featuring HyperDuo technology, the SATA card offers SSD auto-tiering which lets you balance the performance advantages of SSD storage with the cost-effectiveness and large capacity of standard hard drives. By combining SSD and HDD drives into a single volume (up to 3 SSD + 1 HDD), HyperDuo discreetly works in the background to identify and move frequently accessed files to the faster SSD drive(s) for improved data throughput - up to 80% of SSD performance! (The HyperDuo automatic storage tiering feature is compatible with Windows XP, Vista, 7 and 8 only).

Compliant with SATA revision 3.0, this PCI Express SATA RAID card delivers up to 6Gbps of data bandwidth; ideal for high performance hard drives and solid state drives (SSD). Plus, the controller card offers an effective hardware RAID solution, with native RAID (0, 1, 1+0) support.

Startech PCI Express SATA III Mini-SAS RAID Controller Card w/ HyperDuo - Storage controller (RAID) - 4 Channel - SATA 6Gb/s / SAS 6Gb/s - low profile - RAID 0, 1, 10, JBOD - PCIe 2.0 x2

View more
Specifications

Basic Specifications

Manufacturer's Part Number
PEXSAT34SFF
EAN
0650308499756
Supported Devices
Disk array (RAID)
System Requirements
Linux, Apple MacOS X 10.6, Microsoft Windows Vista (32/64 bits), Microsoft Windows 7 (32/64 bits), Microsoft Windows XP (32/64 bits), Apple MacOS X Lion 10.7, Apple OS X 10.8 Mountain Lion, Windows 8 (32/64 bits)
Device Type
Storage controller (RAID) - plug-in card - low profile
Bus Type
PCIe 2.0 x2
RAID Level
RAID 0, RAID 1, RAID 10, JBOD
Channel Qty
4
Dimensions (WxDxH)
12 cm x 7 cm x 2 cm
Manufacturer Warranty
2-year warranty
Weight
40 g
Data Transfer Rate
6 Gbit/s
Product Description
Startech PCI Express SATA III Mini-SAS RAID Controller Card w/ HyperDuo - storage controller (RAID) - SATA 6Gb/s / SAS 6Gb/s - PCIe 2.0 x2
Model
Startech PCI Express SATA III Mini-SAS RAID Controller Card w/ HyperDuo
Interface
SATA 6Gb/s / SAS 6Gb/s

Expansion / Connectivity

Interfaces
1 x SATA 6Gb/s / SAS 6Gb/s - 36 pin 4i Mini MultiLane (internal)
Compatible Slots
1 x PCI Express 2.0 x2

Environmental Parameters

Min Operating Temperature
5 °C
Max Operating Temperature
50 °C
Humidity Range Operating
20 - 80% (non-condensing)

General

Device Type
Storage controller (RAID) - plug-in card - low profile
Host Bus
PCIe 2.0 x2

Manufacturer Warranty

Service & Support
Limited warranty - 2 years

Storage Controller

Interface
SATA 6Gb/s / SAS 6Gb/s
Data Transfer Rate
6 Gbit/s
Supported Devices
Disk array (RAID)
Channel Qty
4
RAID Level
RAID 0, RAID 1, RAID 10, JBOD
Processor
Marvell 88SE9230

Dimensions & Weight

Width
12 cm
Depth
7 cm
Height
2 cm
Weight
40 g

Miscellaneous

Included Accessories
Low-profile bracket
Compliant Standards
FCC, RoHS

Software / System Requirements

OS Required
Linux, Apple MacOS X 10.6, Microsoft Windows Vista (32/64 bits), Microsoft Windows 7 (32/64 bits), Microsoft Windows XP (32/64 bits), Apple MacOS X Lion 10.7, Apple OS X 10.8 Mountain Lion, Windows 8 (32/64 bits)
