Startech HDMI Video Over IP Gigabit LAN Ethernet Receiver for ST12MHDLAN - 1080p - HDMI Extender over Cat6 Extender Kit (ST12MHDLANRX) - video/audio extender - 1GbE, HDMI
- Product code:
- P170662P | ST12MHDLANRX
- User Manual
- Startech HDMI Video Over IP Gigabit LAN Ethernet Receiver for ST12MHDLAN
- 1080p
- HDMI Extender over Cat6 Extender Kit (ST12MHDLANRX)
- Video/audio extender
- receiver
Startech HDMI Video Over IP Gigabit LAN Ethernet Receiver for ST12MHDLAN - 1080p - HDMI Extender over Cat6 Extender Kit (ST12MHDLANRX) - video/audio extender - 1GbE, HDMI
Sorry, this item is currently out of stock.
Sorry, this item is currently out of stock.
Don't worry, we've got loads of great alternatives! Explore our full range of available Cables, Adaptors & Power.
Business Price Promise
Buy from us safe in the knowledge you’ve paid a great price.
If you find Argos, John Lewis, AO.com or eBuyer.com has the same product at a cheaper price, including voucher offers, we’ll match it – even up to 14 days after purchase.
Learn more
Product information
Use with ST12MHDLAN to extend HDMI Over IP to additional displays. The ST12MHDLANRX HDMI over IP Receiver works with the ST12MHDLAN HDMI over IP Extender Kit to extend the HDMI audio/video signal to an additional display or projector through a Gigabit LAN Network for a Point-to-Multi Point installation. Up to 100 additional Receivers can be added to a single Network, allowing for a highly scalable installation.
In a point-to-multipoint configuration, the ST12MHDLAN and ST12MHDLANRX (sold separately) can be connected through an unmanaged or managed Gigabit LAN portal to span the entire distance of your network, allowing you to connect one source (transmitter) to multiple displays (receivers) over IP. When used with a managed Gigabit Ethernet switch (with IGMP) you can connect up to 100 displays on a local area network. For added scalability, up to 16 different ST12MHDLAN Transmitter units can be added to a single network (IGMP / Managed Network Switch required) with up to 100 displays in total.

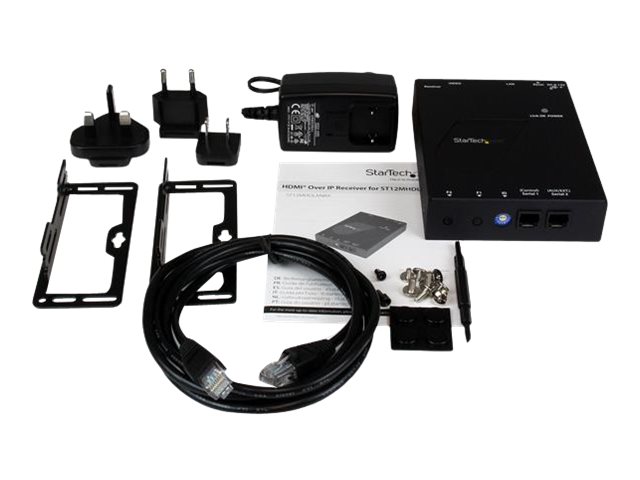

Each ST12MHDLANRX Receiver includes optional mounting hardware for a professional and tidy installation. Plus, because the extender uses standard non-proprietary Cat5e/Cat6 Ethernet cable with RJ45 connectors, it eliminates both the expense and hassle of running specialized cables.
Ideal for High-Definition applications, the Receiver supports 1080p video resolutions, stereo audio and features EDID Copy, which ensures native resolution and maximum compatibility with your display or projector, for a convenient plug-and-play installation.
Please Note: If using more than 1 Transmitter or more than 4 Receivers an IGMP/Managed Network Switch is recommended for optimal performance. Non-managed network switches may also limit the performance of other devices connected to the same network.
Startech HDMI Video Over IP Gigabit LAN Ethernet Receiver for ST12MHDLAN - 1080p - HDMI Extender over Cat6 Extender Kit (ST12MHDLANRX) - Video/audio extender - receiver - 1GbE, HDMI - up to 100 m - for P/N: ST12MHDLAN, SVA12M2NEUA, SVA12M5NA, VIDWALLMNT
Specifications
Basic Specifications
- Manufacturer's Part Number
- ST12MHDLANRX
- EAN
- 0650308507666
- Power
- AC 120/230 V
- Data Link Protocol
- 1GbE, HDMI
- Device Type
- Video/audio extender (receiver)
- Manufacturer Warranty
- 2-year warranty
- Data Transfer Rate
- 1 Gbps
- Designed For
- P/N: ST12MHDLAN, SVA12M2NEUA, SVA12M5NA, VIDWALLMNT
- Model
- Startech HDMI Video Over IP Gigabit LAN Ethernet Receiver for ST12MHDLAN - 1080p - HDMI Extender over Cat6 Extender Kit (ST12MHDLANRX)
- Product Type
- Video/audio extender
- Form Factor
- External
- Dimensions (WxDxH)
- 9.7 cm x 21.1 cm x 2.6 cm
- Max Transfer Distance
- 100 m
- Weight
- 438 g
- Product Description
- Startech HDMI Video Over IP Gigabit LAN Ethernet Receiver for ST12MHDLAN - 1080p - HDMI Extender over Cat6 Extender Kit (ST12MHDLANRX) - video/audio extender - 1GbE, HDMI
Networking
- Connectivity Technology
- Wired
- Data Link Protocol
- 1GbE, HDMI
- Data Transfer Rate
- 1 Gbps
- Max Resolution
- 1920 x 1080 / 1080p @ 60 Hz
- Max Transfer Distance
- 100 m
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 40 °C
- Humidity Range Operating
- 0 - 80%
Compatibility Information
- Designed For
- P/N: ST12MHDLAN, SVA12M2NEUA, SVA12M5NA, VIDWALLMNT
General
- Device Type
- Video/audio extender (receiver)
- Form Factor
- External
- Colour
- Black
Manufacturer Warranty
- Service & Support
- Limited warranty - 2 years
Dimensions & Weight
- Width
- 9.7 cm
- Depth
- 21.1 cm
- Height
- 2.6 cm
- Weight
- 438 g
Expansion / Connectivity
- Interfaces

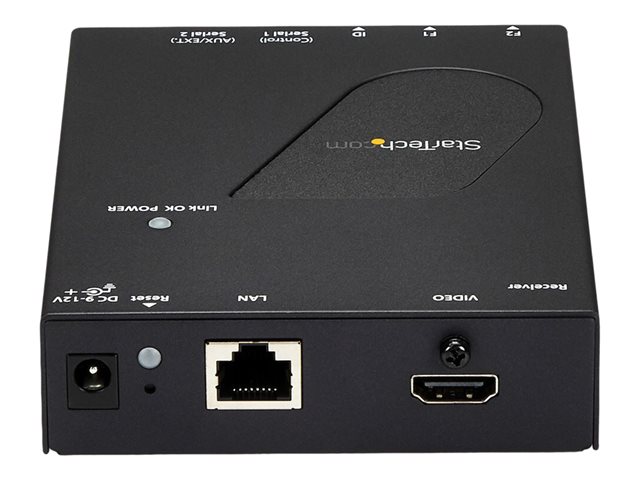

- 1 x - RJ-45 female ¦ 1 x display / video - HDMI output - 19 pin HDMI Type A female
Power
- Power Device
- External power adapter
- Voltage Required
- AC 120/230 V
Miscellaneous
- Compliant Standards
- FCC, RoHS
