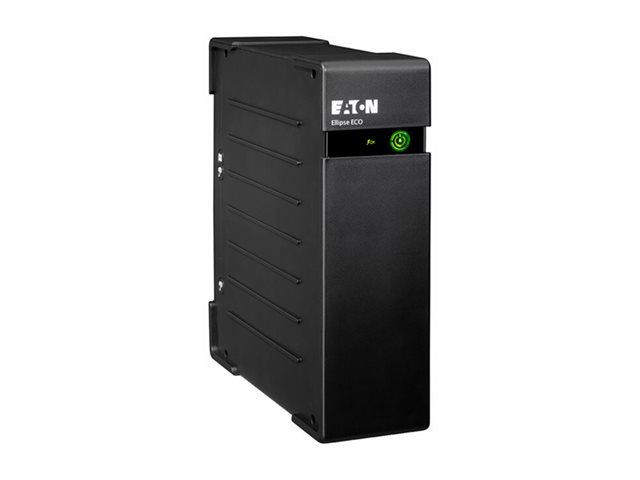

Eaton Ellipse ECO 800 USB IEC - UPS - 500 watt - 800 VA
- Product code:
- P274858P | EL800USBIEC
- Product Data Sheet
- User Manual
- Eaton Ellipse ECO 800 USB IEC
- UPS (rack-mountable / external)
- AC 230 V
- 500 watt
Eaton Ellipse ECO 800 USB IEC - UPS - 500 watt - 800 VA
Sorry, this item is currently out of stock.
Sorry, this item is currently out of stock.
Don't worry, we've got loads of great alternatives! Explore our full range of available Cables, Adaptors & Power.
Business Price Promise
Buy from us safe in the knowledge you’ve paid a great price.
If you find Argos, John Lewis, AO.com or eBuyer.com has the same product at a cheaper price, including voucher offers, we’ll match it – even up to 14 days after purchase.
Learn more
Product information
Eaton Ellipse ECO 800 USB IEC - UPS (rack-mountable / external) - AC 230 V - 500 watt - 800 VA - USB - output connectors: 4 - 2U - 19"
Specifications
Basic Specifications
- Manufacturer's Part Number
- EL800USBIEC
- EAN
- 3553340620836
- Input Voltage
- AC 230 V
- Output connectors

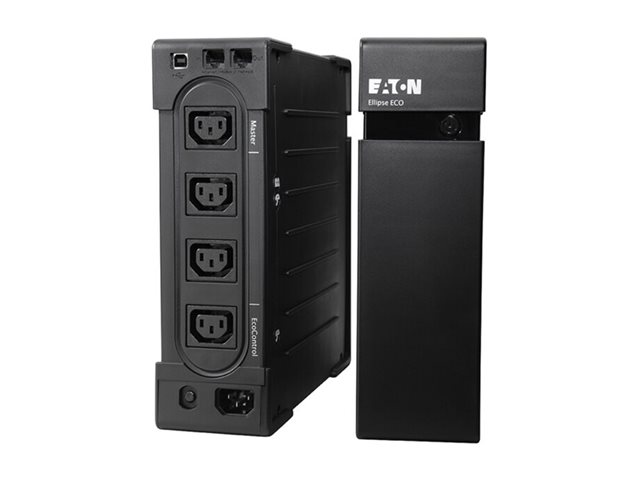

- 3 x power IEC 60320 (UPS and surge) ¦ 1 x power IEC 60320 (surge)
- System Requirements
- Linux, Apple MacOS X, Microsoft Windows Vista / XP / 7
- Run Time (Up To)
- 11 min at half load
- Device Type
- UPS - rack-mountable / external
- Manufacturer Warranty
- 2-year warranty
- Input Connectors
- 1 x power
- Power Capacity
- 500 watt / 800 VA
- Networking
- USB
- Model
- Eaton Ellipse ECO 800 USB IEC
- Product Type
- UPS
- Dimensions (WxDxH)
- 8.1 cm x 23.5 cm x 26.3 cm
- Weight
- 4.1 kg
- Product Description
- Eaton Ellipse ECO 800 USB IEC - UPS - 500 watt - 800 VA
- Battery
- Lead Acid
- Rack Size
- 19" - 2U
- Output Voltage
- AC 220/230/240 V
Networking
- Remote Management Interface
- USB
General
- Device Type
- UPS - rack-mountable / external
- Height (Rack Units)
- 2U
- Rack Size
- 19"
Manufacturer Warranty
- Service & Support
- Limited warranty - 2 years
Dimensions & Weight
- Width
- 8.1 cm
- Depth
- 23.5 cm
- Height
- 26.3 cm
- Weight
- 4.1 kg
Expansion / Connectivity
- Interfaces
- 1 x management (USB) - 4 pin USB Type B
Power Device
- UPS Technology
- Off-line
- Input Voltage
- AC 230 V
- Input Voltage Range
- AC 184 - 264 V
- Input Voltage Range (Adjustable)
- AC 161 - 284 V
- Frequency Provided
- 50/60 Hz
- Frequency Required
- 50/60 Hz
- Input Connectors
- 1 x power
- Power Output Connectors Details
- 3 x power IEC 60320 (UPS and surge) ¦ 1 x power IEC 60320 (surge)
- Output Voltage
- AC 220/230/240 V 50/60 Hz
- Power Capacity
- 500 watt / 800 VA
- Dataline Surge Protection
- Network/phone line - RJ-45/RJ-11
- Surge Suppression
- Yes
- Circuit Protection
- Circuit breaker
Battery
- Technology
- Lead Acid
- Run Time (Up To)
- 11 min at half load ¦ 6 min at 70% load
Miscellaneous
- Cables Included
- USB cable - external
- Rack Mounting Kit
- Optional
- Features
- Wall mountable, audible alarm, LED indicators, deep discharge protection, cold-start function, Eco-efficiency
- Compliant Standards
- CB, IEC 62040-1-1, IEC 62040-2, IEC 60950-1, IEC 61643-1
Software / System Requirements
- Software Included
- Intelligent Power Manager
- OS Required
- Linux, Apple MacOS X, Microsoft Windows Vista / XP / 7
