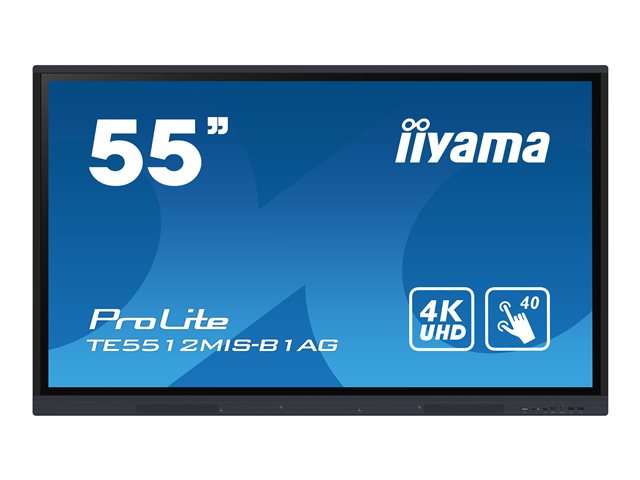

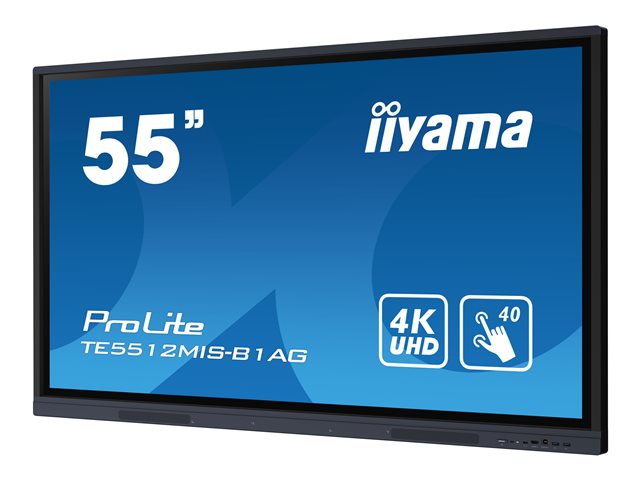

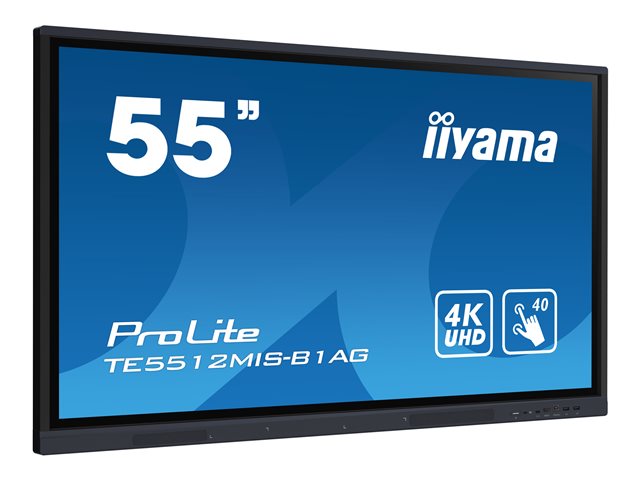

iiyama ProLite TE5512MIS-B1AG 55" Class (54.6" viewable) LED-backlit LCD display - 4K - for digital signage / interactive communication
- Product code:
- P298841P | TE5512MIS-B1AG
- Product Data Sheet
- User Manual
- iiyama ProLite TE5512MIS-B1AG
- 55" Diagonal Class (54.6" viewable) LED-backlit LCD display
- interactive digital signage
- with touchscreen
iiyama ProLite TE5512MIS-B1AG 55" Class (54.6" viewable) LED-backlit LCD display - 4K - for digital signage / interactive communication
Sorry, this item is currently out of stock.
Sorry, this item is currently out of stock.
Don't worry, we've got loads of great alternatives! Explore our full range of available Digital signage displays.
Business Price Promise
Buy from us safe in the knowledge you’ve paid a great price.
If you find Argos, John Lewis, AO.com or eBuyer.com has the same product at a cheaper price, including voucher offers, we’ll match it – even up to 14 days after purchase.
Learn more
Product information
iiyama ProLite TE5512MIS-B1AG - 55" Diagonal Class (54.6" viewable) LED-backlit LCD display - interactive digital signage - with touchscreen - 4K UHD (2160p) 3840 x 2160 - Direct LED - black bezel with matte finish
Specifications
Basic Specifications
- Manufacturer's Part Number
- TE5512MIS-B1AG
- EAN
- 4948570121908
- Power Consumption Operational
- 105 watt
- Voltage
- AC 100-240 V (50/60 Hz)
- TV Tuner
- No tuner
- Dimensions (WxDxH) - without stand
- 127.1 cm x 8.7 cm x 77.4 cm
- Diagonal Class
- 55"
- Frame Rate & Enhancement Technology
- 60 Hz Refresh Rate
- Colour
- Black bezel with matte finish
- HDMI Ports Qty
- 3 ports
- LCD Backlight Technology
- Direct LED
- Display Format
- 4K UHD (2160p)
- USB
- Yes
- Display Resolution
- 4K Ultra HD (2160p)
- Model
- iiyama ProLite TE5512MIS-B1AG
- Connectivity
- Wi-Fi, LAN
- Product Type
- LED-backlit LCD flat panel display with touchscreen
- Speaker System
- 2 speakers
- PC Interface
- VGA (HD-15), HDMI, DisplayPort
- Touchscreen
- Yes
- Video Interface
- HDMI
- Commercial Use
- Yes - interactive digital signage
- Storage Capacity
- 32 GB
- Manufacturer Warranty
- 5-year warranty
- Diagonal Size
- 54.6"
- Resolution
- 3840 x 2160
- Image Aspect Ratio
- 16:9
- Technology
- IPS
- Weight
- 26.1 kg
- Product Description
- iiyama ProLite TE5512MIS-B1AG 55" Class (54.6" viewable) LED-backlit LCD display - 4K - for digital signage / interactive communication
- Included Accessories

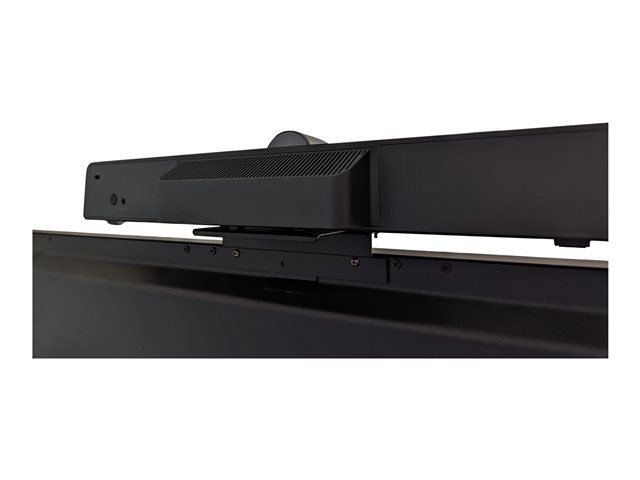

- Remote control, 4 touch pens, Wi-Fi module (OWM002), NUC mounting bracket, webcam mounting bracket
- Power Consumption Stand by
- 0.5 watt
Network & Internet Multimedia
- Functionality
- Digital video playback, WEB browsing, Internet video playback, cloud storage playback
- Connectivity
- Wi-Fi, LAN
- LAN Protocol
- Fast Ethernet
- Wi-Fi Protocol
- 802.11b, 802.11g, 802.11n, 802.11a, 802.11ac
- Bluetooth Version
- Bluetooth 5.0
- Connect & Share
- EShare, iiyama Share
Dimensions & Weight (Shipping)
- Width (Shipping)
- 140.1 cm
- Depth (Shipping)
- 22 cm
- Height (Shipping)
- 85.9 cm
- Weight (Shipping)
- 34.5 kg
Stands & Mounts

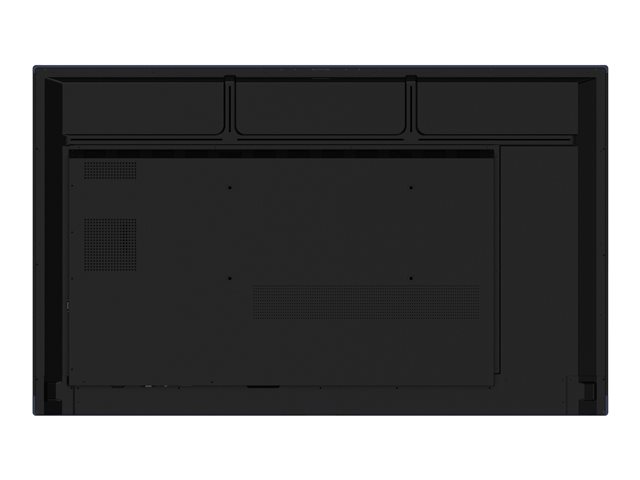

- Flat Panel Mount Interface
- 400 x 200 mm
- VESA Compatibility
- Yes
Connections
- Connector Type
- 3 x HDMI input ¦ USB-C with 65W Power Delivery - front ¦ VGA input - bottom ¦ Audio line-in - bottom ¦ RS-232C input ¦ LAN input ¦ Infrared input ¦ HDMI output ¦ SPDIF output - bottom ¦ Audio line-out - bottom ¦ 2 x USB 3.0 - front ¦ Touch - side ¦ 2 x USB 3.0 - side ¦ Gigabit LAN
Power
- Power Device
- Power supply
- Input Voltage
- AC 100-240 V (50/60 Hz)
- Power Consumption Stand by
- 0.5 watt
- Power Consumption (Off Mode)
- 0.3 watt
- On / Off Switch
- Yes
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 40 °C
Remote Control
- Type
- Remote control
- Battery Included
- Yes
Audio System
- Speaker System
- 2 speakers
- Output Power / Total
- 32 watt
- Speakers
- 2 x main channel speaker - 16 watt
Media Player
- USB Port
- Yes
- Configuration
- ARM Cortex-A55 Quad-Core - 4 GB - 32 GB - Mali-G52
General
- Product Type
- LED-backlit LCD flat panel display
- Power Consumption Operational
- 105 watt
- Diagonal Class
- 55"
- Diagonal Size
- 54.6"
- Commercial Use
- Yes - interactive digital signage
- Combined With
- Touchscreen
- Operating System
- Android OS 11
- TV Tuner
- No tuner
- TV Tuner Presence
- No
- Video Interface
- HDMI
- HDMI Ports Qty
- 3 ports
- PC Interface
- VGA (HD-15), HDMI, DisplayPort
- Modes
- Landscape mode, kiosk mode
- Design
- Metal frame
- Cooling System
- Fanless
- Dimensions
- Without stand
- Width
- 127.1 cm
- Depth
- 8.7 cm
- Height
- 77.4 cm
- Weight
- 26.1 kg
- Enclosure Colour
- Black bezel with matte finish
Manufacturer Warranty
- Service & Support
- Limited warranty - 5 years
Display
- LCD Display Technology
- IPS
- Pixel Pitch
- 0.315 mm
- Colour Support
- 1070000000 colours
- Resolution
- 3840 x 2160
- Display Format
- 4K UHD (2160p)
- Image Aspect Ratio
- 16:9
- Frame Rate & Enhancement Technology
- 60 Hz Refresh Rate
- LCD Backlight Technology
- Direct LED
- Coating
- Anti-glare, 7H Hard, 25% haze, 3 mm glass
- Image Contrast Ratio
- 1200:1
- Brightness
- 400 cd/m²
- Viewing Angle
- 178 degrees
- Viewing Angle (Vertical)
- 178 degrees
- Touchpoints Qty
- 40
- Response Time
- 8 ms
- Display Menu Language
- Czech, English, German, French, Italian, Polish, Russian, Spanish, Dutch
- Operation Hours / Days
- 16 / 7
- Features
- Open Pluggable Specification slot, 8-bit support, 16/7 operation time, Frame Rate Control (FRC), PureTouch-IR technology, zero air-gap, blue light reduction, OSD lock, 88% light transmittance, integrated iiWare 10 software, MTBF 50000 hours
Miscellaneous
- Included Accessories
- 4 touch pens, Wi-Fi module (OWM002), NUC mounting bracket, webcam mounting bracket
- Cables Included

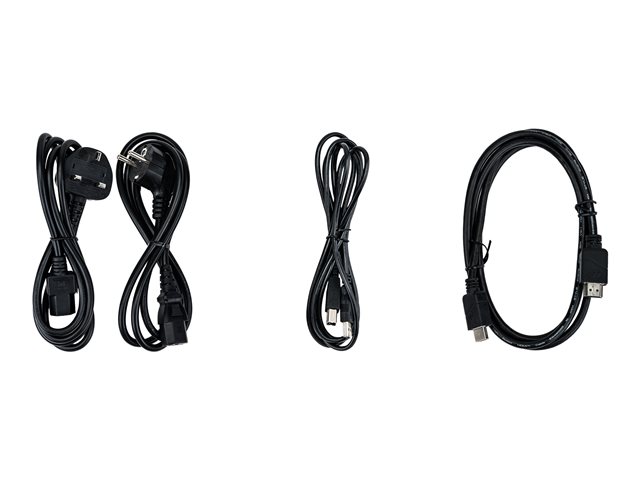

- HDMI cable ¦ USB cable
- Compliant Standards
- Plug and Play, DDC-2B, CB, RoHS, WEEE, REACH, TUV Bauart, REACH SvHC, HDCP 2.2, HDCP 2.1
