Startech 1 Port Metal Industrial USB to RS422/RS485 Serial Adapter w/ Isolation (ICUSB422IS) - serial adapter - USB
- Product code:
- P129646P | ICUSB422IS
Business Finance available
- User Manual
- Startech 1 Port Metal Industrial USB to RS422/RS485 Serial Adapter w/ Isolation (ICUSB422IS)
- Serial adapter
- USB
- RS-422, RS-485
- black
Startech 1 Port Metal Industrial USB to RS422/RS485 Serial Adapter w/ Isolation (ICUSB422IS) - serial adapter - USB
Sorry, this item is currently out of stock.
Sorry, this item is currently out of stock.
Don't worry, we've got loads of great alternatives! Explore our full range of available Office supplies.
Business Price Promise
Buy from us safe in the knowledge you’ve paid a great price.
If you find Argos, John Lewis, AO.com or eBuyer.com has the same product at a cheaper price, including voucher offers, we’ll match it – even up to 14 days after purchase.
Learn more
Product information
Add an R422/485 serial port to your laptop or desktop computer through USB.

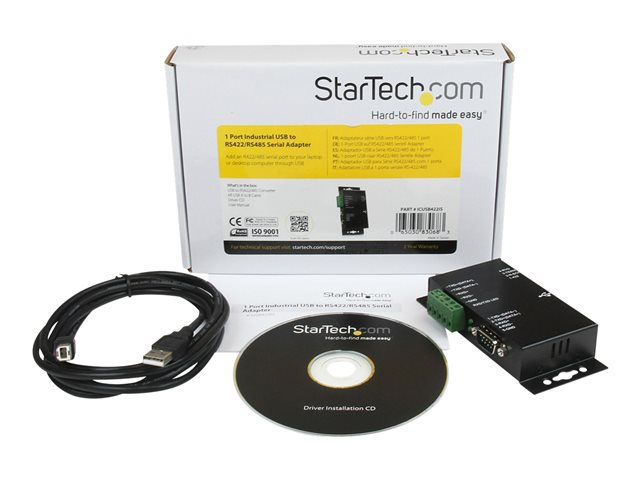

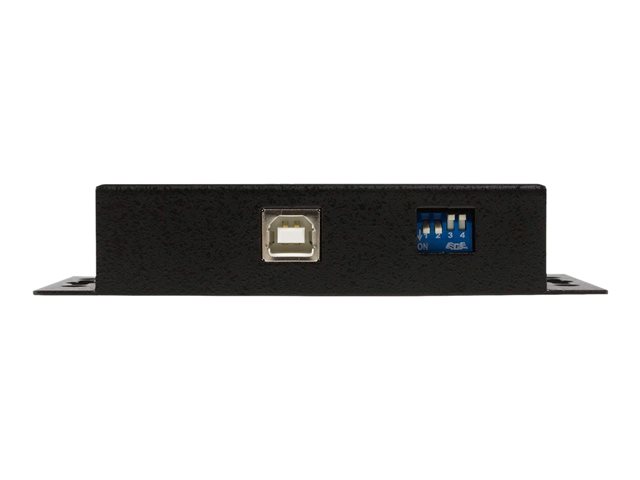

The ICUSB422IS 1 Port Metal Industrial USB to RS422/RS485 Serial Adapter w/ Isolation connects to a computer using USB and allows you to connect any RS-422 or RS-485 serial device via the provided DB9 port or hard-wired to the terminal block. The USB to serial adapter features circuit isolation to ensure that sensitive controls and devices will not be damaged while connected, making it a viable solution for connecting costly industrial serial devices. The RS422/485 Converter receives full power via the host USB connection, and provides power to the attached serial device without requiring an external power adapter. Designed to provide a durable serial solution, the USB to RS422/485 Converter is ruggedly constructed and can be mounted nearly anywhere.
Startech 1 Port Metal Industrial USB to RS422/RS485 Serial Adapter w/ Isolation (ICUSB422IS) - Serial adapter - USB - RS-422, RS-485 - black
Specifications
Basic Specifications
- Manufacturer's Part Number
- ICUSB422IS
- EAN
- 0065030830683
- Colour
- Black
- Data Link Protocol
- RS-422, RS-485
- System Requirements
- Microsoft Windows 98 Second Edition, Microsoft Windows XP Embedded, Microsoft Windows Server 2003, Microsoft Windows CE 5.0, Microsoft Windows CE 4.2, Microsoft Windows Server 2008 R2, Microsoft Windows CE 6.0, Microsoft Windows Server 2012, Microsoft Windows Server 2012 R2, Linux Kernel 3.0 or later, Microsoft Windows Server 2016, Microsoft Windows 2000/XP/Vista/7/8/8.1/10, Microsoft Windows Server 2019, Linux LTS versions only, Apple MacOS X 10.6 - 10.15, Apple macOS 11.0, Apple macOS 12.0, Microsoft Windows 11, Apple macOS 13.0
- Device Type
- Serial adapter
- Manufacturer Warranty
- 2-year warranty
- Data Transfer Rate
- 921.6 Kbps
- Model
- Startech 1 Port Metal Industrial USB to RS422/RS485 Serial Adapter w/ Isolation (ICUSB422IS)
- Product Type
- Adapter
- Interface (Bus) Type
- USB
- Form Factor
- External
- Dimensions (WxDxH)
- 5.4 cm x 2.3 cm x 9.3 cm
- Weight
- 300 g
- Product Description
- Startech 1 Port Metal Industrial USB to RS422/RS485 Serial Adapter w/ Isolation (ICUSB422IS) - serial adapter - USB
Networking
- Connectivity Technology
- Wired
- Data Link Protocol
- RS-422, RS-485
- Data Transfer Rate
- 921.6 Kbps
- Features
- USB powered
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 55 °C
- Humidity Range Operating
- 5 - 95%
General
- Device Type
- Serial adapter
- Form Factor
- External
- Interface (Bus) Type
- USB
Manufacturer Warranty
- Service & Support
- Limited warranty - 2 years
Dimensions & Weight
- Width
- 5.4 cm
- Depth
- 2.3 cm
- Height
- 9.3 cm
- Weight
- 300 g
Expansion / Connectivity
- Interfaces
- 1 x RS-422/485 - 9 pin D-Sub (DB-9) ¦ 1 x RS-422/485 - terminal block
- Connections
- 1 x USB - 4 pin USB Type B
Miscellaneous
- Cables Included
- 1 x USB cable (external) - 1.8 m
- Compliant Standards
- FCC, RoHS
- Colour
- Black
Software / System Requirements
- Software Included
- Drivers & Utilities
- OS Required
- Microsoft Windows 98 Second Edition, Microsoft Windows XP Embedded, Microsoft Windows Server 2003, Microsoft Windows CE 5.0, Microsoft Windows CE 4.2, Microsoft Windows Server 2008 R2, Microsoft Windows CE 6.0, Microsoft Windows Server 2012, Microsoft Windows Server 2012 R2, Linux Kernel 3.0 or later, Microsoft Windows Server 2016, Microsoft Windows 2000/XP/Vista/7/8/8.1/10, Microsoft Windows Server 2019, Linux LTS versions only, Apple MacOS X 10.6 - 10.15, Apple macOS 11.0, Apple macOS 12.0, Microsoft Windows 11, Apple macOS 13.0
