StarTech.com 4 Port Native PCI Express RS232 Serial Adapter Card with 16550 UART - Low Profile Serial Card (PEX4S553) - serial adapter - PCIe 1.1 - 4 ports
- P129813P | PEX4S553
Free delivery
- Processor - 1 x MCS9904CV-AA - MosChip Semiconductor
- Form Factor - Plug-in card
- Data Transfer Rate - 128 Kbps
- Data Link Protocol - RS-232
- Interface (Bus) Type - PCI Express 1.1 x1
Business Price Promise
Buy from us safe in the knowledge you’ve paid a great price.
If you find Argos, John Lewis, AO.com or eBuyer.com has the same product at a cheaper price, including voucher offers, we’ll match it – even up to 14 days after purchase.
Learn more
Product information

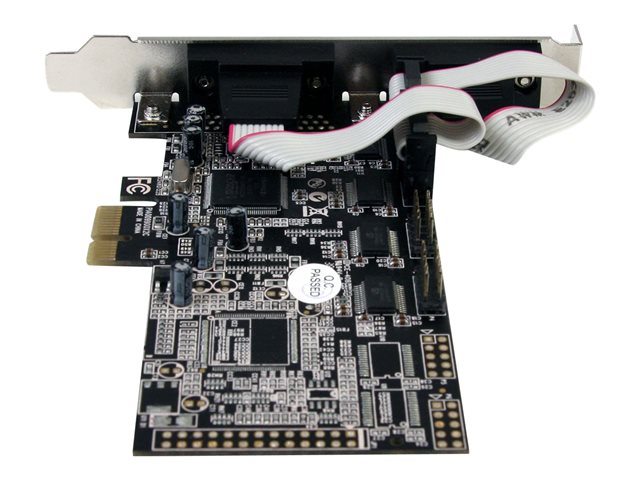

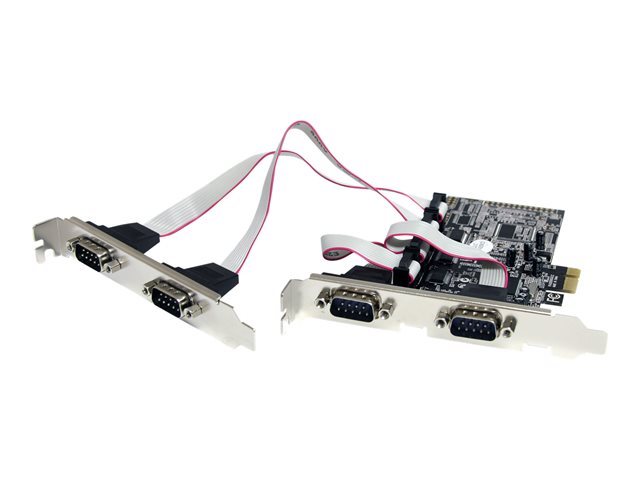

The PEX4S553 4-Port Native PCI Express RS232 Serial Adapter Card with 16550 UART lets you add 4 RS232 (DB9) serial ports, using a single PCI Express expansion slot.
Based on a native single-chip design, this 4-port serial adapter card allows you to harness the full capability offered by PCI Express (PCIe), while reducing the load applied to the CPU by as much as 48% over conventional bridge-chip serial cards.

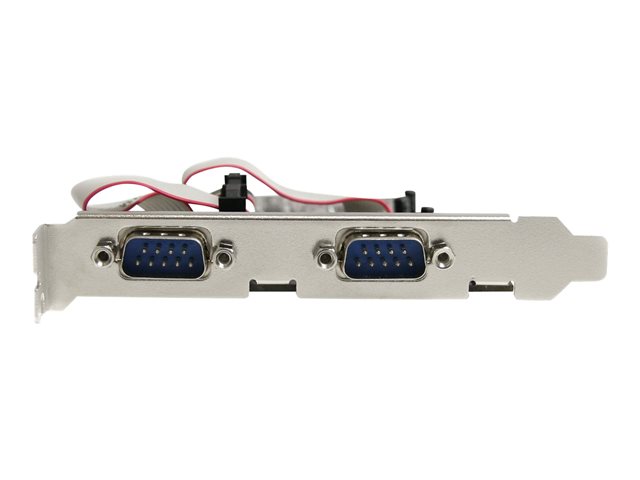

The RS232 Serial Adapter Card includes 4 half-height/low-profile brackets, allowing the card to be installed into almost any PC case, regardless of form factor.
StarTech.com 4 Port Native PCI Express RS232 Serial Adapter Card with 16550 UART - Low Profile Serial Card (PEX4S553) - Serial adapter - PCIe 1.1 - RS-232 - 4 ports
Specifications
Basic Specifications
- Manufacturer's Part Number
- PEX4S553
- EAN
- 0065030843553
- Ports Qty
- 4 ports
- System Requirements
- Linux, Microsoft Windows Server 2008 R2, Microsoft Windows Vista (32/64 bits), Microsoft Windows 7 (32/64 bits), Microsoft Windows XP (32/64 bits), Microsoft Windows Server 2003 (32/64-bits), Windows 8 (32/64 bits), Windows 10 (32/64 bits)
- Interface (Bus) Type
- PCI Express 1.1 x1
- Device Type
- Serial adapter
- Form Factor
- Plug-in card
- Dimensions (WxDxH)
- 1.9 cm x 13 cm x 12 cm
- Manufacturer Warranty
- Limited lifetime warranty
- Weight
- 80 g
- Data Transfer Rate
- 128 Kbps
- Product Description
- StarTech.com 4 Port Native PCI Express RS232 Serial Adapter Card with 16550 UART - Low Profile Serial Card (PEX4S553) - serial adapter - PCIe 1.1 - 4 ports
- Model
- StarTech.com 4 Port Native PCI Express RS232 Serial Adapter Card with 16550 UART - Low Profile Serial Card (PEX4S553)
- Data Link Protocol
- RS-232
- Processor
- 1 x MosChip Semiconductor MCS9904CV-AA
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 50 °C
- Humidity Range Operating
- 5 - 85%
Networking
- Connectivity Technology
- Wired
- Data Link Protocol
- RS-232
- Data Transfer Rate
- 128 Kbps
General
- Device Type
- Serial adapter - 4 ports
- Form Factor
- Plug-in card
- Interface (Bus) Type
- PCI Express 1.1 x1
Expansion / Connectivity
- Interfaces

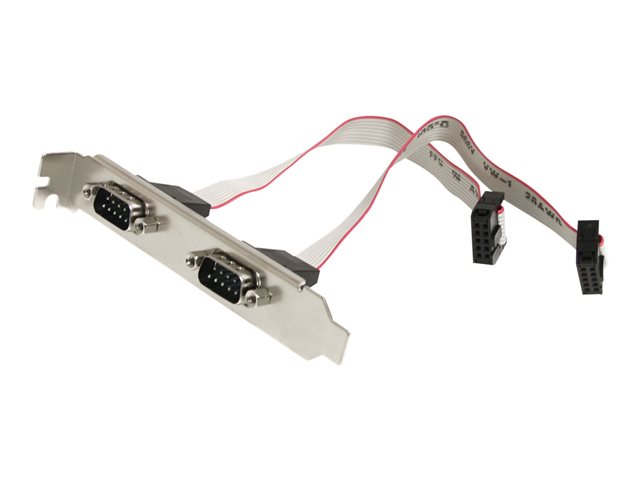

- 2 x RS-232 - 9 pin D-Sub (DB-9) ¦ 2 x RS-232 - 9 pin D-Sub (DB-9) (on bracket)
- Compatible Slots
- 1 x PCI Express 1.1 x1
Manufacturer Warranty
- Service & Support
- Limited warranty - lifetime
Dimensions & Weight
- Width
- 1.9 cm
- Depth
- 13 cm
- Height
- 12 cm
- Weight
- 80 g
Processor / Memory
- Processor
- 1 x MosChip Semiconductor MCS9904CV-AA
Miscellaneous
- Included Accessories
- 4 x low-profile bracket
- Compliant Standards
- FCC, RoHS
Software / System Requirements
- OS Required
- Linux, Microsoft Windows Server 2008 R2, Microsoft Windows Vista (32/64 bits), Microsoft Windows 7 (32/64 bits), Microsoft Windows XP (32/64 bits), Microsoft Windows Server 2003 (32/64-bits), Windows 8 (32/64 bits), Windows 10 (32/64 bits)
