StarTech.com 4 Port PCI Express 2.0 SATA III 6Gbps RAID Controller Card with HyperDuo SSD Tiering - PCIe SATA 3 Controller Adapter (PEXSAT34RH) - storage controller (RAID) - SATA 6Gb/s - PCIe 2.0 x2

P154668P | PEXSAT34RH

Free delivery

  • Quick Start Guide
  • User Manual
  • Data Transfer Rate - 6 GBps
  • RAID Level - RAID 0, RAID 1, RAID 10, JBOD
  • Supported Devices - Disk array (RAID)
  • Dimensions (WxDxH) - 12 cm x 7 cm x 2 cm
  • Manufacturer's Logo
Business Price Promise

Buy from us safe in the knowledge you’ve paid a great price.

If you find Argos, John Lewis, AO.com or eBuyer.com has the same product at a cheaper price, including voucher offers, we’ll match it – even up to 14 days after purchase.

Learn more
Product information

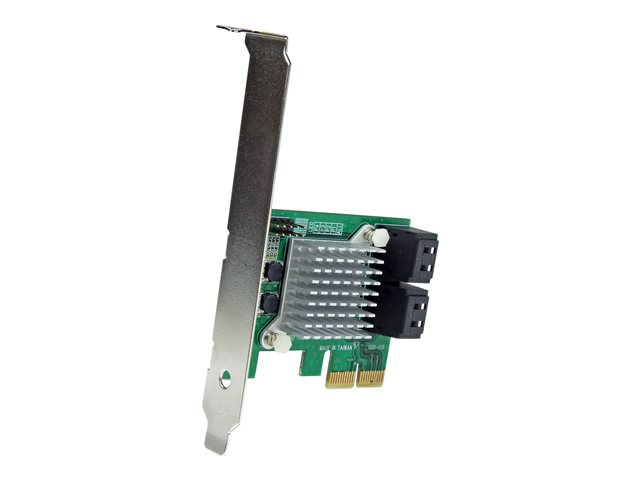

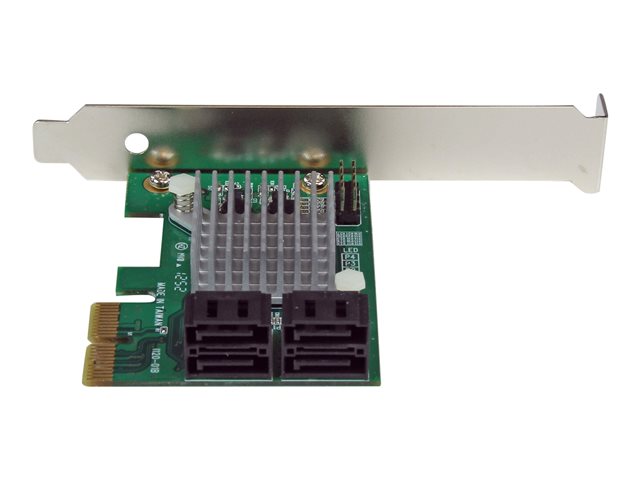

Compatability Add 4 Internal SATA III (6Gbps) ports to a computer through a PCI Express x2 slot. The PEXSAT34RH 4-Port PCI Express 2.0 SATA Controller Card with HyperDuo adds 4 AHCI SATA III ports to a computer through a PCIe slot (x2), delivering multiple internal 6Gbps connections for high-performance hard drives and Solid State Drives (SSDs).

Featuring HyperDuo technology, the SATA card offers SSD auto-tiering which lets you balance the performance advantages of SSD storage with the cost-effectiveness and large capacity of standard hard drives. By combining SSD and HDD drives into a single volume (up to 3 SSD + 1 HDD), HyperDuo discreetly works in the background to identify and move frequently accessed files to the faster SSD drive(s) for improved data throughput - up to 80% of SSD performance! (The HyperDuo automatic storage tiering feature is compatible with Windows XP, Vista, 7 and 8 only).

The PCIe SATA controller card supports Port Multiplier (PM), enabling multiple SATA drives to be connected to one port over a single cable, for a total of 7 drives (Up to 4 drives through PM on one port, and a single drive to the remaining 3 ports). Plus, the SATA controller card offers an effective hardware RAID solution, with native RAID (0, 1, 1+0) support.

StarTech.com 4 Port PCI Express 2.0 SATA III 6Gbps RAID Controller Card with HyperDuo SSD Tiering - PCIe SATA 3 Controller Adapter (PEXSAT34RH) - Storage controller (RAID) - 4 Channel - SATA 6Gb/s - low profile - RAID 0, 1, 10, JBOD - PCIe 2.0 x2 - for P/N: ST521PMINT

View more
Specifications

Basic Specifications

Manufacturer's Part Number
PEXSAT34RH
EAN
0065030849951
Supported Devices
Disk array (RAID)
System Requirements
Linux, Apple MacOS X 10.6, Microsoft Windows Vista (32/64 bits), Microsoft Windows 7 (32/64 bits), Microsoft Windows XP (32/64 bits), Apple MacOS X Lion 10.7, Apple OS X 10.8 Mountain Lion, Windows 8 (32/64 bits), Windows 10 (32/64 bits)
Device Type
Storage controller (RAID) - plug-in card - low profile
Designed For
P/N: ST521PMINT
Bus Type
PCIe 2.0 x2
RAID Level
RAID 0, RAID 1, RAID 10, JBOD
Channel Qty
4
Dimensions (WxDxH)
12 cm x 7 cm x 2 cm
Manufacturer Warranty
2-year warranty
Interface Type
PCIe 2.0 x2
Weight
49 g
Data Transfer Rate
6 Gbit/s
Product Description
StarTech.com 4 Port PCI Express 2.0 SATA III 6Gbps RAID Controller Card with HyperDuo SSD Tiering - PCIe SATA 3 Controller Adapter (PEXSAT34RH) - storage controller (RAID) - SATA 6Gb/s - PCIe 2.0 x2
Model
StarTech.com 4 Port PCI Express 2.0 SATA III 6Gbps RAID Controller Card with HyperDuo SSD Tiering - PCIe SATA 3 Controller Adapter (PEXSAT34RH)
Interface
SATA 6Gb/s

Expansion / Connectivity

Interfaces
4 x SATA 6Gb/s - SATA (internal)

Environmental Parameters

Min Operating Temperature
5 °C
Max Operating Temperature
50 °C
Humidity Range Operating
20 - 80% (non-condensing)

Compatibility Information

Designed For
P/N: ST521PMINT

General

Device Type
Storage controller (RAID) - plug-in card - low profile
Host Bus
PCIe 2.0 x2

Manufacturer Warranty

Service & Support
Limited warranty - 2 years

Storage Controller

Interface
SATA 6Gb/s
Data Transfer Rate
6 Gbit/s
Supported Devices
Disk array (RAID)
Channel Qty
4
RAID Level
RAID 0, RAID 1, RAID 10, JBOD
Processor
Marvell 88SE9230

Dimensions & Weight

Width
12 cm
Depth
7 cm
Height
2 cm
Weight
49 g

Miscellaneous

Included Accessories

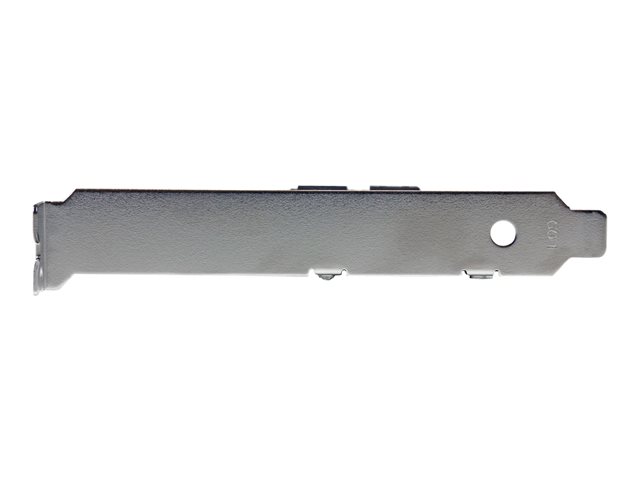

Low-profile bracket
Compliant Standards
FCC, RoHS

Software / System Requirements

OS Required
Linux, Apple MacOS X 10.6, Microsoft Windows Vista (32/64 bits), Microsoft Windows 7 (32/64 bits), Microsoft Windows XP (32/64 bits), Apple MacOS X Lion 10.7, Apple OS X 10.8 Mountain Lion, Windows 8 (32/64 bits), Windows 10 (32/64 bits)
