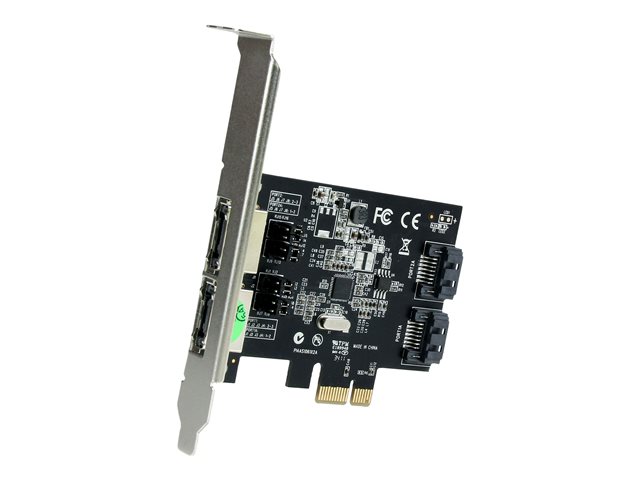

StarTech.com 2 Port PCI Express SATA 6 Gbps eSATA Controller Card - Dual Port PCIe SATA III Card - 2 Int/2 Ext - SATA III 6Gbps (PEXESAT322I) - storage controller - SATA 6Gb/s / eSATA 6Gb/s - PCIe x1
- P149105P | PEXESAT322I
Spend £40+ ex VAT for free delivery
- Data Transfer Rate - 600 MBps
- Dimensions (WxDxH) - 6.7 cm x 12.1 cm x 8 cm
- Interface Type - PCIe x1
What you'll need to make it even better
Business Price Promise
Buy from us safe in the knowledge you’ve paid a great price.
If you find Argos, John Lewis, AO.com or eBuyer.com has the same product at a cheaper price, including voucher offers, we’ll match it – even up to 14 days after purchase.
Learn more
Product information
Add 2 external or internal SATA 6 Gbps ports to a computer, through a PCI Express slot. The PEXESAT322I PCI Express SATA III Controller Card (6 Gbps) gives you the option to add 2 internal or external SATA ports to your computer, through a single PCI Express (x1) card slot. The card features on board jumper selection, which enables you to configure the card to provide 2 internal or external SATA III ports, or one of each, as needed.
The SATA III card features Port Multiplier (PM) support on each port, which allows multiple drives to be connected over a single cable when necessary to maximize the number of SATA device connections while reducing the amount of cabling required.
The card is fully compliant with the SATA revision 3.0 specification (up to 6 Gbps of data bandwidth), enabling you to utilize the speeds of high performance hard drives and Solid State Drives (SSD), as well as SATA-based optical drives (CD-ROM, DVD-ROM, Blu-Ray).
StarTech.com 2 Port PCI Express SATA 6 Gbps eSATA Controller Card - Dual Port PCIe SATA III Card - 2 Int/2 Ext - SATA III 6Gbps (PEXESAT322I) - Storage controller - 2 Channel - SATA 6Gb/s / eSATA 6Gb/s - low profile - PCIe x1 - for P/N: S251SMU33EP, S3520BU33ER, S355BU33ERM, ST521PMINT
Specifications
Basic Specifications
- Manufacturer's Part Number
- PEXESAT322I
- EAN
- 0163120537860
- System Requirements
- Microsoft Windows Server 2008 R2, Microsoft Windows Vista (32/64 bits), Microsoft Windows 7 (32/64 bits), Microsoft Windows XP (32/64 bits), Microsoft Windows Server 2003 (32/64-bits), Windows 8 (32/64 bits), Windows 10 (32/64 bits)
- Device Type
- Storage controller - plug-in card - low profile
- Designed For
- P/N: S251SMU33EP, S3520BU33ER, S355BU33ERM, ST521PMINT
- Bus Type
- PCIe x1
- Channel Qty
- 2
- Dimensions (WxDxH)
- 9.2 cm x 12.1 cm x 2 cm
- Manufacturer Warranty
- 2-year warranty
- Controller Interface Type
- Serial ATA-600 / eSATA-600
- Interface Type
- PCIe x1
- Weight
- 48 g
- Data Transfer Rate
- 6 Gbit/s
- Product Description
- StarTech.com 2 Port PCI Express SATA 6 Gbps eSATA Controller Card - Dual Port PCIe SATA III Card - 2 Int/2 Ext - SATA III 6Gbps (PEXESAT322I) - storage controller - SATA 6Gb/s / eSATA 6Gb/s - PCIe x1
- Model
- StarTech.com 2 Port PCI Express SATA 6 Gbps eSATA Controller Card - Dual Port PCIe SATA III Card - 2 Int/2 Ext - SATA III 6Gbps (PEXESAT322I)
- Interface
- SATA 6Gb/s / eSATA 6Gb/s
Expansion / Connectivity
- Interfaces
- 2 x eSATA 6Gb/s - eSATA (external) ¦ 2 x SATA 6Gb/s - SATA (internal)
- Compatible Slots
- 1 x PCI Express x1
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 50 °C
- Humidity Range Operating
- 5 - 85%
Compatibility Information
- Designed For
- P/N: S251SMU33EP, S3520BU33ER, S355BU33ERM, ST521PMINT
General
- Device Type
- Storage controller - plug-in card - low profile
- Host Bus
- PCIe x1
Manufacturer Warranty
- Service & Support
- Limited warranty - 2 years
Storage Controller
- Interface
- SATA 6Gb/s / eSATA 6Gb/s
- Data Transfer Rate
- 6 Gbit/s
- Channel Qty
- 2
Dimensions & Weight
- Width
- 9.2 cm
- Depth
- 12.1 cm
- Height
- 2 cm
- Weight
- 48 g
Miscellaneous
- Included Accessories
- Low-profile bracket
- Cables Included
- 1 x Serial ATA cable
- Features
- Native Command Queuing (NCQ)
- Compliant Standards
- FCC, RoHS
Software / System Requirements
- Software Included
- Drivers & Utilities
- OS Required
- Microsoft Windows Server 2008 R2, Microsoft Windows Vista (32/64 bits), Microsoft Windows 7 (32/64 bits), Microsoft Windows XP (32/64 bits), Microsoft Windows Server 2003 (32/64-bits), Windows 8 (32/64 bits), Windows 10 (32/64 bits)
